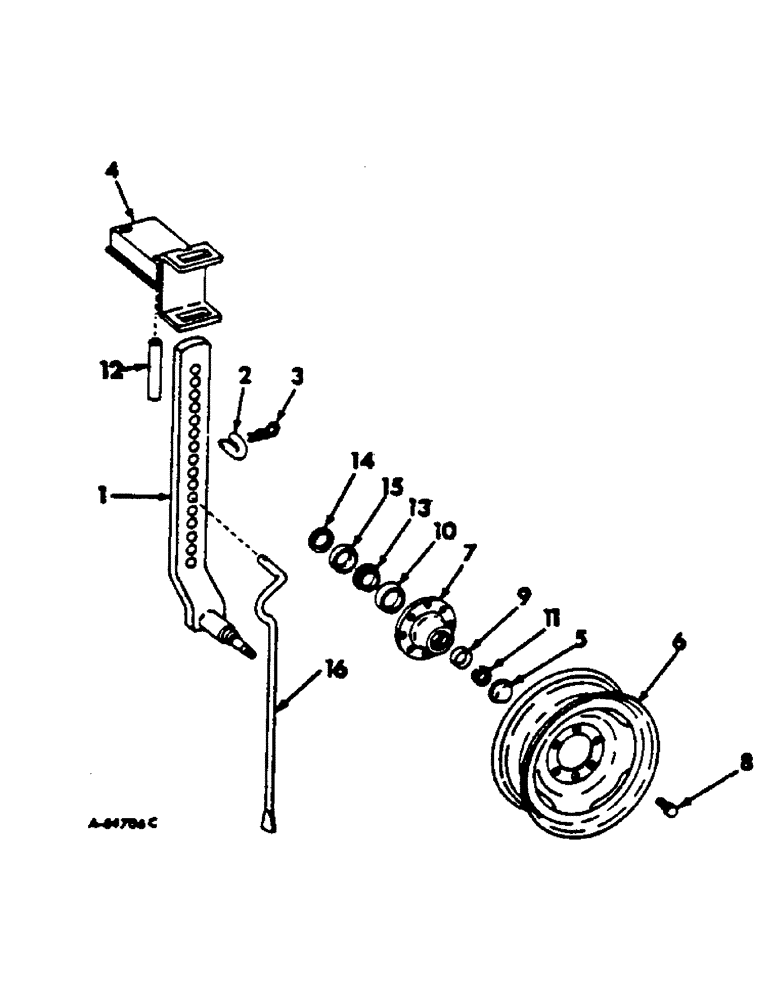

Запчасти Case IH 700 (AG-15) - GAUGE WHEEL

1

484996R2

SUPPORT ASSY.

STANDARD ASSY

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

69442D

NUT

3/4-16 slt-hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

2

520620R1

AXLE PIN

PIN, standard retaining

1шт.

3

520175R1

CLIP

PIN, quick attachable cot.

2шт.

4

547221R1

BRACKET

ASSY, replaces 482945R94

1шт.

21692R1

BOLT,Hex, 5/8" - 11 x 10", Gr 5

SCREW, 5/8-11 x 10 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

5

663908R1

CAP

hub

1шт.

6

481344R91

WHEEL

14 x 8 KB rim for 9.50 x 14 tire, for 5, 6, 7 & 8 furrow plows

1шт.

6

622192R91

WHEEL

15 x 5 KB rim for 6.70 x 15 tire, for 4 & 7 furrow plows

1шт.

7

465493R2

HUB

wheel

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 UNF lub

1шт.

8

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 x 15/16 conical hd hub

6шт.

9

371883R1

BEARING CUP

Outer

1шт.

10

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

1шт.

11

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

1шт.

12

484994R1

SPACER

bracket

1шт.

21692R1

BOLT,Hex, 5/8" - 11 x 10", Gr 5

SCREW, 5/8-11 x 10 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

13

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, inner cone

1шт.

14

667599R91

OIL SEAL

wheel hub oil

1шт.

15

667564R1

RING

SLEEVE, oil seal wear

1шт.

16

490680R1

ROD

BAR, gauge wheel

1шт.
