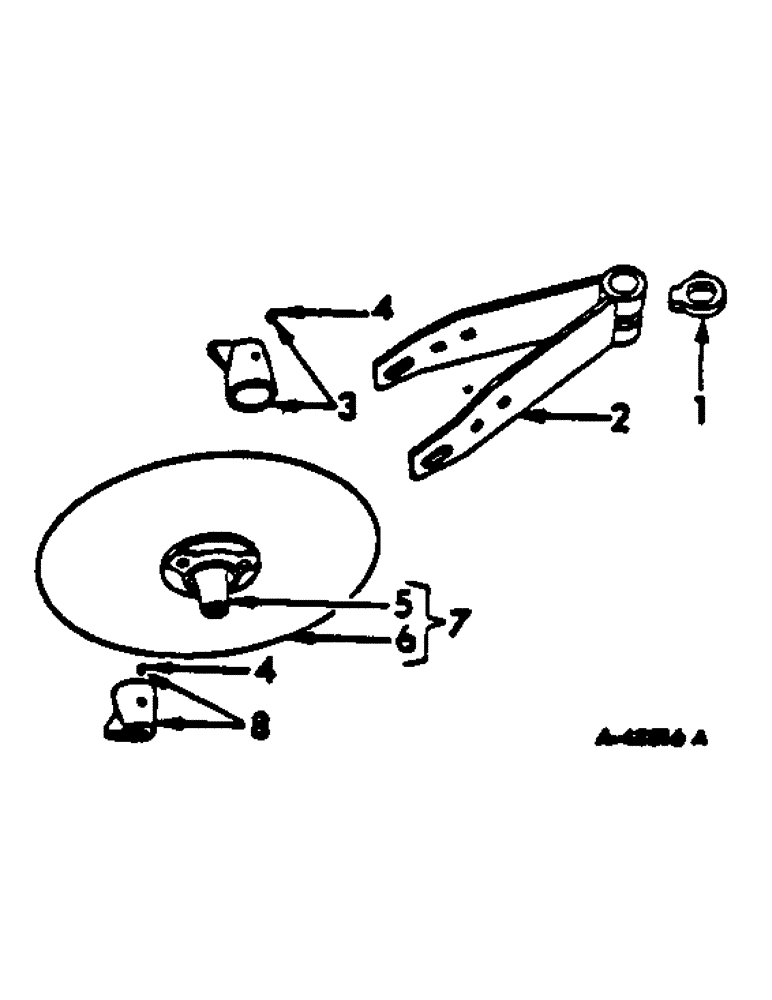

Запчасти Case IH 700 (AG-09) - ROLLING COLTER, YOKE TYPE, ONE PER FURROW

1

519345R31

COLLAR

ASSY, stop

1шт.

20900R1

SET SCREW

1/2-13 x 1 C-Z sq-hd cup-pt set

1шт.

2

522252R93

YOKE

colter

1шт.

21469R1

BOLT,Hex, 1/2" - 13 x 7 3/4", Gr 5

SCREW, 1/2-13 x 7-3/4 C-Z hex-hd cap

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

1шт.

3

521157R11

BUSHING

W/LUB FITTING, LH

1шт.

4

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 drive type str lub

2шт.

5

468727R1

HUB

2шт.

45-528

RIVET,But Hd, 5/16" x 1 3/4"

5/16 x 1-3/4 rd-hd

6шт.

6

523026R2

DISC

BLADE, notched, 17 in. dia

1шт.

6

468726R1

COULTER

BLADE, notched, 18 in. dia

1шт.

6

523025R2

HALF BLADE

BLADE, plain, 17 in. dia

1шт.

6

468725R1

COULTER

BLADE, plain, 18 in. dia.

1шт.

6

469191R3

BLADE

rippled edge, 17 in. dia.

1шт.

7

478721R91

BLADE

W/HUBS, notched, 17 in. dia.

1шт.

7

468726R11

NO LONGER SERVICED

BLADE W/HUBS, notched, 18 in. dia.

1шт.

7

478720R91

BLADE

W/HUBS, plain, 17 in. dia.

1шт.

7

468725R11

COULTER

BLADE W/HUBS, plain, 18 in. dia.

1шт.

7

469191R31

COULTER

BLADE W/HUBS, rippled edge, 17 in. dia.

1шт.

8

521158R11

BUSHING

W/LUB FITTING, RH

1шт.
