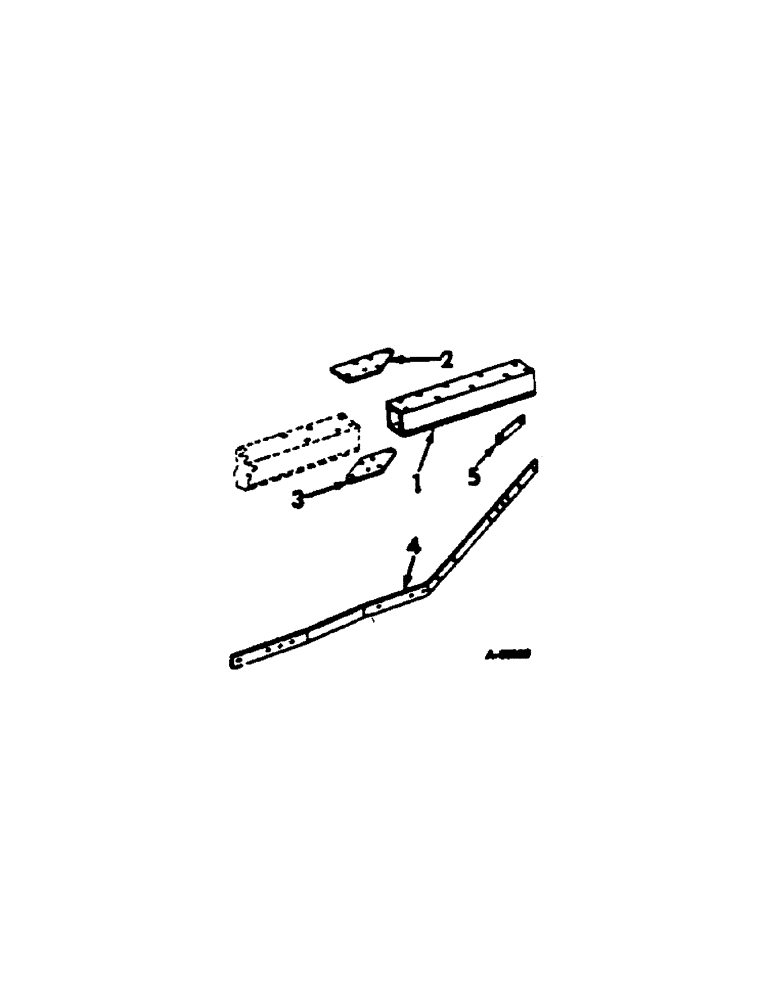

Запчасти Case IH 700 (AG-07) - MAIN FRAME EXTENSION

1

482912R91

TUBE ASSY, main frame rear extension, 16 in. plows

1шт.

1

484961R1

TUBE ASSY, main frame rear extension, 14 in. plows

1шт.

1

489865R1

TUBE ASSY, main frame rear extension, 18 in. plows

1шт.

2

482915R1

BAR

PLATE, frame splice top, 16 & 18 in. plows

1шт.

2

484964R1

PLATE, frame splice top, 14 in. plows

1шт.

3

482916R1

BAR

PLATE, frame splice bottom, 16 & 18 in. plows

1шт.

3

484965R1

PLATE, frame splice bottom, 14 in. plows

1шт.

21702R1

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

SCREW, 3/4-10 x 8-1/2 C-Z hex-hd cap

6шт.

280954

NUT,3/4"-10, G5

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

4

482781R1

SUPPORT

BAR, rail extension, 16 in. plows

1шт.

4

484951R1

BAR, rail extension, 14 in. plows, for spring trip and shear pin trip

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

4шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

280954

NUT,3/4"-10, G5

5шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 C-Z hex-hd cap

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

489851R1

SUPPORT

BRACE, rail extension, 18 in. plows

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

4шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

280954

NUT,3/4"-10, G5

5шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 znd hex-hd cap, 4 for spring trip, 1 for automatic trip

1шт.

19865R1

BOLT,Hex, 5/8" - 11 x 7 3/4", Gr 5

SCREW, 5/8-11 x 7-3/4 C-Z hex-hd cap, 2 for automatic trip

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1 per screw 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 1 per screw

1шт.

5

482777R1

BAR

beam spacer

1шт.
