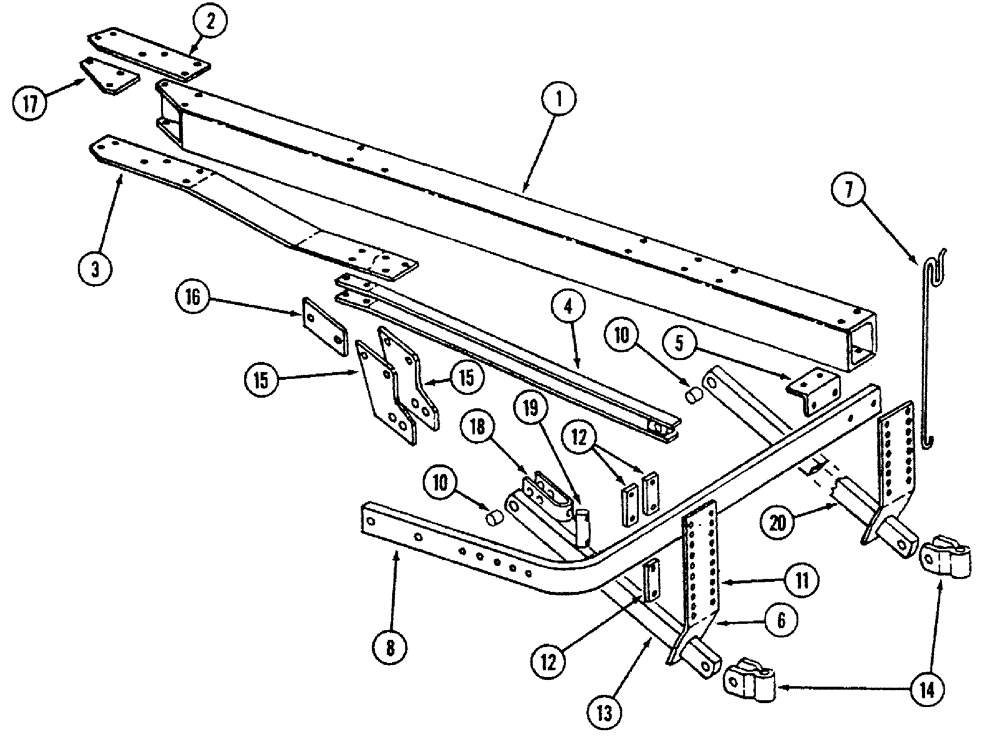

Запчасти Case IH 700 (9-02) - PULL FRAME AND SPREADER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
55268C2
FRAME ASSY
FRAME ASSEMBLY - pull, 7 furrow 16 inch
1шт.
1
56663C1
FRAME
ASSEMBLY - pull, 7 and 8 furrow 18 inch
1шт.
2
55261C1
PLATE
- splice
1шт.
55260C1
SPACER
- pull beam
1шт.
413-12128
BOLT,Hex, 3/4" - 10 x 8", Gr 5
- hex, 3/4 NC x 8 inch
7шт.
231-42112
NUT,3/4"-10, GB
NUT - hex lock, 3/4 inch NC
7шт.
3
55262C1
PLATE
- truss
1шт.
413-12160
BOLT,Hex, 3/4" - 10 x 10", Gr 5
- hex, 3/4 NC x 10 inch
3шт.
492-11075
LOCK WASHER,3/4"
3/4"
3шт.
425-1012
NUT,3/4"-10, G5
3шт.
4
491615R1
SUPPORT
STRAP ASSEMBLY - truss, 7 furrow 16 inch (Built 1978 and after)
1шт.
426-1664
BOLT,Hex, 1" - 8 x 4", Gr 8
1шт.
23443R1
LOCK NUT,1"-8, GC
NUT - hex, 1 inch NC
1шт.
4
492380R1
SUPPORT
STRAP ASSEMBLY - truss, 7 and 8 furrow 18 inch
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
- hex, 5/8 NC x 2 inch
2шт.
425-1010
NUT,5/8"-11, G5
2шт.
5
491620R1
ANGLE
- spreader
1шт.
413-12120
BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5
- hex, 3/4 NC x 7-1/2 inch
2шт.
413-1264
BOLT,Hex, 3/4" - 10 x 4", Gr 5
- hex, 3/4 NC x 4 inch
1шт.
413-1268
BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5
- hex, 3/4 NC x 4-1/4 inch
1шт.
492-11075
LOCK WASHER,3/4"
3/4"
4шт.
425-1012
NUT,3/4"-10, G5
4шт.
6
491621R2
SUPPORT
PLATE - hitch bar, left
1шт.
413-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 5
- hex, 3/4 NC x 2 inch
2шт.
492-11075
LOCK WASHER,3/4"
3/4"
2шт.
425-1012
NUT,3/4"-10, G5
2шт.
7
491622R1
ROD
SUPPORT - hose
1шт.
495-81042
WASHER,25/32" x 1 1/2" x .120"
- flat, 25/32 x 1-1/2 x 7/64 inch
1шт.
8
131587C1
SPACER
SPREADER - 7 furrow 16 inch
1шт.
Replaces 491623R1 by also ordering 73219C91
1шт.
8
131588C1
SUPPORT
SPREADER - 7 and 8 furrow 18 inch
1шт.
Replaces 492384R1 by also ordering 73219C91
1шт.
426-1256
BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8
- hex, 3/4 NC x 3-1/2 inch, Grade 8
1шт.
426-1264
BOLT,Hex, 3/4" - 10 x 4", Gr 8
- hex, 3/4 NC x 4 inch, Grade 8
1шт.
492-11075
LOCK WASHER,3/4"
3/4"
2шт.
425-1012
NUT,3/4"-10, G5
2шт.
73219C91
PACKAGE
- spreader service, Inc. Bracket and hardware
1шт.
131590C1
BRACKET
- rail bar
1шт.
131589C1
BAR
PIN - trunnion bar
1шт.
471350R1
BAR
CLIP
1шт.
88421
BOLT,Hex, 3/4" - 10 x 5", Gr 5
2шт.
231-42112
NUT,3/4"-10, GB
NUT - hex lock, 3/4 inch NC
2шт.
10
M74461
SPACER,26.6mm ID x 33.4mm OD x 19mm L
Support pin 1" Pipe x 3/4"
2шт.
11
540038R1
PLATE
- hitch bar, right
1шт.
12
471350R1
BAR
CLIP - pivot bracket
2шт.
413-1260
BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5
- hex, 3/4 NC x 3-3/4 inch
4шт.
492-11075
LOCK WASHER,3/4"
3/4"
4шт.
425-1012
NUT,3/4"-10, G5
4шт.
13
540034R1
BAR
- hitch (For 7 furrow 16 inch)
2шт.
13
540034R1
BAR
- hitch (For 7 and 8 furrow 18 inch)
1шт.
426-1672
BOLT,Hex, 1" - 8 x 4-1/2", Gr 8
- hex, 1 NC x 4-1/2 inch
2шт.
23443R1
LOCK NUT,1"-8, GC
NUT - hex lock, 1 inch NC
2шт.
14
540062R1
CLEVIS
ASSEMBLY - hitch
2шт.
426-1664
BOLT,Hex, 1" - 8 x 4", Gr 8
2шт.
326-1688
BOLT,Hex, 1" - 8 x 5-1/2", Gr 8
1шт.
426-1672
BOLT,Hex, 1" - 8 x 4-1/2", Gr 8
- hex, 1 NC x 4-1/2 inch
1шт.
23443R1
LOCK NUT,1"-8, GC
NUT - hex lock, 1 inch NC
4шт.
15
56657C2
PLATE
- hitch bar, inner
1шт.
15
56658C2
PLATE
- hitch bar, outer
1шт.
16
491580R1
BAR
SPACER - plate
1шт.
414-1236
BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5
SCREW - hex, 3/4 x 2-1/4 inch
1шт.
413-1252
BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5
SCREW - hex, 3/4 x 3-1/4 inch
1шт.
492-11075
LOCK WASHER,3/4"
3/4"
2шт.
425-1012
NUT,3/4"-10, G5
1шт.
17
55260C1
SPACER
- pull beam
1шт.
18
131590C1
BRACKET
- rail bar
1шт.
413-1256
BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5
2шт.
492-11075
LOCK WASHER,3/4"
3/4"
2шт.
425-1012
NUT,3/4"-10, G5
2шт.
19
131589C1
BAR
PIN - trunnion bar
1шт.
88421
BOLT,Hex, 3/4" - 10 x 5", Gr 5
2шт.
231-42112
NUT,3/4"-10, GB
NUT - hex lock, 3/4 inch NC
2шт.
20
56666C2
BAR
- hitch, For 7 and 8 furrow 18 inch, (Also order 1 bar 540034R1)
1шт.
Выбрано товаров: 74
