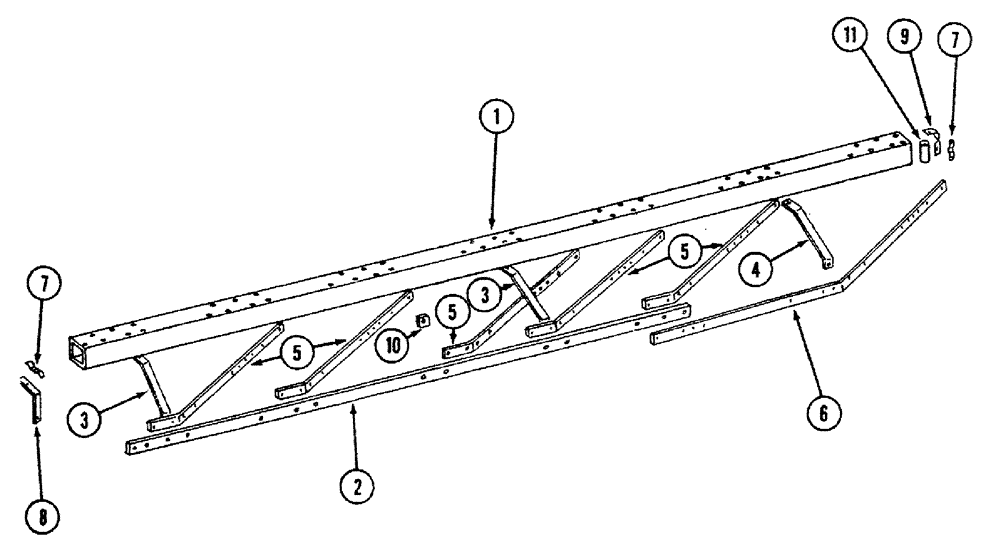

Запчасти Case IH 700 (9-01) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

55284C91

FRAME

ASSEMBLY - main, 7 furrow 16 inch, Inc. Decal

1шт.

122878C1

DECAL

- caution

1шт.

1

56649C91

FRAME

ASSEMBLY - main, 7 furrow 18 inch, Inc. Decal

1шт.

122878C1

DECAL

- caution

1шт.

1

56652C91

FRAME

ASSEMBLY - main, 8 furrow 18 inch, Inc. Decal

1шт.

122878C1

DECAL

- caution

1шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

SCREW - hex, 5/8 x 8-1/4 inch (For 7 and 8 furrow)

16шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

16шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

SCREW - hex, 5/8 x 8-1/4 inch (For 8 and 9 furrow)

18шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

18шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

SCREW - hex, 5/8 x 7-3/4 inch (For 7 furrow automatic)

8шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

8шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

SCREW - hex, 5/8 x 7-3/4 inch (For 8 furrow automatic)

9шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

9шт.

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 x 6-1/2 inch (For 7 and 8 furrow)

4шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

4шт.

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 x 6-1/2 inch (For 8 and 9 furrow)

5шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

5шт.

2

482762R1

BAR

- side rail, 7 furrow 16 inch

1шт.

2

56653C1

BAR

- side rail, 7 furrow 18 inch

1шт.

2

56654C1

BAR

- side rail, 8 furrow 18 inch

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

7шт.

492-11075

LOCK WASHER,3/4"

3/4"

7шт.

425-1012

NUT,3/4"-10, G5

7шт.

3

55265C3

BRACE

- main frame, 7 furrow 16 inch

2шт.

3

56655C3

BRACE

- main frame, 7 furrow 18 inch

2шт.

3

56655C3

BRACE

- main frame, 8 furrow 18 inch

3шт.

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch (For 7 furrow)

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch (For 8 furrow)

3шт.

492-11075

LOCK WASHER,3/4"

3/4"

3шт.

425-1012

NUT,3/4"-10, G5

3шт.

4

55266C3

BRACE

- extension frame, 7 furrow 16 inch

1шт.

4

56656C3

BRACE

- extension frame, 7 and 8 furrow 18 inch

1шт.

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

- hex, 3/4 NC x 5-1/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

5

482780R2

SUPPORT

BAR - short rail (For 7 furrow)

5шт.

5

482780R2

SUPPORT

BAR - short rail (For 8 furrow)

6шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch (For 7 furrow automatic trip)

5шт.

492-11075

LOCK WASHER,3/4"

3/4"

5шт.

425-1012

NUT,3/4"-10, G5

5шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch (For 8 furrow automatic trip)

6шт.

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

425-1012

NUT,3/4"-10, G5

6шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

(For 7 furrow automatic trip) Hex, 3/4"-10 x 3 1/2", G5

5шт.

492-11075

LOCK WASHER,3/4"

3/4"

5шт.

425-1012

NUT,3/4"-10, G5

5шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

(For 8 furrow automatic trip) Hex, 3/4"-10 x 3 1/2", G5

6шт.

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

425-1012

NUT,3/4"-10, G5

6шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

(For 7 furrow toggle trip) Hex, 3/4"-10 x 3 1/2", G5

10шт.

492-11075

LOCK WASHER,3/4"

3/4"

10шт.

425-1012

NUT,3/4"-10, G5

10шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

(For 8 furrow toggle trip) Hex, 3/4"-10 x 3 1/2", G5

12шт.

492-11075

LOCK WASHER,3/4"

3/4"

12шт.

425-1012

NUT,3/4"-10, G5

12шт.

6

482781R2

SUPPORT

BAR - rail extension, 7 furrow 16 inch

1шт.

6

489851R2

SUPPORT

BAR - rail extension, 7 and 8 furrow 18 inch

1шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- hex, 3/4 NC x 4-3/4 inch (For 7 furrow)

1шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- hex, 3/4 NC x 4-3/4 inch (For 8 furrow)

2шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- hex, 3/4 NC x 3-3/4 inch (For automatic trip)

2шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- hex, 3/4 NC x 3-3/4 inch (For toggle trip)

1шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch (For automatic trip)

1шт.

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch (For 7 furrow)

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

5шт.

425-1012

NUT,3/4"-10, G5

5шт.

7

515030R1

CLAMP

- hose

2шт.

8

486693R1

REINFORCEMENT

STRAP - front hose support

1шт.

9

486694R1

SUPPORT

CLIP - hose

1шт.

412-624

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT - round head square neck, 3/8 x 1-1/2 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

10

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (For 7 furrow)

13шт.

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (For 8 furrow)

15шт.

11

517668R1

SPACER,3/4" Pipe x 5 1/8"

- 3/4 x 5-1/8 inch standard pipe

1шт.

495-81182

WASHER,21/32" x 1 1/4" x .060"

- flat, 31/32 x 1-1/4 x 3/64 inch

3шт.
