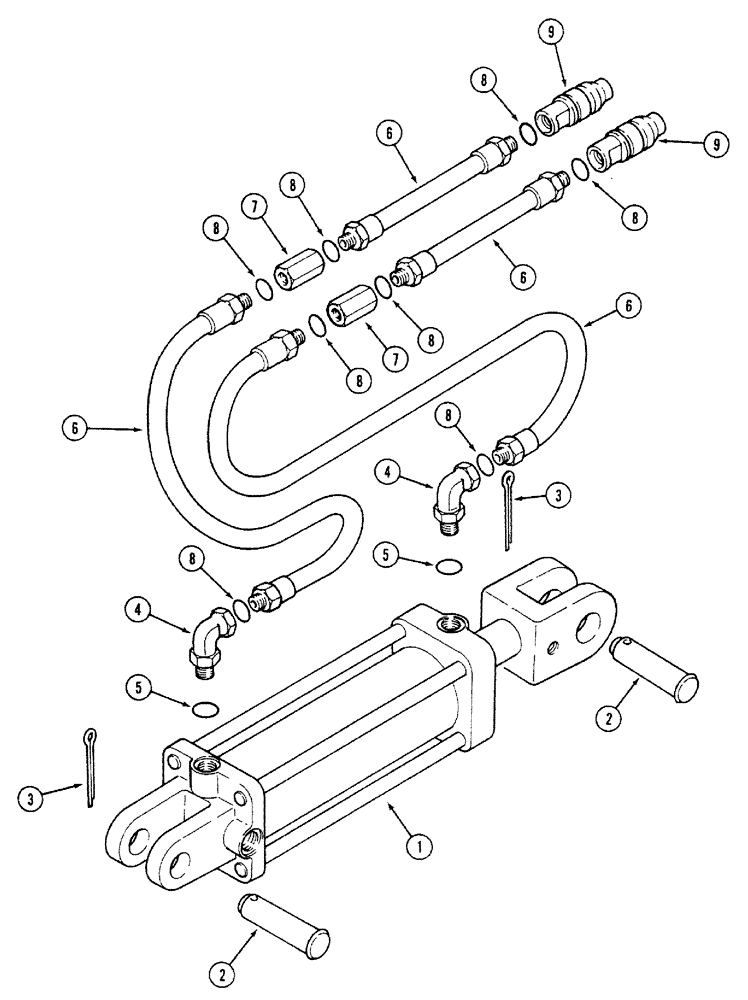

Запчасти Case IH 700 (8-02) - REAR HYDRAULIC EQUIPMENT, 3-1/2 X 8 INCH CYLINDER (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER - hydraulic, 3-1/2 x 8 inch

1шт.

See Figure 8-04

1шт.

2

810751C1

PIN

- headed, 1 x 3-1/2 inch

2шт.

3

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

2шт.

5

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

6

129765C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 200 inch long, 7 furrow 16 inch

4шт.

6

129765C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 200 inch long, 7 furrow 18 inch

2шт.

6

1268131C2

HYDRAULIC HOSE,9.53mm ID x 5840mm L

HOSE - hydraulic, 3/8 x 230 inch long, 8 furrow 18 inch

4шт.

6

1268131C2

HYDRAULIC HOSE,9.53mm ID x 5840mm L

HOSE - hydraulic, 3/8 x 230 inch long, 7 furrow 18 inch

2шт.

7

584802R1

CONNECTOR, ELEC

UNION - straight, 7/8-14 inch

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

8шт.

9

1272399C2

QUICK MALE COUPLING

COUPLER - poppet type, 7/8-14 thread

1шт.

9

544787R91

COUPLING, BREAK AWAY

COUPLER - self sealing type, 7/8-14 thread

1шт.

9

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing type, ISO standard, 7/8-14 thread

1шт.

9

1285718C2

QUICK MALE COUPLING

COUPLER - self sealing type, ISO standard, 3/4-16 thread

1шт.

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 3/4-16 hose fitting to 7/8-14 thread

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 7/8-14 hose fitting to 3/4-16 coupling

1шт.

1282459C1

PACKAGE

KIT - coupler tag, color coded

1шт.
