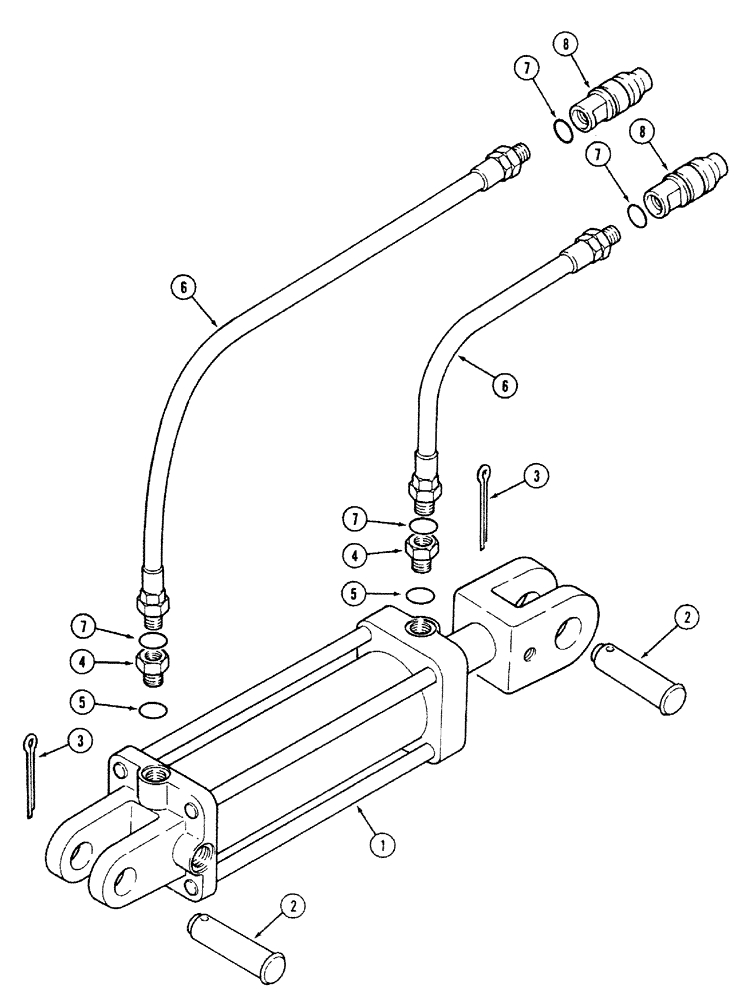

Запчасти Case IH 700 (8-01) - FRONT HYDRAULIC EQUIPMENT, 5 X 8 INCH CYLINDER (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER - hydraulic, 5 x 8 inch

1шт.

See Figure 8-03

1шт.

1337411C1

BUSHING

- cylinder

1шт.

2

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - headed, 1-1/4 x 3-1/4 inch

2шт.

3

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

4

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- hydraulic, flared tube, 3/8 inch

2шт.

5

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

6

1284303C1

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 3/8 x 145 inch

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

8

1272399C2

QUICK MALE COUPLING

COUPLER - poppet type, 7/8-14 thread

1шт.

8

1341843C1

QUICK MALE COUPLING

COUPLER - self sealing type, 7/8-14 thread

1шт.

8

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing type, ISO standard, 7/8-14 thread

1шт.

8

1285718C2

QUICK MALE COUPLING

COUPLER - self sealing type, ISO standard, 3/4-16 thread

1шт.

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 3/4-16 hose fitting to 7/8-14 coupling

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 7/8-14 hose fitting to 3/4-16 coupling

1шт.

1282459C1

PACKAGE

KIT - coupler tag, color coded

1шт.
