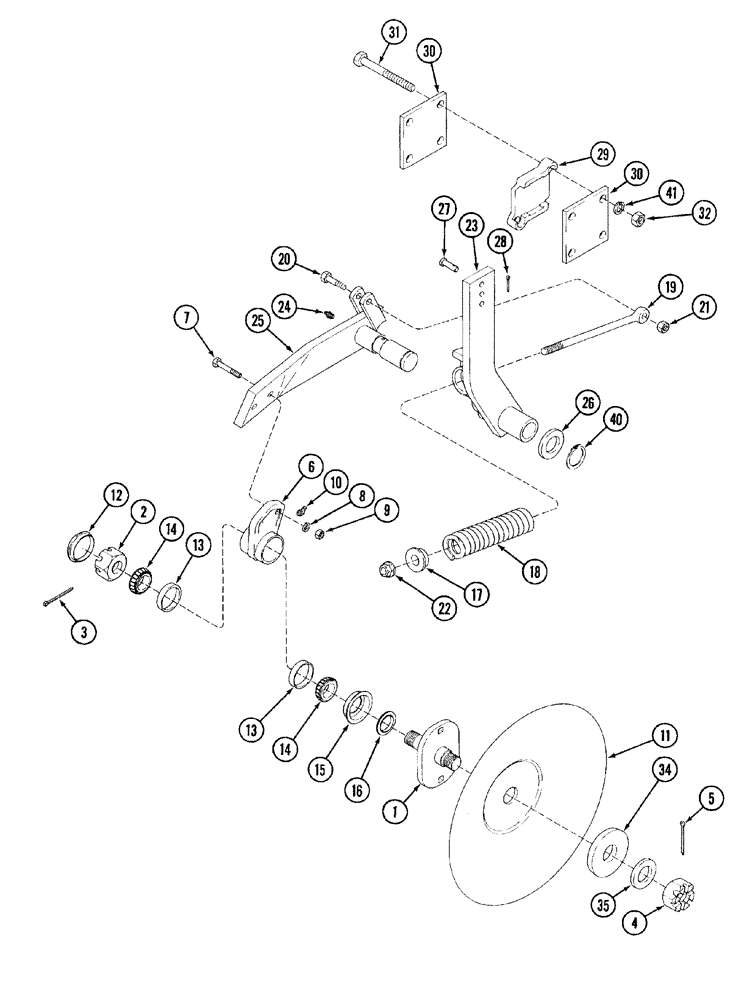

Запчасти Case IH 700 (9-19) - ROLLING COULTER, SPRING CUSHION TYPE WITH CRIMPLED COULTER BLADE (09) - CHASSIS/ATTACHMENTS

1

1995604C1

SPINDLE

- coulter

1шт.

2

519250R1

SLOTTED NUT

- hex, slotted, 1-1/4 inch NF

1шт.

3

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

4

519250R1

SLOTTED NUT

- hex, slotted, 1-1/4 inch NF

2шт.

5

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

1шт.

6

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING - bearing

1шт.

7

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

11

31232R2

DISC

DISK - solid, 508 x 6.5 mm

1шт.

11

31196R1

DISK HARROW

DISK - notched, 508 x 5 mm

1шт.

11

31217R2

DISC

DISK - solid, 559 x 6.5 mm

1шт.

11

31197R1

DISK HARROW

DISK - notched, 559 x 5 mm

1шт.

11

31395R1

DISK HARROW

DISK - notched, 457 x 4.5 mm

1шт.

11

31230R1

DISC

DISK - solid, 457 x 5 mm

1шт.

12

518842R1

CAP

- hub

1шт.

13

651817R1

BEARING CUP

- tapered roller

2шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, CONE - tapered roller

2шт.

15

472222R1

SLEEVE

- oil seal

1шт.

16

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

-oil

1шт.

17

487697R1

CENTERING RING

RETAINER - spring

1шт.

18

487698R1

SPRING

- cushion

1шт.

19

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

- 5/8 inch NC

1шт.

20

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

21

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self locking, 1/2 inch NC

1шт.

22

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

23

106574A1

SUPPORT ASSY.

STANDARD - bent

1шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

25

106575A1

SUPPORT ASSY.

ARM coulter

1шт.

26

87412143

WASHER

- arbor bolt

1шт.

27

439-1820

HEADED PIN,1/2" x 1 1/8"

PIN - headed, 1/2 x 2-1/4 inch

1шт.

28

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

29

61453C1

BLOCK

- adjusting

1шт.

30

61450C1

PLATE

- clamp

2шт.

31

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

32

425-1010

NUT,5/8"-11, G5

4шт.

34

139773C1

WASHER

- end

1шт.

35

396-31131

WASHER,1 3/8" x 2 1/2" x 1/4", HDN

- flat, 1-3/8 x 2-1/2 x 1/4 inch, hardened

1шт.

40

100-11162

SNAP RING,#162, Ext

Ring, Snap, #162, Ext

1шт.

41

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

4шт.
