Запчасти Case IH 700 (9-18) - ROLLING COLTER, SHEAR BOLT TYPE (09) - CHASSIS/ATTACHMENTS

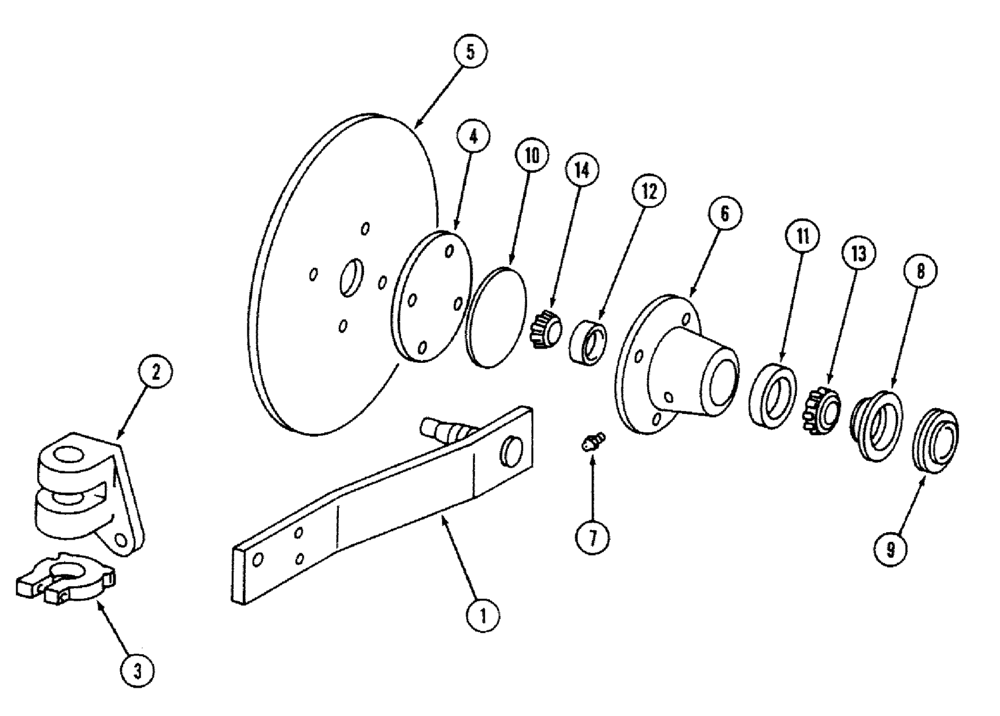

Схема запчастей Case IH 700 - (9-18) - ROLLING COLTER, SHEAR BOLT TYPE (09) - CHASSIS/ATTACHMENTS
8
12
1
13
14
6
7
2
10
11
3
9
5
4

Артикул

Название

Примечание

Количество

1

112540C1

ARM

ASSEMBLY - colter

1шт.

69442D

NUT

- slotted hex, 3/4 inch NF

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, 25/32 x 1/4 x 1/8 inch

1шт.

86523851

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

2

462273R3

SUPPORT ASSY.

BEARING - colter arm, right

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

1шт.

9413948

NUT,5/8"-11, GA

- lock, 5/8 inch NC

1шт.

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.

3

112844C1

COLLAR CLAMP

CLAMP - colter stop, collar

1шт.

413-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

- hex, 7/16 NC x 2-1/2 inch

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.

432-2036

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

1шт.

4

112524C1

COVER

- reinforcing plate

1шт.

5

112538C1

DISC

DISK - 22 inch, plain

1шт.

5

122567C1

DISC

DISK - 22 inch, ripple edge

1шт.

5

31399R1

NOTCHED DISK

DISK - 17 inch, notched, ripple edge

1шт.

6

122711C1

HUB

- furrow wheel

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (In wheel hub) 1/4"-28 x .56" lg, Self-Tap

1шт.

8

472222R1

SLEEVE

- oil seal

1шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

10

41-3044

PLUG,Exp, 2 3/4"

- expansion, 2-3/4 inch

1шт.

11

651817R1

BEARING CUP

CUP - bearing, inner

1шт.

12

651814R1

BEARING CUP

CUP - bearing, outer

1шт.

13

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, inner

1шт.

14

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer

1шт.

14

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

Выбрано товаров: 32
