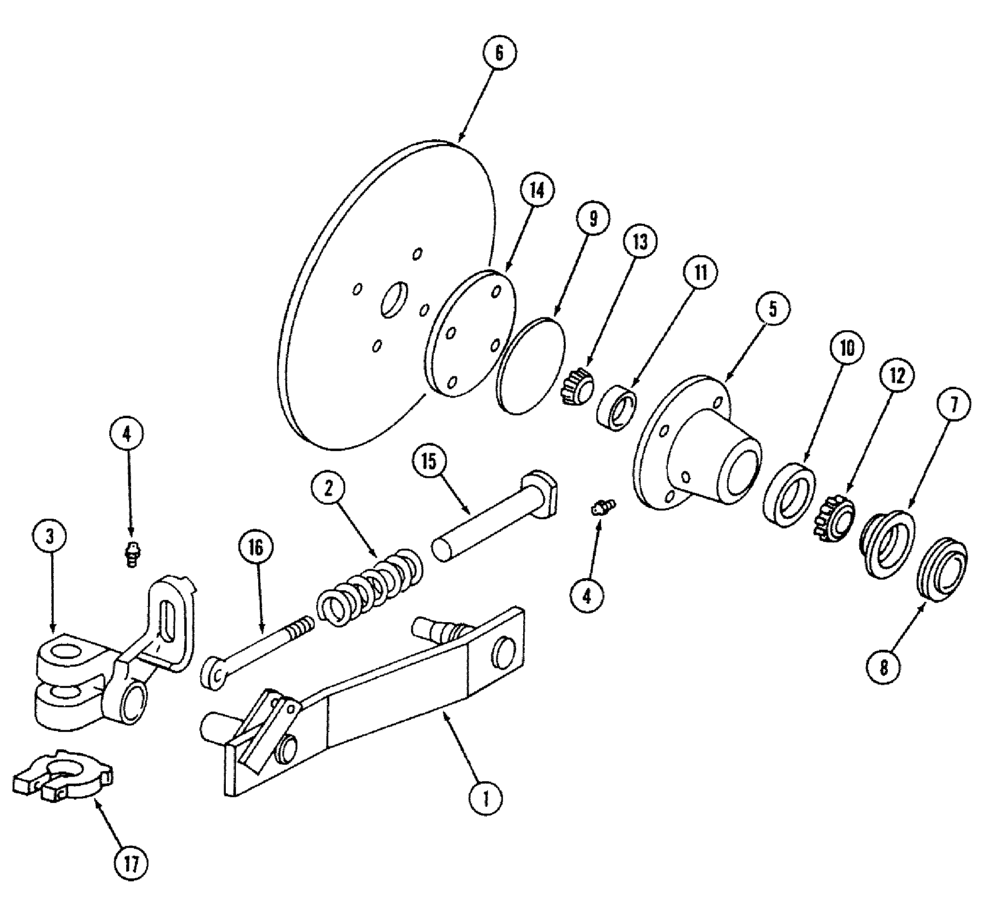

Запчасти Case IH 700 (9-17) - ROLLING COLTER, CUSHION SPRING SIDE ARM (09) - CHASSIS/ATTACHMENTS

1

112535C1

ARM

ASSEMBLY - colter, right

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch

1шт.

69442D

NUT

- slotted hex, 3/4 inch NF

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, 25/32 x 1/4 x 1/8 inch

1шт.

86523851

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

2

112536C1

SPRING

- cushion

1шт.

3

122520C1

SUPPORT

- colter mounting, right

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

5

122711C1

HUB

- furrow wheel

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

112538C1

DISC

DISK - 22 inch, plain

1шт.

6

122567C1

DISC

DISK - 22 inch, ripple edge

1шт.

7

472222R1

SLEEVE

- oil seal

1шт.

8

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

9

172602

SUPPORT

- expansion, 2-3/4 inch

1шт.

10

651817R1

BEARING CUP

CUP - bearing, inner

1шт.

11

651814R1

BEARING CUP

CUP - bearing, outer

1шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, inner

1шт.

13

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer

1шт.

13

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

14

112524C1

COVER

- reinforcing plate

1шт.

15

109058C1

TUBE,16 - 22 mm ID, 35 mm OD

ASSEMBLY - spring adjusting (Replaces 112517C1)

1шт.

16

131669C1

BOLT

- spring eye (Replaces 122546C1)

1шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN - clevis, 1/2 x 1-3/4 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

17

112844C1

COLLAR CLAMP

CLAMP - colter stop, collar

1шт.

413-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

- 7/16 x 2-1/2 inch

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.

432-2036

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

1шт.
