Запчасти Case IH 700 (9-14) - ROLLING COLTER, CUSHION SPRING TYPE - HIGH LIFT (09) - CHASSIS/ATTACHMENTS

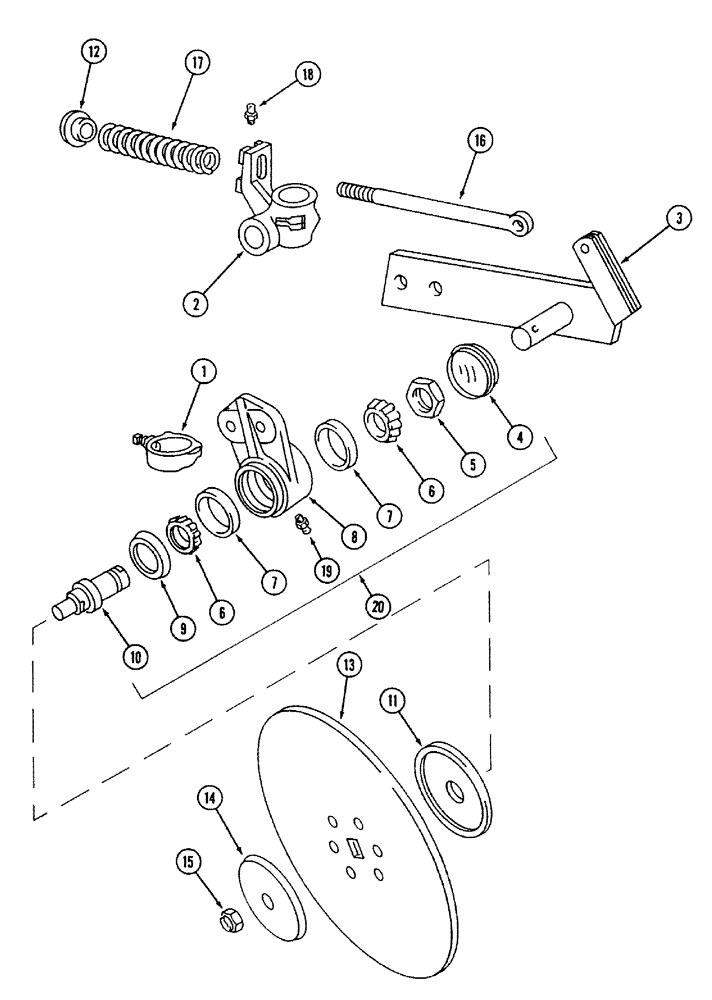

Схема запчастей Case IH 700 - (9-14) - ROLLING COLTER, CUSHION SPRING TYPE - HIGH LIFT (09) - CHASSIS/ATTACHMENTS
17
3
13
2
9
8
15
7
19
6
5
1
12
18
20
11
16
14
4
7
6
10

Артикул

Название

Примечание

Количество

1

523345R21

COLLAR CLAMP

STOP COLLAR - Inc. set screw

1шт.

708081

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

SCREW - set, square head, 1/2 NC x 1-1/4 inch, cup point

1шт.

2

492815R3

BUSHING

- colter

1шт.

3

492812R1

ARM

ASSEMBLY - colter

1шт.

4

518842R1

CAP

- hub

1шт.

5

519250R1

SLOTTED NUT

- slotted hex, 1-1/4 inch NF

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, housing

2шт.

7

651817R1

BEARING CUP

CUP - bearing, housing

2шт.

8

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING - right bearing

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil, housing

1шт.

472222R1

SLEEVE

- oil seal

1шт.

10

541480R1

SPINDLE

- colter

1шт.

429-1314

NUT,7/8"-14, G8

NUT - slotted hex, 7/8 inch NF, Grade 8

1шт.

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

1шт.

87673

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

11

59158C1

SUPPORT ASSY.

SUPPORT - inside blade

1шт.

12

487697R1

CENTERING RING

SPACER - spring plug

1шт.

13

474251R1

DISC

BLADE - 20 inch plain colter

1шт.

13

474252R2

COULTER

RIPPLED 20"

1шт.

14

59159C1

SUPPORT ASSY.

SUPPORT - outside blade

1шт.

15

429-1314

NUT,7/8"-14, G8

NUT - slotted hex, 7/8 inch NF, Grade 8

1шт.

16

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT - spring eye

1шт.

439-1828

HEADED PIN,1/2" x 1 3/4"

PIN - clevis, 1/2 x 1-3/4 inch

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch

1шт.

17

487698R1

SPRING

- cushion, 13-1/2 coils

1шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Colter bushing) 1/4"-28 x .56" lg, Self-Tap

1шт.

19

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 45 degree, 1/4 inch (In bearing housing)

1шт.

20

549827R92

HUB CAP

SPINDLE ASSEMBLY - colter, Inc.4 - 10, 19

1шт.

Выбрано товаров: 34
