Запчасти Case IH 700 (9-13) - COLTER ATTACHING PARTS AND DISK ADAPTER (09) - CHASSIS/ATTACHMENTS

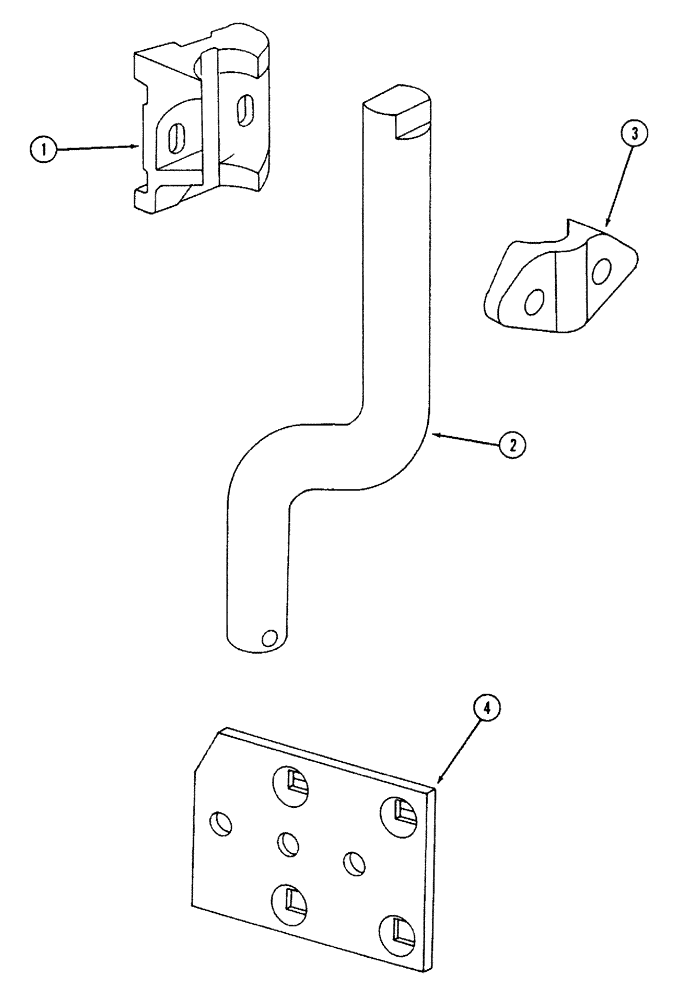

Схема запчастей Case IH 700 - (9-13) - COLTER ATTACHING PARTS AND DISK ADAPTER (09) - CHASSIS/ATTACHMENTS
1
2
3
4

Артикул

Название

Примечание

Количество

1

524456R3

CLAMP

- colter

1шт.

2

488792R1

SHANK

- colter

1шт.

432-2036

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

1шт.

3

524492R1

CLAMP

CAP - rear colter

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

4

100896C2

ADAPTER

BAR ASSEMBLY - disk colter

1шт.

475394R1

BOLT,5/8"-11 x 3 1/2", G5

- plow, 5/8 x 3-1/2 inch

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

1шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

7шт.

Выбрано товаров: 12
