Запчасти Case IH 700 (9-08) - HITCH AND DRAWBAR (09) - CHASSIS/ATTACHMENTS

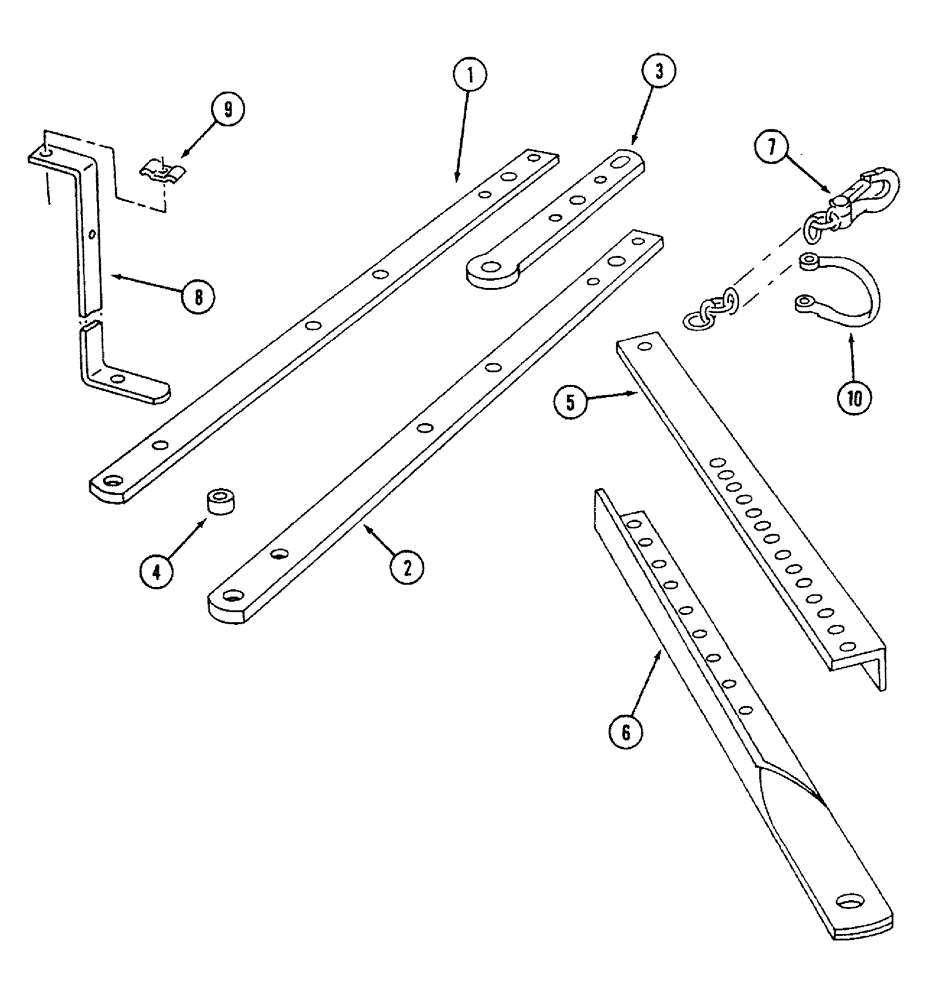

Схема запчастей Case IH 700 - (9-08) - HITCH AND DRAWBAR (09) - CHASSIS/ATTACHMENTS
10
1
8
9
3
5
4
6
2
7

Артикул

Название

Примечание

Количество

1

540035R1

BAR

DRAWBAR - upper

1шт.

2

540036R1

BAR

DRAWBAR - lower

1шт.

3

540037R2

PLATE

EXTENSION - pullbar

1шт.

4

554327R1

SPACER,7/8" Tube x 1"

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

3шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex, 3/4 NC x 3-1/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

413-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 5

- hex, 7/8 NC x 3-1/2 inch

1шт.

492-11088

LOCK WASHER,7/8"

7/8"

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

5

518791R2

SUPPORT

BRACE - rear diagonal

1шт.

6

518792R1

BRACE

- front diagonal

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

7

700705598

CHAIN (CE)

CHAIN ASSEMBLY - safety, 5/16 link x 59 inch, Replaces 100682C3

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

495-81003

WASHER,0.81" ID x 2.88" OD x 0.17" Thk

- flat, 13/16 x 2-7/8 x 4/32 inch

1шт.

495-81029

WASHER,0.66" ID x 2" OD x 0.12" Thk

- flat, 21/32 x 2 x 7/64 inch

1шт.

8

518843R1

SUPPORT

- hose

1шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

9

515030R1

CLAMP

- hose

2шт.

411-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 2

BOLT - round head square neck, 3/8 x 2-1/2 inch

1шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

1шт.

126032

WING NUT,3/8"-16

NUT - wing, 3/8 inch NC

1шт.

10

1279163C1

CLEVIS COUPLING

CLEVIS - safety chain

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

495-81029

WASHER,0.66" ID x 2" OD x 0.12" Thk

- flat, 21/32 x 2 x 7/64 inch

1шт.

Выбрано товаров: 34
