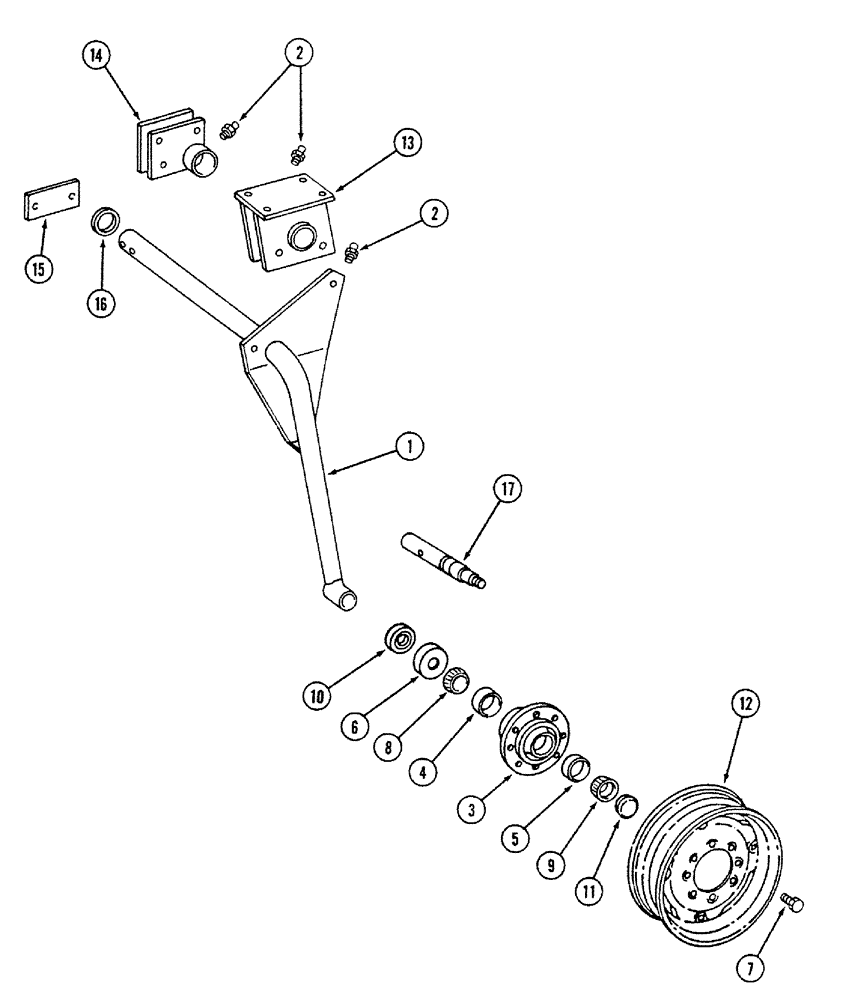

Запчасти Case IH 700 (9-07) - LAND WHEEL WITH 8 BOLT HUB, MACHINES BUILT 1978 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

131700C1

AXLE

ASSEMBLY - land

1шт.

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

1шт.

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

3шт.

3

169293C11

HUB

ASSEMBLY - wheel, Inc. 4 - 7

1шт.

4

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - bearing, inner

1шт.

5

663558R1

BEARING CUP

CUP - bearing, outer

1шт.

6

169328C1

SLEEVE

RING - oil seal wear

1шт.

7

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

- wheel 5/8 x 2-9/16

8шт.

554480R1

WHEEL NUT

- wheel mounting

8шт.

8

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, inner

1шт.

9

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing, outer

1шт.

10

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

- oil, wheel hub

1шт.

11

86900188

CAP

- hub

1шт.

12

131781C91

WHEEL

- 10L x 16 inch

1шт.

13

491573R2

HOLDER

BEARING ASSEMBLY - left hand, land

1шт.

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

4шт.

14

491581R2

BEARING ASSY

ASSEMBLY - right hand, land (7 furrow 16 inch)

1шт.

14

492368R1

SUPPORT

BEARING ASSEMBLY - right hand, land (7 and 8 furrow 18 inch)

1шт.

414-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5

- hex, 3/4 x 2-1/4 inch

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex, 3/4 NC x 3-1/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

15

491580R1

BAR

SPACER - right hand land bearing

1шт.

16

491586R1

WASHER

- land axle

1шт.

432-2456

COTTER PIN,3/8" x 3 1/2"

Pin, Split (Cotter), 3/8" x 3 1/2"

1шт.

17

131779C1

SPINDLE

- wheel

1шт.

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

- flat, 1-1/32 x 2-1/4 x 1/4 inch

1шт.

87673

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

425-1316

NUT,1"-14, G5

NUT - hex slotted, 1 inch NF

1шт.

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

131699C1

TUBE

- spindle

1шт.

131780C91

KIT

PACKAGE - bearing and spindle, Inc. Tube, 3 -11 and 17

1шт.

No Longer Available. Order Component Parts

1шт.
