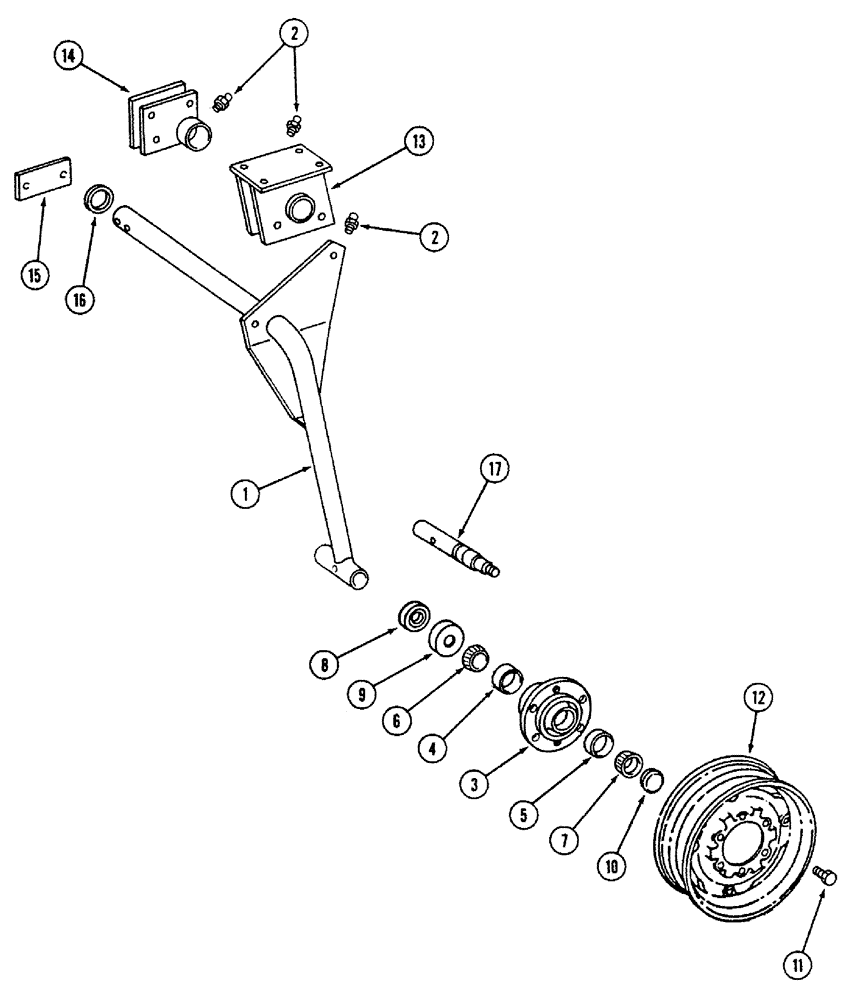

Запчасти Case IH 700 (9-06) - LAND WHEEL WITH 6 BOLT HUB, MACHINES BUILT PRIOR TO 1978 (09) - CHASSIS/ATTACHMENTS

1

122574C2

AXLE

ASSEMBLY - land, 7 furrow 16 inch

1шт.

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

- flat, hardened

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

3шт.

58664C2

TUBE,2.03" ID, 3" OD, 127 mm Length

- spindle

1шт.

3

465496R1

HUB

- wheel, Also Order REF 4 and 5

1шт.

4

663558R1

BEARING CUP

CUP - bearing, inner

1шт.

5

651817R1

BEARING CUP

CUP - bearing, outer

1шт.

6

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing, inner

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer

1шт.

8

654674R91

OIL SEAL

- oil, wheel hub

1шт.

9

654675R1

RING

- oil seal wear

1шт.

10

224066C1

HUB CAP

CAP - wheel hub

1шт.

11

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

6шт.

280963

NUT,Nut, 1/2-20 GR 5 ZND

6шт.

12

174481C1

RIM

WHEEL - 10L x 16 inch

1шт.

13

491573R2

HOLDER

BEARING ASSEMBLY - left hand, land

1шт.

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

4шт.

14

491581R2

BEARING ASSY

ASSEMBLY - right hand, land (7 furrow 16 inch)

1шт.

14

492368R1

SUPPORT

BEARING ASSEMBLY - right hand, land (7 and 8 furrow 18 inch)

1шт.

414-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5

- hex, 3/4 x 2-1/4 inch

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex, 3/4 NC x 3-1/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

15

491580R1

BAR

SPACER - right hand land bearing

1шт.

16

491586R1

WASHER

- land axle

1шт.

432-2456

COTTER PIN,3/8" x 3 1/2"

Pin, Split (Cotter), 3/8" x 3 1/2"

1шт.

17

131626C1

STEERING KNUCKLE

SPINDLE - land wheel

1шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

1шт.

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.
