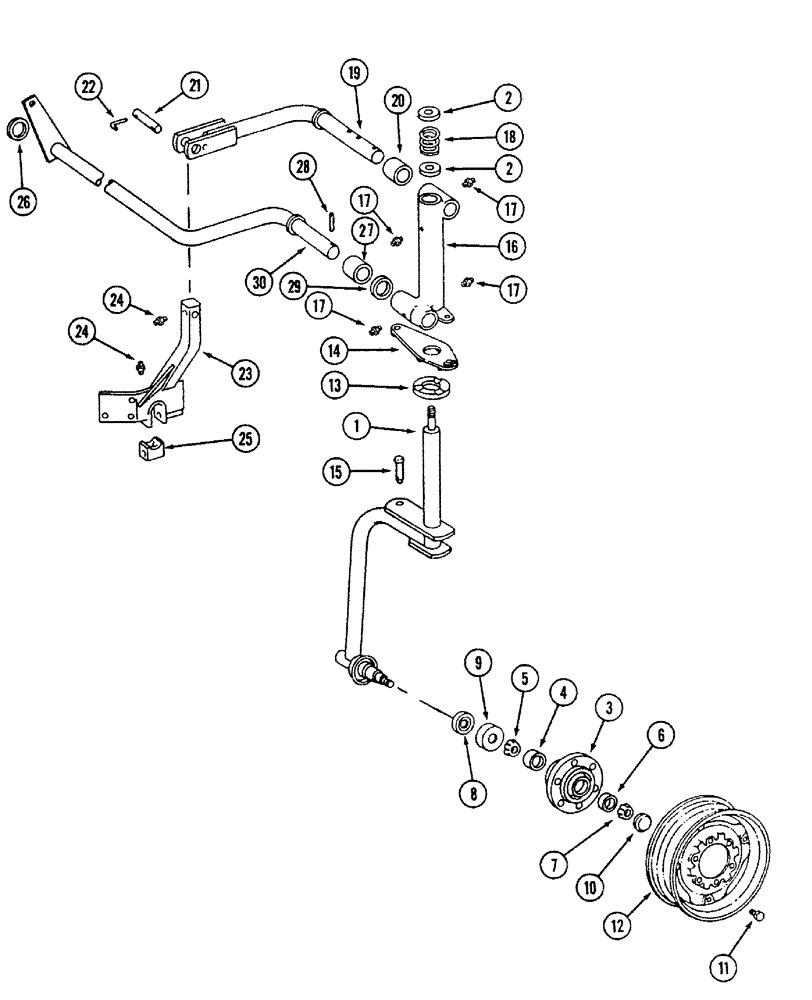

Запчасти Case IH 700 (9-05) - FRONT FURROW WHEEL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
61024C1
AXLE
ASSEMBLY - caster wheel (Early production)
1шт.
1
1337963C1
CENTER AXLE
AXLE ASSEMBLY - caster wheel (Later production)
1шт.
495-81060
WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk
- flat, 29/32 x 1-3/4 x 7/64 inch
1шт.
70120D
SLOTTED NUT,7/8"-14
NUT - hex, slotted 7/8 inch NC
1шт.
87673
COTTER PIN,1/8" x 1 3/4"
PIN, SPLIT (COTTER), 1/8" x 1 3/4"
1шт.
2
491554R1
WASHER
- retainer
2шт.
495-81062
WASHER,0.91" ID x 2" OD x 0.12" Thk
- flat, 29/32 x 2 x 7/64 inch
1шт.
425-1414
JAM NUT,Jam, 7/8"-9, G5
2шт.
3
465496R1
HUB
- wheel, 6 bolt (Early production), Also Order REF 4 and 6
1шт.
3
606468R21
HUB
ASSEMBLY - wheel (Later production), Inc. 4, 6
1шт.
219-87
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap
1шт.
4
663558R1
BEARING CUP
CUP - bearing, inner
1шт.
5
663557R91
BEARING ASSY,1.625" ID x 2.892" OD x 0.77"
CONE - bearing, inner
1шт.
8
654674R91
OIL SEAL
- oil, wheel hub (Early production)
1шт.
8
594702R91
SEAL
- oil, wheel hub (Later production)
1шт.
9
654675R1
RING
- oil seal wear (Early production)
1шт.
9
594703R1
SLEEVE
RING - oil seal wear (Later production)
1шт.
10
224066C1
HUB CAP
CAP - wheel hub
1шт.
11
549962R1
BOLT,1 1/2" - 20 x 1 1/2", Class 3
- hex conical, 1/2 NF x 1-5/32 inch
6шт.
12
481344R91
WHEEL
- steel (For 9.5-14 tire)
1шт.
810768C1
VALVE
- tubeless tire steel
1шт.
13
491555R1
CAM
- caster wheel bottom
1шт.
14
491556R1
CAM
- caster wheel top
1шт.
15
486762R1
PIN
- lockout
1шт.
517843R1
COTTER PIN
PIN - 3/16 cotter, inch
1шт.
1978738C1
HAIR PIN COTTER
1шт.
16
61020C1
HOUSING
- front caster wheel
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
- hex, 5/8 NC x 2 inch
1шт.
231-14110
LOCK NUT,5/8"-11, GB
NUT - hex lock, 5/8 inch NC
1шт.
17
219-87
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, (Front axle housing) 1/4"-28 x .56" lg, Self-Tap
4шт.
18
U13661
VALVE SPRING
SPRING - axle compression
1шт.
19
485647R3
ARM
ASSEMBLY - front furrow wheel
1шт.
495-81098
WASHER,2 1/32" x 2 3/4" x .120"
- 2-1/32 x 2-3/4 inch x 11 gauge
1шт.
432-2444
COTTER PIN,3/8" x 2 3/4"
Pin, Split (Cotter), 3/8" x 2 3/4"
1шт.
20
493745R1
SPACER
- front furrow wheel arm
1шт.
20
488439R1
SPACER
- front furrow wheel arm
1шт.
21
485644R1
PIN
- front furrow wheel arm
1шт.
432-2436
COTTER PIN,3/8" x 2 1/4"
Pin, Split (Cotter), 3/8" x 2 1/4"
1шт.
22
813175C2
LOCK PIN,9.5mm OD
PIN - front furrow wheel arm lock
1шт.
606556R91
OIL SEAL
KIT - seal and wear sleeve, Inc. 8, 9, 594702R91 and 594703R1
1шт.
No Longer Available. Order Component Parts
1шт.
23
482867R92
SUPPORT
ASSEMBLY - outer, 16 inch
1шт.
413-1236
BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5
- hex, 3/4 NC x 2-1/4 inch
3шт.
492-11075
LOCK WASHER,3/4"
3/4"
3шт.
425-1012
NUT,3/4"-10, G5
3шт.
396-41066
WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk
- flat, 21/32 x 1-1/2 x 3/16 inch
2шт.
413-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
2шт.
413-1088
BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5
- hex, 5/8 NC x 5-1/2 inch
2шт.
413-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 5
- hex, 5/8 NC x 4 inch
1шт.
425-1010
NUT,5/8"-11, G5
3шт.
24
219-87
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, (Outer support assembly) 1/4"-28 x .56" lg, Self-Tap
2шт.
25
482872R1
CAP
BEARING - outer half
1шт.
26
495-81243
WASHER,2 5/16" x 3" x .120"
- flat, 2-5/16 x 3 x 1/8 inch
1шт.
432-2448
COTTER PIN,3/8" x 3"
Pin, Split (Cotter), 3/8" x 3"
1шт.
27
488438R1
SPACER
- front lift axle
1шт.
28
482877R1
PIN
- front axle
1шт.
432-816
COTTER PIN,1/8" x 1"
1/8" x 1"
2шт.
29
482876R1
WASHER
- front lift axle
2шт.
30
491559R1
AXLE
ASSEMBLY - front furrow, 7 furrow 16 inch
1шт.
30
492364R1
AXLE
ASSEMBLY - front furrow, 7 and 8 furrow 18 inch
1шт.
Выбрано товаров: 63
