Запчасти Case IH 700 (9-04) - ROCKSHAFT (09) - CHASSIS/ATTACHMENTS

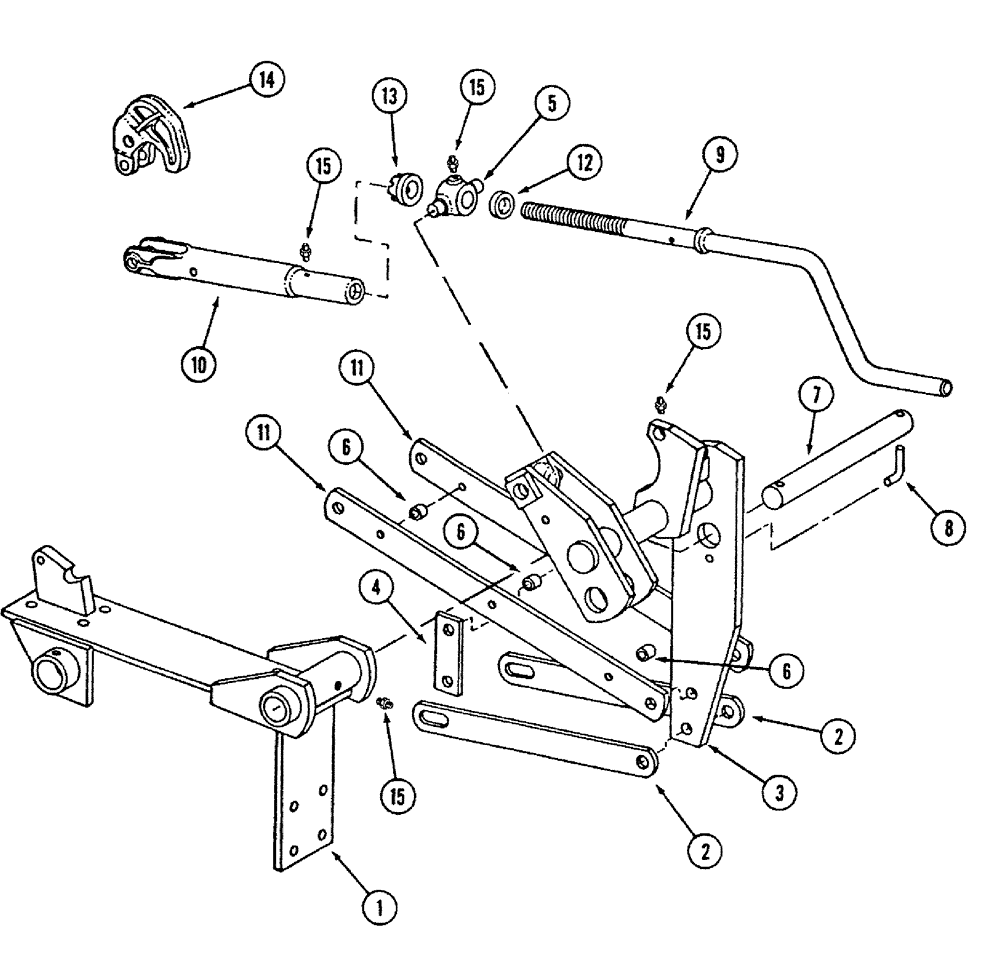

Схема запчастей Case IH 700 - (9-04) - ROCKSHAFT (09) - CHASSIS/ATTACHMENTS
12
10
4
2
6
8
11
9
15
15
11
6
14
6
2
15
5
1
15
7
3
13

Артикул

Название

Примечание

Количество

1

491587R3

SUPPORT

MOUNTING ASSEMBLY - rockshaft

1шт.

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW - hex head cap, 3/4 x 7 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

4шт.

2

56662C2

STRAP

- front transport, 7 and 8 furrow 18 inch

2шт.

2

56662C2

STRAP

- front transport, 7 furrow 16 inch, (Built 1978 and after)

2шт.

28855B

HEADED PIN,7/8" x 2"

PIN - 7/8 x 2 inch

2шт.

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

1978738C1

HAIR PIN COTTER

3/16" diameter

1шт.

495-81059

WASHER,0.91" ID x 1.75" OD x 0.06" Thk

- 29/32 x 1-3/4 x 3/64 inch

2шт.

3

131688C93

ROCKSHAFT

ASSEMBLY - Inc. Swivel

1шт.

468532R2

PIVOT

SWIVEL

1шт.

4

491606R1

BAR

- link attaching

1шт.

5

468532R2

PIVOT

SWIVEL

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

6

513971R1

BUSHING

6шт.

7

491600R1

ROD

SHAFT - rockshaft pivot

1шт.

8

491601R3

PIN

- pivot lock

1шт.

432-2444

COTTER PIN,3/8" x 2 3/4"

Pin, Split (Cotter), 3/8" x 2 3/4"

1шт.

9

491602R1

CRANK

- furrow adjusting

1шт.

10

491603R1

HOUSING

- furrow adjusting

1шт.

11

56661C2

LINK

- land wheel lift, 7 and 8 furrow 18 inch, 7 furrow 16 inch (Built 1978 and after)

2шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

23729R1

HEADED PIN,22.23mm OD x 76.2mm L

PIN - headed, 7/8 x 3 inch

2шт.

495-81063

WASHER,0.91" ID x 2" OD x 0.18" Thk

- flat, 29/32 x 2 x 5/32 inch

4шт.

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

12

80755R91

THRUST BEARING,30.32mm ID x 55.82mm OD x 16mm W

BEARING - leveling thrust

1шт.

13

518615R1

COLLAR

- leveling screw

1шт.

38-32028

PIN,7.92mm OD x 44.45mm L

1шт.

21831R1

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, 1/4" x 1 1/8", Slotted

1шт.

PO20525

PIN,7/8" x 2 3/8"

- headed, 7/8 x 2-3/8 inch

1шт.

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

14

526263R1

RETAINER

- pin, 4 x 8 inch (Hydraulic cylinder only)

1шт.

517843R1

COTTER PIN

PIN - 3/16 inch cotter

1шт.

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN - 1/2 x 2-1/4 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

Выбрано товаров: 40
