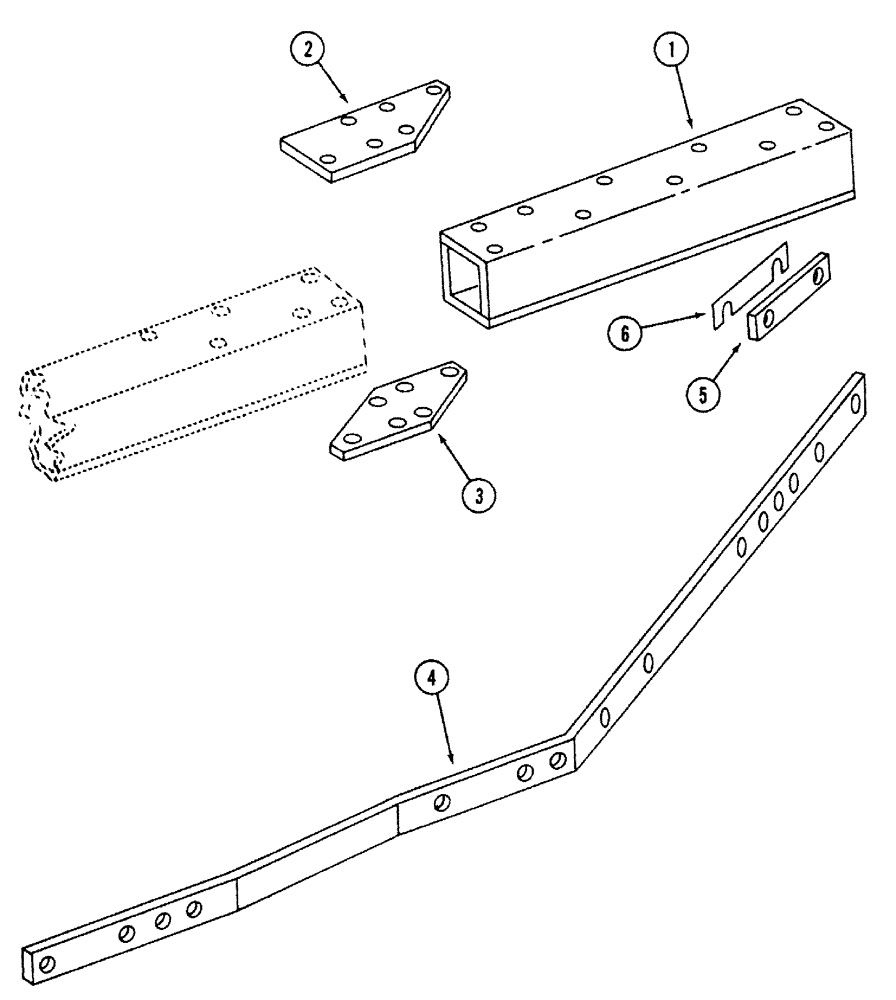

Запчасти Case IH 700 (9-03) - MAIN FRAME EXTENSION (09) - CHASSIS/ATTACHMENTS

1

122831C1

TUBE

ASSEMBLY - extension 16 inch, 6 x 8 inch

1шт.

1

122832C1

TUBE

ASSEMBLY - extension 18 inch, 6 x 8 inch

1шт.

13-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

Hex, 5/8"-11 x 7-3/4", G5

1шт.

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 x 8-1/2 inch (18 inch extension)

1шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch (16 inch extension)

1шт.

13-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 x 8-1/4 inch

2шт.

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame

2шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

4шт.

2

55277C1

PLATE

- frame splice top

1шт.

3

55278C1

PLATE

- frame splice bottom

1шт.

426-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

- hex, 3/4 NC x 9 inch, Grade 8

9шт.

492-11075

LOCK WASHER,3/4"

3/4"

9шт.

425-1012

NUT,3/4"-10, G5

9шт.

4

482781R2

SUPPORT

BAR - rail extension, 16 inch

1шт.

4

489851R2

SUPPORT

BAR - rail extension, 18 inch

1шт.

5

482777R1

BAR

- beam spacer

5шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

(18 inch extension) Hex, 3/4"-10 x 3 1/2", G5

3шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

(16 inch extension) Hex, 3/4"-10 x 3 1/2", G5

4шт.

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch (18 inch extension)

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

5шт.

425-1012

NUT,3/4"-10, G5

5шт.

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

2шт.

6

122507C1

BAR

SHIM - beam spacer (For toggle trip machines only)

1шт.

56656C3

BRACE

- rail extension (18 inch extension)

1шт.
