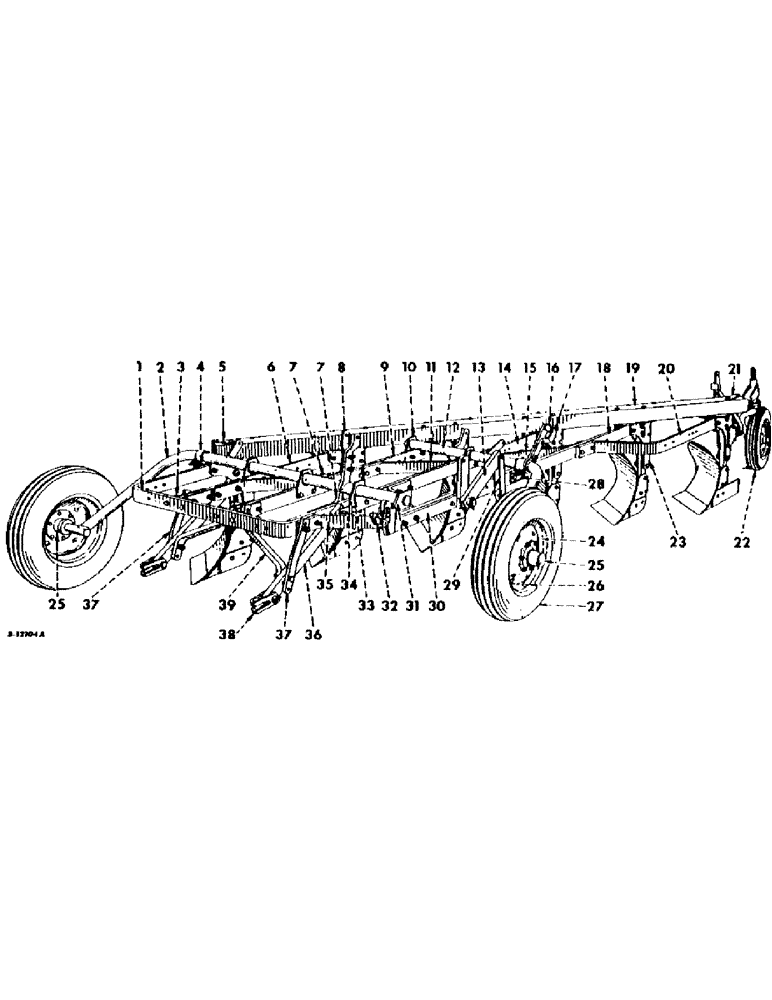

Запчасти Case IH 70 (G-02) - FRAME, AXLES AND WHEELS

1

526739R1

SPREADER, 14 in. frame front

1шт.

1

526532R1

SPREADER, 16 in. frame front

1шт.

2

526750R11

AXLE, 14 in. furrow

1шт.

2

526520R11

AXLE, 16 in. furrow

1шт.

5/8 x 2-1/4 MACH BOLT

3шт.

5/8 x 2-3/4 MACH BOLT

1шт.

5/8 NUT

4шт.

Q3434

PIN

1/8 x 1-3/4 COT PIN

1шт.

5/8 LOCK WASHER

4шт.

3

526548R1

BRACKET, frame rail attaching

1шт.

5/8 x 2-1/4 MACH BOLT

1шт.

5/8 NUT

2шт.

5/8 x 2-3/4 CAP SCREW

1шт.

5/8 LOCK WASHER

2шт.

4

526528R1

CAP, axle bearing

1шт.

5/8 x 1-1/2 MACH BOLT

2шт.

4/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

5

526169R1

STRAP, frame front reinforcing

1шт.

521530R1

5/8 x 5-3/4 CRG BOLT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

BEAM UNIT WASHER

2шт.

6

526535R1

RAIL, second

1шт.

7

525736R1

BRACE, 14 in. frame rail

1шт.

7

526534R1

BRACE, 16 in. frame rail

1шт.

5/8 x 2-1/2 MACH BOLT

1шт.

5/8 x 3-1/4 MACH BOLT

1шт.

5/8 NUT

1шт.

5/8 LOCK WASHER

2шт.

8

518705R1

STRAP

hammer

1шт.

5/8 x 2 MACH BOLT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

9

526538R1

RAIL, third

1шт.

10

526529R1

BEARING, land axle

1шт.

5/8 x 2-1/4 MACH BOLT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

11

526735R1

BRACE, 14 in. frame rear, between 3rd and 4th rail

1шт.

11

526539R1

BRACE, 16 in. frame rear, between 3rd and 4th rail

1шт.

5/8 x 2-1/2 MACH BOLT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

12

526749R11

AXLE, 14 in. land

1шт.

12

526527R11

AXLE, 16 in. land

1шт.

5/8 x 3-3/4 MACH BOLT

2шт.

5/8 NUT

2шт.

1/8 x 1-3/4 COT PIN

1шт.

5/8 LOCK WASHER

2шт.

13

526544R11

BELLCRANK, cylinder

1шт.

14

526543R1

RAIL, frame fourth

1шт.

15

526740R1

BRACE, 14 in. frame rear, between 4th and 5th rail

1шт.

15

526540R1

BRACE, 16 in. frame rear, between 4th and 5th rail

1шт.

16

518609R1

SWIVEL, land axle arm

1шт.

17

526545R1

STRAP, land axle arm hammer

1шт.

1/2 x 1-3/4 MACH BOLT

2шт.

1/2 NUT

2шт.

1/2 LOCK WASHER

2шт.

18

526542R1

RAIL, frame fifth

1шт.

19

526742R91

FRAME, 14 in. main

1шт.

19

526566R91

FRAME, 16 in. main

1шт.

525184R1

5/8 x 5-1/4 CRG BOLT

17шт.

5/8 NUT

17шт.

5/8 LOCK WASHER

17шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

BEAM UNIT WASHER

17шт.

20

526738R1

RAIL, 14 in. frame offset

1шт.

20

526531R1

RAIL, 16 in. frame offset

1шт.

5/8 x 3-3/4 MACH BOLT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

21

525159R1

STRAP, 14 in. frame rear reinforcing

1шт.

21

524469R1

STRAP, 16 in. frame rear reinforcing

1шт.

521530R1

5/8 x 5-3/4 CRG BOLT

2шт.

5/8 LOCK WASHER

2шт.

5/8 NUT

2шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

BEAM UNIT WASHER

2шт.

22

WHEEL, transport, for components see list of parts under details of transport wheels

1шт.

23

BEAM, trip, for components see list of parts under details of trip beam

1шт.

24

518823R91

WHEEL

W/RIM

1шт.

1/2 x 1-1/4 MACH BOLT

6шт.

1/2 NUT

6шт.

1/2 LOCK WASHER

6шт.

25

HUB, for components see list of parts under land and furrow wheel hub bearings

1шт.

26

TUBE, pneumatic, 6.70 x 15

1шт.

27

TIRE, ribbed implement pneumatic, 6.70 x 15

1шт.

28

525207R1

BRACKET, axle bearing

1шт.

5/8 x 2-1/2 MACH BOLT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

29

526537R11

LINK, pitman

1шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

30

525261R21

SUPPORT, cylinder

1шт.

5/8 x 3-1/2 MACH BOLT

2шт.

5/8 x 4-1/4 MACH BOLT

2шт.

5/8 NUT

4шт.

5/16 x 2-1/2 SELF-OPENING COT PIN

1шт.

5/8 LOCK WASHER

1шт.

1-17/32 x 2-1/4 x 11 GA WASHER

1шт.

31

526533R1

BEARING, furrow axle

1шт.

32

526263R1

RETAINER

cylinder bracket pin

1шт.

520175R1

CLIP

QUICK-ATTACHABLE COT PIN

1шт.

1/2 x 2-1/8 HD PIN

1шт.

5/8 x 2-9/16 HD PIN

1шт.

3/16 x 1 SELF-OPENING COT PIN

1шт.

33

526530R1

PLATE

BEARING, furrow axle

1шт.

5/8 x 2-1/4 MACH BOLT

1шт.

5/8 NUT

1шт.

5/8 LOCK WASHER

1шт.

34

526559R1

STRAP, hammer

1шт.

5/8 x 2-3/4 MACH BOLT

1шт.

5/8 NUT

1шт.

3/4 NUT

1шт.

3/4 x 4-1/4 CAP SCREW

1шт.

5/8 LOCK WASHER

1шт.

3/4 LOCK WASHER

1шт.

35

526741R1

BRACE, 14 in. frame front, between 4th and 5th rail

1шт.

35

526536R1

BRACE, 16 in. front, between 4th and 5th rail

1шт.

5/8 x 2-1/2 MACH BOLT

2шт.

5/8 NUT

3шт.

5/8 x 2-1/2 CAP SCREW

1шт.

5/8 LOCK WASHER

3шт.

36

526549R1

STRAP

hitch

1шт.

37

526557R1

BRACE, hitch outside strap

2шт.

3/4 NUT

2шт.

3/4 x 4-1/4 CAP SCREW

2шт.

3/4 LOCK WASHER

2шт.

38

518683R1

CLEVIS

hitch strap

1шт.

7/8 x 3-3/4 DLD MACH BOLT

1шт.

7/8 NUT

1шт.

1/8 x 1-1/4 SELF-OPENING COT PIN

1шт.

39

526737R1

BRACE, 14 in. frame hitch inner strap

1шт.

39

526550R1

BRACE, 16 in. frame hitch inner strap

1шт.

3/4 NUT

2шт.

3/4 x 4 CAP SCREW

1шт.

3/4 x 5 CAP SCREW

1шт.

3/4 LOCK WASHER

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub, in cyl bellcrank

1шт.

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub, in furrow and land axle bearing cap

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , In cylinder bellcrank 1/8"-27 x .66 lg

1шт.

524597R1

BAR

SPACER frame rail, 2-3/4 x 1/4, between trip beam unit and rail

1шт.

524465R1

SUPPORT

SPACER, frame rail, 2-3/4 x 1/2, between trip beam unit and rail

1шт.

5/8 x 3-1/4 CAP SCREW

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

1/2 x 2-1/4 CAP SCREW

2шт.
