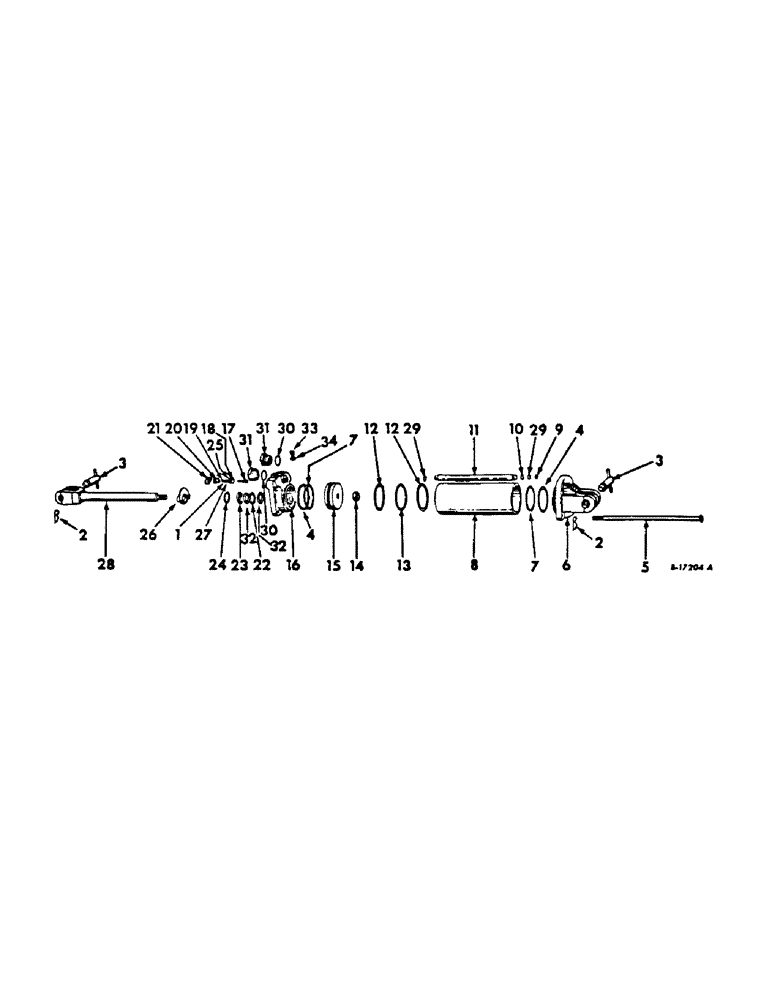

Запчасти Case IH 70 (G-25) - HYDRAULIC CYLINDER, 3-1/2 X 8 DOUBLE ACTING, PRODUCT GRAPHICS

403842R94

CYLINDER

ASSY, hydraulic

1шт.

1

404026R1

BACK-UP RING

o-ring back-up

1шт.

2

520175R1

CLIP

PIN, quick-attachable cot

2шт.

3

388695R31

PIN

ASSY, cyl pivot

2шт.

4

404015R1

BACK-UP RING

WASHER, o-ring back-up

2шт.

5

404022R1

ROD,5/8" - 11 x 14"

tie

4шт.

120639

NUT, 5/8-11 hex

8шт.

6

404020R1

HEAD

rear

1шт.

7

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8, front & rear head

2шт.

8

4004021R1

SLEEVE, cyl

1шт.

9

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

o-ring back-up

2шт.

10

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8, piston rod

1шт.

11

404023R1

TUBE

cyl return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

375936R1

BACK-UP RING

WASHER, o-ring back-up

2шт.

13

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 1/8 piston

1шт.

14

20251R1

NUT

1-1/8-12 hex, lock

1шт.

15

404019R1

PISTON

1шт.

16

404014R2

HEAD, cyl front

1шт.

17

404029R1

LOCK VALVE

VALVE ASSY, limit stop

1шт.

18

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32, limit stop valve housing

1шт.

19

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16, limit stop valve housing

1шт.

20

404024R91

HOUSING

ASSY, limit stop valve

1шт.

21

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

22

400744R1

RING

quad

1шт.

23

383771R1

SEALING WASHER

RETAINER, piston rod wiper

1шт.

25

404028R1

BACK-UP RING

limit stop valve housing o-ring

1шт.

26

404034R1

CLAMP

ASSY, stroke limit

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16-24 x 3/4 C-Z hex-hd cap

1шт.

27

404027R1

RETAINER

limit stop valve o-ring

1шт.

28

404016R1

ROD

ASSY, piston

1шт.

29

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32, return tube

2шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

31

9410360

PLUG

7/8-14 str thd o-ring boss

2шт.

32

403622R1

BACK-UP RING

WASHER, quad ring back-up

2шт.

33

404033R1

PLUG

front head

2шт.

34

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

2751852R1

PRODUCT GRAPHIC, International

1шт.

2754240R1

PRODUCT GRAPHIC, hyd cyl

1шт.

527324R92

KIT

PACKAGE, o-ring service

1шт.

Consists of, (1) o-ring 21590R1, (1) o-ring 364839R1, (1) ring 400744R1, (2) o-ring 343940R1, (2) washer 371218R2, (2) washer 375936R1, (2) o-ring 377952R1, (1) o-ring 378827R1, (1) o-ring 380794R1, (1) wiper 383770R1, (2) washer 403622R1, (2) washer 404015R1, (1) washer 404026R1, (1) washer 404028R1, (1) o-ring 606271C1

1шт.

469627R92

PRODUCT GRAPHIC

KIT, product graphic

1шт.

2754030R1

PRODUCT GRAPHIC

model desigantion, (NSS)

1шт.

2750483R1

PRODUCT GRAPHIC, import, (NSS

1шт.

1000840R3

DECAL

IH, on main frame

1шт.

2751264R1

PRODUCT GRAPHIC

INTERNATIONAL

1шт.
