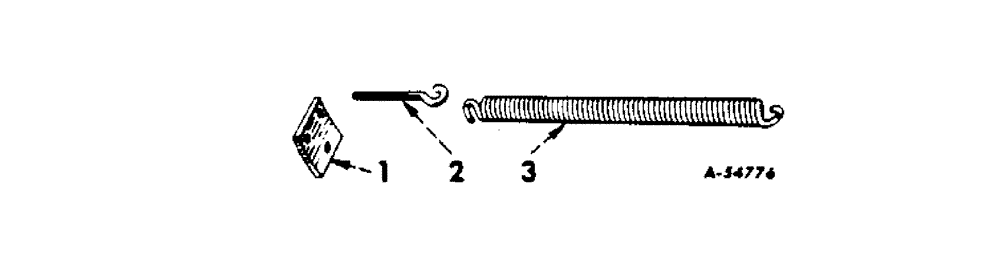

Запчасти Case IH 70 (G-18[B]) - FURROW AXLE RAISING SPRING

1

525165R1

ANCHOR, spring front

1шт.

5/8 x 1-1/2 HEX-HD MACH BOLT

1шт.

5/8 NUT

1шт.

5/8 LOCK WASHER

1шт.

2

PO12154

EYEBOLT, furrow axle spring

1шт.

1/2 NUT

2шт.

3

PO107

SPRING, furrow axle raising

1шт.

1/8 x 1-3/4 COT PIN

1шт.

Q3434

PIN

3/4 x 3-1/4 DLD-STD-HD PIN

1шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

25/32 x 1-1/4 x 11 GA WASHER

1шт.
