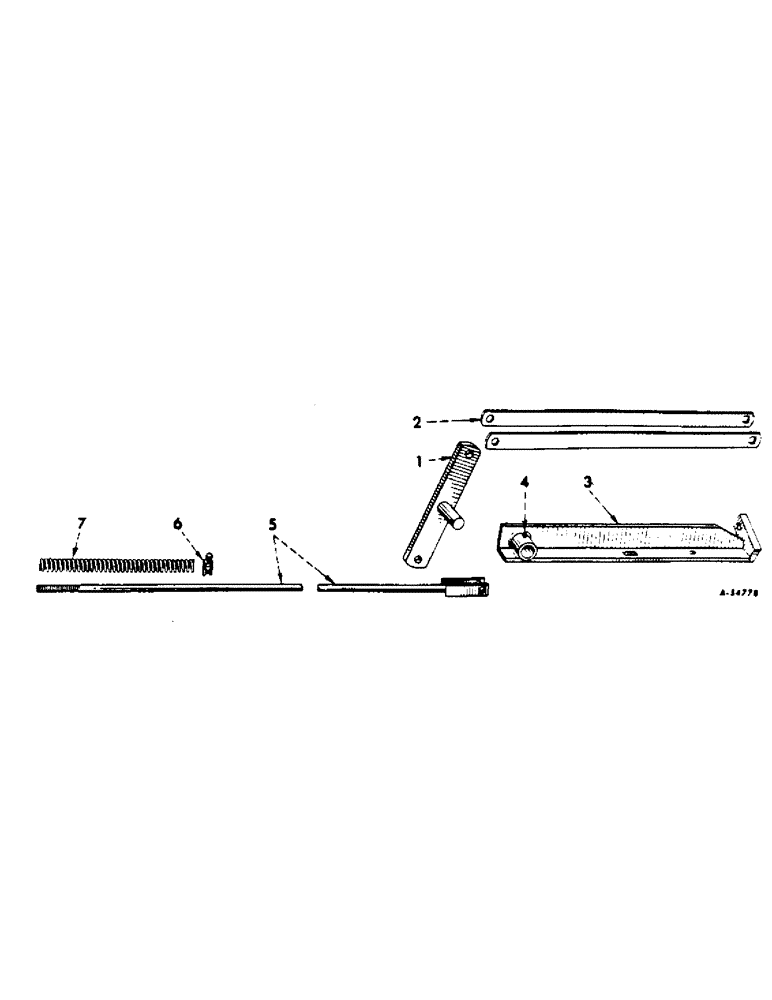

Запчасти Case IH 70 (G-15) - REAR WHEEL RAISING LINK AND BELLCRANK

1

526541R11

BELLCRANK, rear raising

1шт.

1/4 x 1-3/4 SELF-OPENING COT PIN

1шт.

1-9/32 x 2 x 11 GA WASHER

1шт.

2

526546R1

LINK, rear axle raising

2шт.

619028R1

3/4 x 1-15/16 DLD-STD-HD PIN

2шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

2шт.

3

526561R21

BRACKET, rear raising bellcrank

1шт.

521530R1

5/8 x 5-3/4 CRG BOLT

1шт.

5/8 NUT

2шт.

218443

NUT

3/4 JAM NUT

1шт.

3/4 x 2-3/4 CAP SCREW

1шт.

5/8 LOCK WASHER

2шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub

1шт.

5

526522R11

LINK, rear raising, 5 furrow only

1шт.

5

526521R11

LINK, rear raising, 6 furrow only

1шт.

218443

NUT

3/4 JAM NUT

2шт.

PO20851

3/4 x 1-11/16 DLD-STD-HD PIN

1шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 GA WASHER

2шт.

25/32 x 1-1/2 x 16 GA WASHER

1шт.

6

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW, rear raising link

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

1/2 x 3/4 CUP-PT SQ-HD SET SCREW

1шт.

7

13A

SPRING, left rod cushion

1шт.
