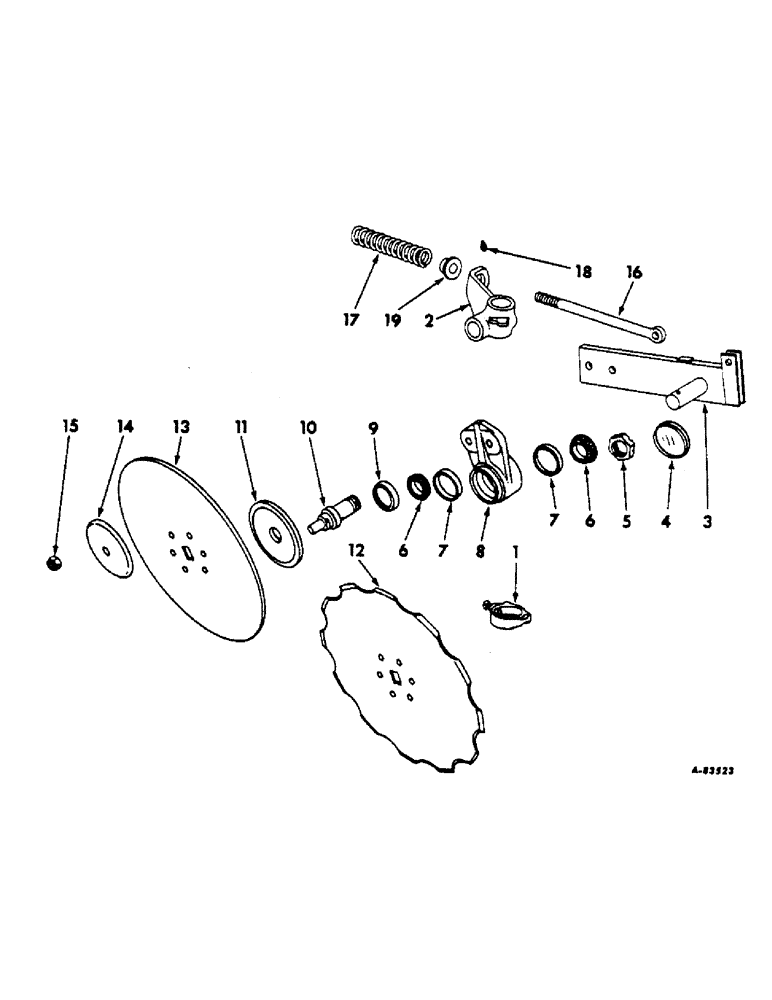

Запчасти Case IH 70 (G-07) - HEAVY-DUTY ROLLING COLTER, CUSHION SPRING TYPE, ONE PER FURROW

1

523345R21

COLLAR CLAMP

COLLAR ASSY, stop

1шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

1шт.

2

480343R2

BEARING

BUSHING, colter

1шт.

3

480338R92

ARM

ASSY, colter

1шт.

4

518842R1

CAP

hub

1шт.

5

519250R1

SLOTTED NUT

1-1/4-12 hex slotted

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, housing cone

2шт.

7

651817R1

BEARING CUP

BEARING, housing cup

2шт.

8

523019R3

HOUSING

RH bearing

1шт.

179891

SHAFT

SCREW, 1/2-13 x 2-1/2 hex-hd cap

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

523027R91

OIL SEAL

oil

1шт.

10

523023R1

SPINDLE

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

11

523020R2

SUPPORT ASSY.

SUPPORT, inside blade

1шт.

12

523026R2

DISC

BLADE, 17 in. notched colter

1шт.

13

523025R2

HALF BLADE

BLADE, 17 in. plain colter

1шт.

13

469191R3

BLADE

17 in. rippled edge

1шт.

14

523021R1

WASHER

SUPPORT, outside blade

1шт.

15

361011R1

NUT

3/4-16 stop

1шт.

16

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT, spring eye

1шт.

PG144

PIN, 1/2 x 1-11/16

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 ESNA stop

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

Q3483

WASHER

1-9/32 x 2 x 11 ga

1шт.

17

PO168

SPRING

1шт.

18

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub

1шт.

19

480342R1

SPACER

spring plug

1шт.
