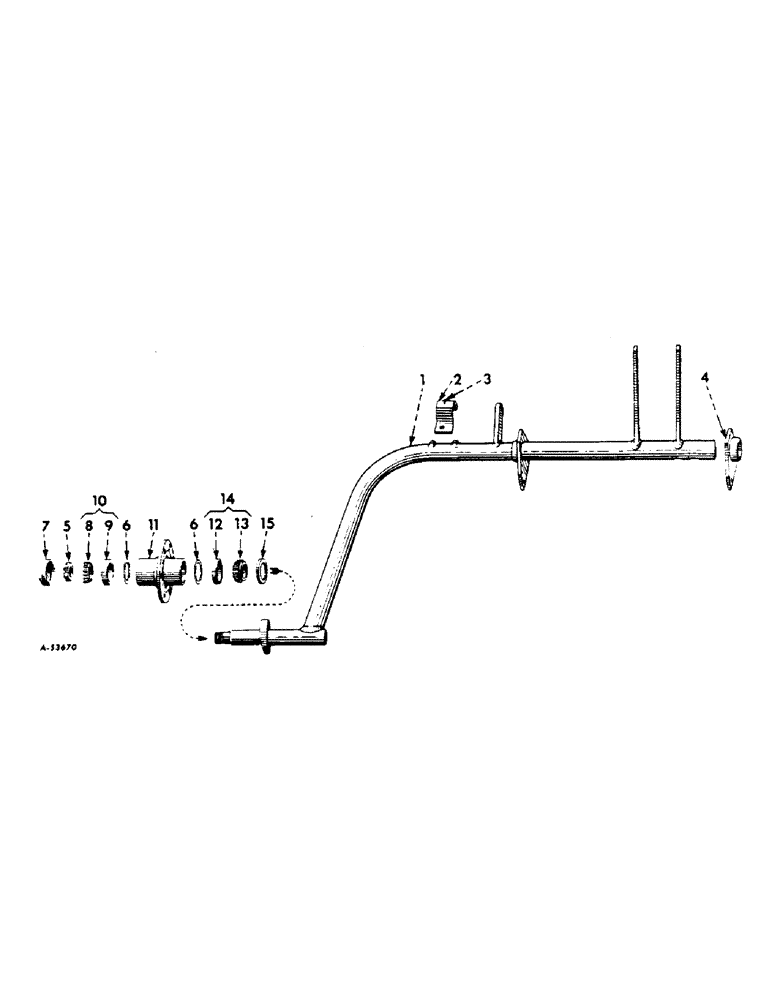

Запчасти Case IH 70 (F-14) - FURROW AXLE

1

525187R12

AXLE, 14 in. front furrow

1шт.

1

525188R12

AXLE, 16 in. front furrow

1шт.

5/8 x 2-1/4 MACH BOLT

2шт.

1-1/4 UNF SLT NUT

1шт.

1/8 x 1-3/4 COT PIN

1шт.

5/8 LOCK WASHER

2шт.

2

525158R1

CAP, axle bearing

1шт.

5/8 x 1-1/2 MACH BOLT

2шт.

5/8 LOCK WASHER

2шт.

3

110161

FITTING, 3/16 drive type str lub

1шт.

4

525156R1

BEARING, furrow axle

1шт.

5/8 x 2-1/4 MACH BOLT

2шт.

5/8 LOCK WASHER

2шт.

5

519250R1

SLOTTED NUT

1-1/4 hex, slt

1шт.

6

518818R1

RING

backing

2шт.

7

453771R1

PLUG

CAP, wheel hub

1шт.

8

59756H

CONE

BEARING, tapered roller outer cone

1шт.

9

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING, tapered roller outer cup

1шт.

10

59755H

BEARING

ASSY, order 54628H and 59756H

1шт.

11

518782R92

HUB

front furrow wheel

1шт.

12

518819R1

BEARING CUP,69.01mm OD x 15.08mm W

BEARING, tapered roller inner cup

1шт.

13

455256R91

ROLLER BEARING,1.5" ID x 2.717" OD x 1.0313"

BEARING, tapered roller inner cone

1шт.

14

524455R91

BEARING

ASSY, order 518819R1 and 455256R91

1шт.

15

518821R91

OIL SEAL

front furrow axle oil

1шт.
