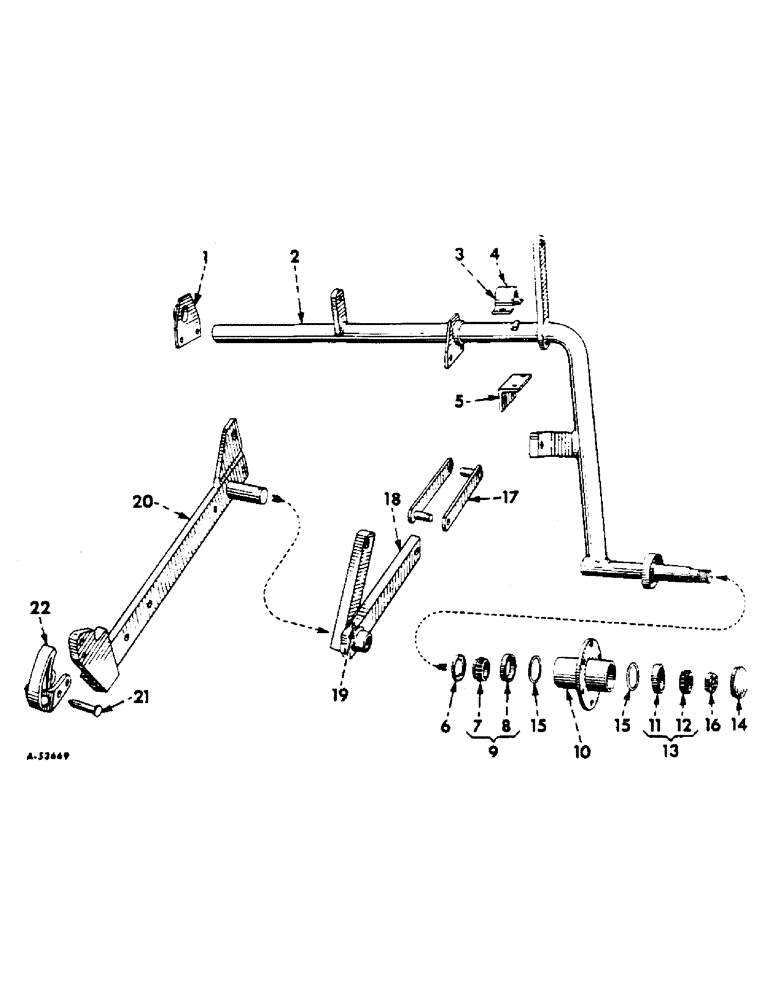

Запчасти Case IH 70 (F-12) - LAND AXLE AND CYLINDER SUPPORT

1

525155R1

BEARING, land axle

1шт.

5/8 x 2-1/2 MACH BOLT

2шт.

5/8 LOCK WASHER

2шт.

5/8 NUT

2шт.

2

525231R12

AXLE, 14 in. land

1шт.

2

525232R12

AXLE, 16 in. land

1шт.

519250R1

SLOTTED NUT

1-1/4 UNF SLT NUT

1шт.

1/8-1-3/4 COT PIN

1шт.

5/8 x 1-3/8 x .109 GA WASHER

1шт.

3

525158R1

CAP, axle bearing

2шт.

5/8 x 1-3/4 MACH BOLT

2шт.

5/8 LOCK WASHER

2шт.

5/8 NUT

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

1шт.

5

525207R1

BRACKET, axle bearing

1шт.

5/8 x 2-1/4 MACH BOLT

2шт.

5/8 LOCK WASHER

2шт.

5/8 NUT

2шт.

6

518821R91

OIL SEAL

land axle oil

1шт.

7

455256R91

ROLLER BEARING,1.5" ID x 2.717" OD x 1.0313"

BEARING ASSY, cone

1шт.

8

518819R1

BEARING CUP,69.01mm OD x 15.08mm W

BEARING, cup

1шт.

9

524455R91

BEARING

ASSY, order 518819R1 and 455256R91

1шт.

10

518782R92

HUB

land wheel

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

6шт.

11

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING, cup

1шт.

12

59756H

CONE

BEARING ASSY, cone

1шт.

13

59755H

BEARING

ASSY, order 54628H and 59756H

1шт.

14

453771R1

PLUG

CAP, wheel hub

1шт.

15

518818R1

RING

backing

1шт.

16

519250R1

SLOTTED NUT

1-1/4 hex, slt

1шт.

17

525228R11

LINK, pitman

2шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

2шт.

18

525230R11

BELLCRANK, cylinder

1шт.

19

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 str drive lub

1шт.

20

525261R21

SUPPORT, cylinder

1шт.

5/8 x 3-1/4 MACH BOLT

2шт.

5/16 x 2-1/2 SELF-OPENING COT PIN

1шт.

5/8 LOCK WASHER

2шт.

1-17/32 x 2-1/4 x 11 GA WASHER

1шт.

21

512683R1

PIN

transport 5/8 x 2-5/8 pointed, 1958

1шт.

21

520277R1

PIN

transport 5/8 x 2-13/16 pointed, 1959 & up

1шт.

520175R1

CLIP

QUICK-ATTACHABLE COT PIN

1шт.

22

523736R1

RETAINER

cylinder bracket pin, order retainer, 526263R1 and pin, 520277R1

1шт.

22

526263R1

RETAINER

cylinder bracket pin

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

1/2 x 2-1/4 DLD-STD-HD PIN

1шт.

3/16 x 1 SELF-OPENING COT PIN

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 drive type str lub, in cylinder bellcrank

1шт.
