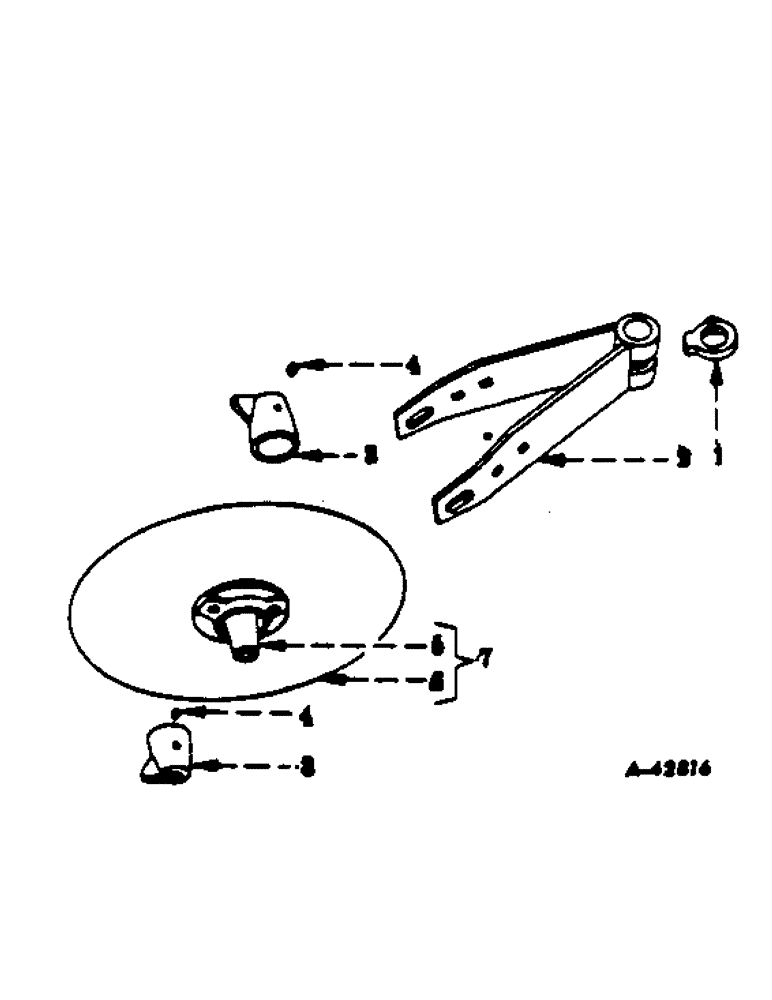

Запчасти Case IH 70 (E-04[A]) - ROLLING COLTERS, ONE PER FURROW

1

519345R31

COLLAR

ASSY, stop

1шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

1шт.

2

522252R93

YOKE

colter

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

1/2 NUT

1шт.

1/2 x 7-3/4 CAP SCREW

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 GA WASHER

2шт.

3

521157R1

BUSHING,13.49mm ID x 52.39mm OD x 69.85mm L

left

1шт.

3

521158R1

BUSHING

right

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 str drive lub

2шт.

5

468727R1

HUB

2шт.

5/16 x 1-3/4 RD-HD RIVET

6шт.

6

PO19619

BLADE, notched, 16 in. dia, Serial Range: 1958-1962

1шт.

6

468724R1

BLADE

notched, 16 in. dia, Serial Range: 1962-1963

1шт.

6

523026R2

DISC

BLADE, notched, 17 in. dia, 1964 & up

1шт.

6

15788

BLADE, notched, 18 in. dia, Serial Range: 1958-1962

1шт.

6

468726R1

COULTER

BLADE, notched, 18 in. dia, 1962 & up

1шт.

6

PO11601

BLADE

plain, 16 in. dia, Serial Range: 1958-1962

1шт.

6

468723R1

COULTER

BLADE, plain, 16 in, dia, Serial Range: 1962-1963

1шт.

6

523025R2

HALF BLADE

BLADE, plain, 17 in. dia, 1964 & up

1шт.

6

523025R2

HALF BLADE

BLADE, plain, 18 in. dia, Serial Range: 1958-1962

1шт.

6

468725R1

COULTER

BLADE, plain, 18 in. dia, 1962 & up

1шт.

6

469191R3

BLADE

rippled edge, 17 in. dia, 1962 & up

1шт.

7

PO20280

BLADE w/hubs, notched, 16 in. dia, Serial Range: 1958-1962

1шт.

7

478721R91

BLADE

w/hubs, notched, 17 in. dia, 1964 & up

1шт.

7

PO15789

BLADE w/hubs, notched, 18 in. dia, Serial Range: 1958-1962

1шт.

7

468726R11

NO LONGER SERVICED

BLADE w/hubs, notched, 18 in. dia, 1962 & up

1шт.

7

PO20274

BLADE w/hubs, plain, 16 in. dia, Serial Range: 1958-1962

1шт.

7

468723R11

COULTER

BLADE w/hubs, plain, 16 in. dia, Serial Range: 1962-1963

1шт.

7

478720R91

BLADE

w/hubs, plain, 17 in. dia, 1964 & up

1шт.

7

PO14912

BLADE

w/hubs, plain, 18 in. dia, Serial Range: 1958-1962

1шт.

7

468725R11

COULTER

BLADE w/hubs, plain, 18 in. dia, 1962 & up

1шт.

7

469191R31

COULTER

BLADE w/hubs, rippled edge, 17 in. dia, 1962 & up

1шт.
