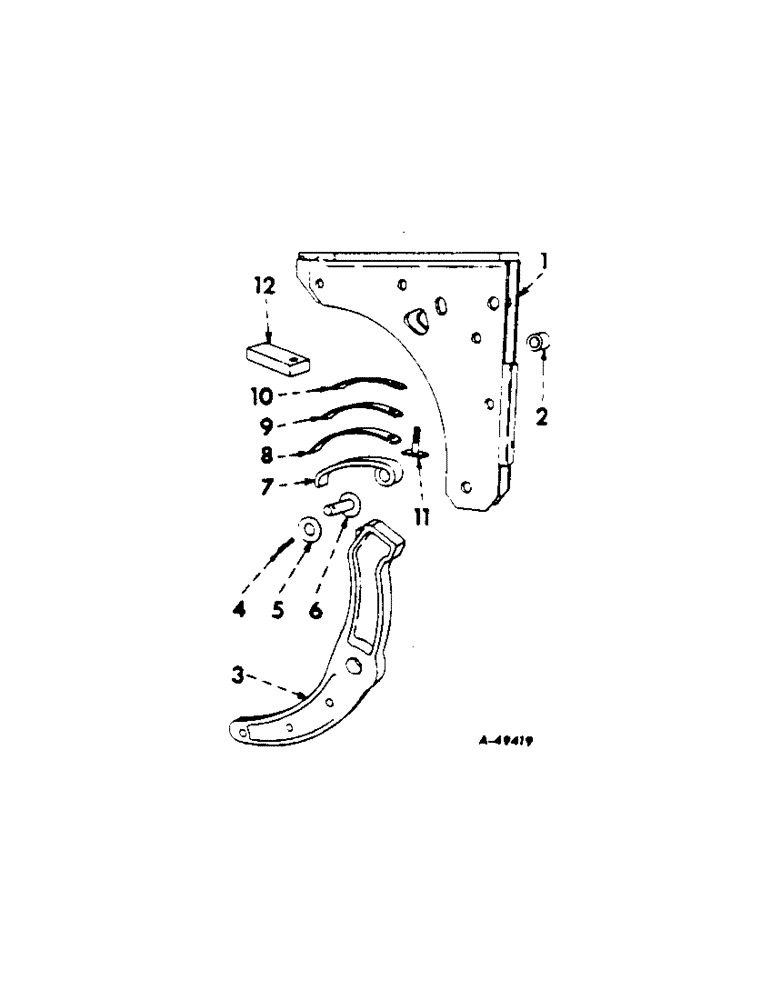

Запчасти Case IH 70 (E-03[A]) - TRIP BEAM, ONE PER FURROW

1

524450R92

PLATE

beam trip

1шт.

5/8 x 3-1/4 MACH BOLT

1шт.

522680R2

BOLT

1 x 3-3/8 DLD MACH BOLT

1шт.

427651

SLOTTED NUT,1"-14, G5

1 SLT HEX NUT

1шт.

5/8 NUT

1шт.

3/16 x 1-3/4 COT PIN

1шт.

5/8 LOCK WASHER

1шт.

2

522432R2

SPACER

STOP, trip beam, also spacer

1шт.

5/8 x 3-1/4 MACH BOLT

1шт.

5/8 NUT

1шт.

5/8 LOCK WASHER

1шт.

3

524368R1

BEAM

trip

1шт.

3

468843R1

BEAM, shear trip

1шт.

468868R2

PIN,14.28mm OD x 83.31mm L

TRIP beam shear pin

2шт.

1/8 x 3/4 SELF-OPENING COT PIN

2шт.

4

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, , trip spring roller 1/4" x 1 1/2", Slotted

2шт.

5

522473R1

WASHER

49/64 x 1-3/4 x 11 ga

2шт.

6

522967R1

ROLLER

trip beam spring

1шт.

7

524356R1

SPRING

beam trip

1шт.

1/4 x 1-1/2 SELF-OPENING COT PIN

1шт.

11133R

3/4 x 2-13/16 DLD-STD-HD PIN

1шт.

8

524454R1

VALVE SPRING

SPRING, lower helper

1шт.

9

524453R1

VALVE SPRING

SPRING, middle helper

1шт.

10

524452R1

VALVE SPRING

SPRING, upper helper

1шт.

11

524357R11

BOLT (MACHINE),2 1/2" L

SCREW, adjusting, trip beam

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

1/2 JAM NUT

1шт.

1/2 HEX, NUT

1шт.

12

524594R1

BAR

SPACER, helper spring, 1/4 thick

1шт.

12

524884R1

BAR

SPACER, helper spring, 1/2 thick

1шт.

526242R1

SHIM

frame rail

1шт.
