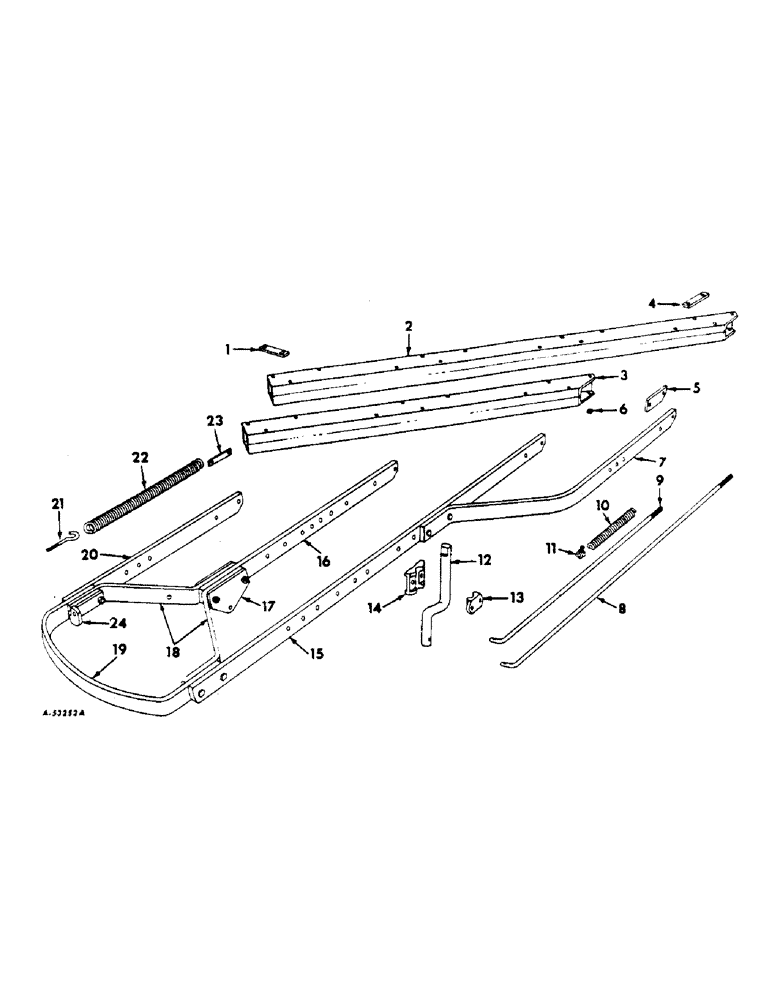

Запчасти Case IH 70 (E-02) - FRAME

1

525169R1

STRAP, main frame front reinforcing

1шт.

521530R1

5/8 x 5-3/4 CRG BOLT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

2

525216R91

FRAME, 14 in. main, 4/3 furrow

1шт.

2

525219R91

FRAME, 16 in. main, 4/3 furrow

1шт.

525184R1

5/8 x 5-1/4 CRG BOLT

9шт.

526453R1

5/8 x 6 CRG BOLT

2шт.

5/8 NUT

11шт.

5/8 LOCK WASHER

11шт.

3

525210R91

FRAME, 14 in. main, 3 furrow

1шт.

3

525213R91

FRAME, 16 in. main, 3 furrow

1шт.

525184R1

5/8 x 5-1/4 CRG BOLT

5шт.

526453R1

5/8 x 6 CRG BOLT

2шт.

5/8 NUT

7шт.

5/8 LOCK WASHER

7шт.

4

525159R1

STRAP, 14 in. main frame rear reinforcing

1шт.

4

524469R1

STRAP, 16 in. main frame rear reinforcing

1шт.

526453R1

BOLT, 5/8 x 6 crg

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

5

524465R1

SUPPORT

SPACER, frame rail, 3 furrow

3шт.

5/8 NUT

6шт.

5/8 x 3-1/4 CAP SCREW

6шт.

5/8 LOCK WASHER

6шт.

5

524465R1

SUPPORT

SPACER, frame rail, 3/4 furrow

4шт.

5/8 NUT

8шт.

5/8 x 3-1/4 CAP SCREW

8шт.

5/8 LOCK WASHER

8шт.

6

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

beam unit bolt, 3 furrow

9шт.

6

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

beam unit bolt, 3/4 furrow

12шт.

7

525199R1

RAIL, 14 in. frame offset, & 4/3 furrow

4шт.

7

525200R1

RAIL, 16 in. frame offset, & 4/3 furrow

4шт.

5/8 NUT

2шт.

5/8 x 2-3/4 MACH BOLT

2шт.

5/8 LOCK WASHER

2шт.

8

525193R1

LINK, rear raising, 4/3 and 4 furrow

1шт.

9

525190R1

LINK, rear raising, 3 furrow

1шт.

218443

NUT

3/4 JAM NUT

2шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

25/32 x 1-1/2 x 11 GA WASHER

3шт.

10

13A

SPRING, lift rod cushion

1шт.

11

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW, rear raising link

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

1/2 x 3/4 CUP-PT SQ-HD SET SCREW

1шт.

12

522434R1

STEM

SHANK, colter, for 3 furrow

3шт.

13170R1

Pin, Split (Cotter), 5/16" x 2 1/4", self-opening 5/16" x 2 1/4"

3шт.

12

522434R1

STEM

SHANK, colter, for 3/4 furrow

4шт.

13170R1

Pin, Split (Cotter), 5/16" x 2 1/4", self-opening 5/16" x 2 1/4"

4шт.

13

524492R1

CLAMP

CAP, colter clamp, 3 furrow

3шт.

5/8 NUT

6шт.

5/8 x 4-1/4 CAP SCREW

6шт.

13

524492R1

CLAMP

CAP, colter clamp, 3/4 furrow

4шт.

5/8 NUT

8шт.

5/8 x 4-1/4 CAP SCREW

8шт.

14

524456R3

CLAMP

colter, for 3 furrow

3шт.

14

524456R3

CLAMP

colter, for 3/4 furrow

4шт.

15

525256R1

RAIL, frame third

1шт.

5/8 NUT

2шт.

5/8 x 4 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

16

525203R1

RAIL, frame second

1шт.

17

525267R1

PLATE, hitch pivot attaching

1шт.

5/8 NUT

2шт.

20941R1

BOLT (SPREADER),3/4" x 4 3/4", Gr 8

SCREW, 5/8 x 4-3/4 cap

1шт.

5/8 LOCK WASHER

2шт.

18

525201R1

BRACE, 14 in. frame rail front

2шт.

18

525202R1

BRACE, 16 in. frame rail front

2шт.

19

525254R2

SPREADER, 14 in. frame front

1шт.

19

525255R2

SPREADER, 16 in. frame front

1шт.

20

525204R1

RAIL, frame first

1шт.

5/8 NUT

2шт.

5/8 x 3-3/4 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

21

S7363

EYEBOLT, raising spring

1шт.

102637

NUT,1/2"-13, G5

2шт.

22

PO127

SPRING, leveling

1шт.

23

PO25561

STRAP, furrow raising spring

2шт.

16524B

HEADED PIN,7/16" x 1 1/4"

7/16 x 1-1/4 DLD-STD-HD PIN

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

24

525252R1

ANCHOR, leveling spring

1шт.
