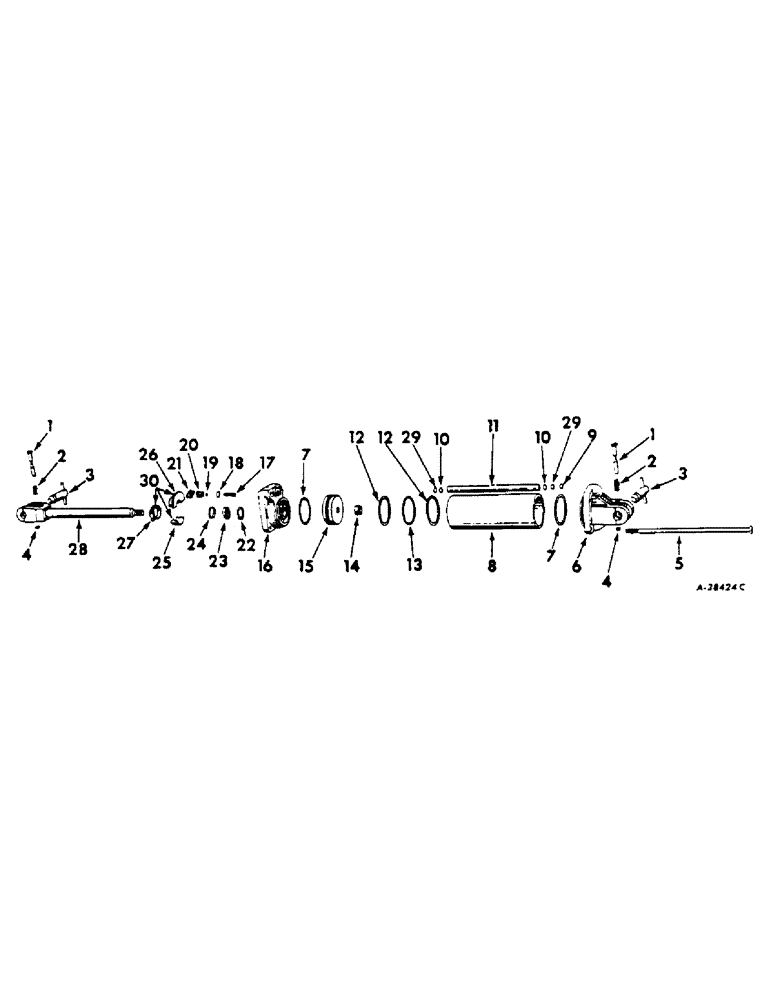

Запчасти Case IH 70 (E-33) - HYDRAULIC CYLINDER, FOR TRACTORS WITH 1/2 IN. PIPE THREAD HYDRAULIC OUTLETS

360997R92

CYLINDER ASSY, hydraulic, 3-1/2 x 8

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370

SPRING, lock pin

2шт.

3

352231R11

PIN

ASSY, cylinder pivot

2шт.

4

354837R1

WASHER

lock pin

2шт.

5

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

cylinder tie

4шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

4шт.

6

361002R3

HEAD

cylinder

1шт.

7

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

3-1/4 x 3-1/2 x 1/8

2шт.

8

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, cylinder

1шт.

9

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

354835R1

WASHER

cylinder return tube, use only w/two piece return tube

2шт.

11

354834R2

TUBE

cylinder return

1шт.

12

375936R1

BACK-UP RING

WASHER, piston head back-up

2шт.

13

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16

1шт.

14

385020R1

NUT

3/4-16 piston rod lock

1шт.

15

361003R1

HEAD

piston

1шт.

16

367615R11

HEAD

W/PLUGS, cylinder

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, cyl head

4шт.

17

361006R1

VALVE ASSY, limit stop

1шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

19

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 x 1/16

1шт.

20

361007R11

RETAINER

ASSY, limit stop valve

1шт.

21

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/7-20 x 9/16 hex-hd cap

2шт.

22

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING, 1-1/8 x 1-9/16 x 7/32

1шт.

23

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

24

354049R1

RETAINER

piston rod dust seal

1шт.

25

360372R1

COLLAR

stroke limit plain half

1шт.

26

360010R1

COLLAR, stroke limit flanged half

1шт.

27

361085R91

CLAMP

stroke limit collar

1шт.

28

361005R12

NO LONGER SERVICED

ROD ASSY, piston

1шт.

29

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

30

375426R91

COLLAR

ASSY, stroke limit

1шт.

392503R1

PIN

SCREW, thumb

1шт.

363138R92

SEAL KIT

PACKAGE, cylinder o-ring, consists of ref nos. 7, 12, 13, 18, 19, 22, 23 & 29

1шт.
