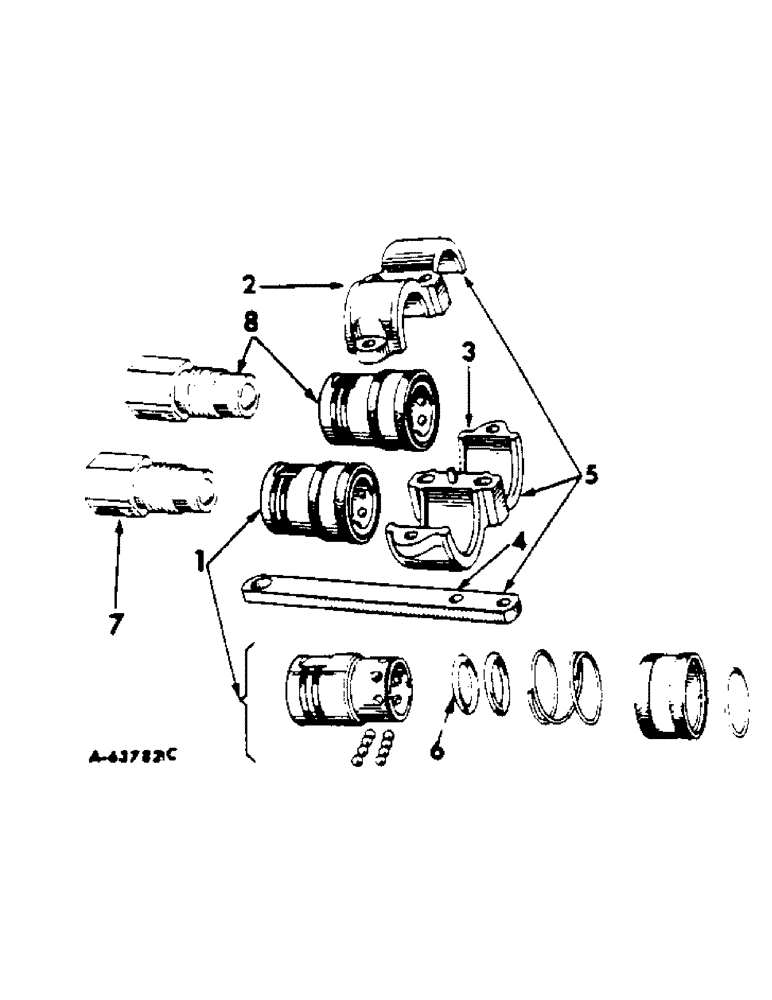

Запчасти Case IH 70 (E-32) - BREAK-AWAY COUPLING, TRACTORS WITH 1/2 IN. PIPE THREAD HYDRAULIC OUTLETS

385541R92

COUPLING ASSY, break-away

1шт.

1

374793R92

COUPLING ASSY, self-sealing female

2шт.

2

CLAMP, frame, order frame 371110R91

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

FRAME, coupling, order frame, 371110R91

1шт.

4

371116R1

BAR

BRACKET, frame

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16 -18 x 1-1/2 C-Z hex-hd cap

2шт.

5

371110R91

FRAME

ASSY, coupling

1шт.

6

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8

4шт.

7

388989R91

UNION

ADAPTER ASSY

2шт.

8

388987R91

COUPLING

UNION & FEMALE COUPLING ASSY

2шт.
