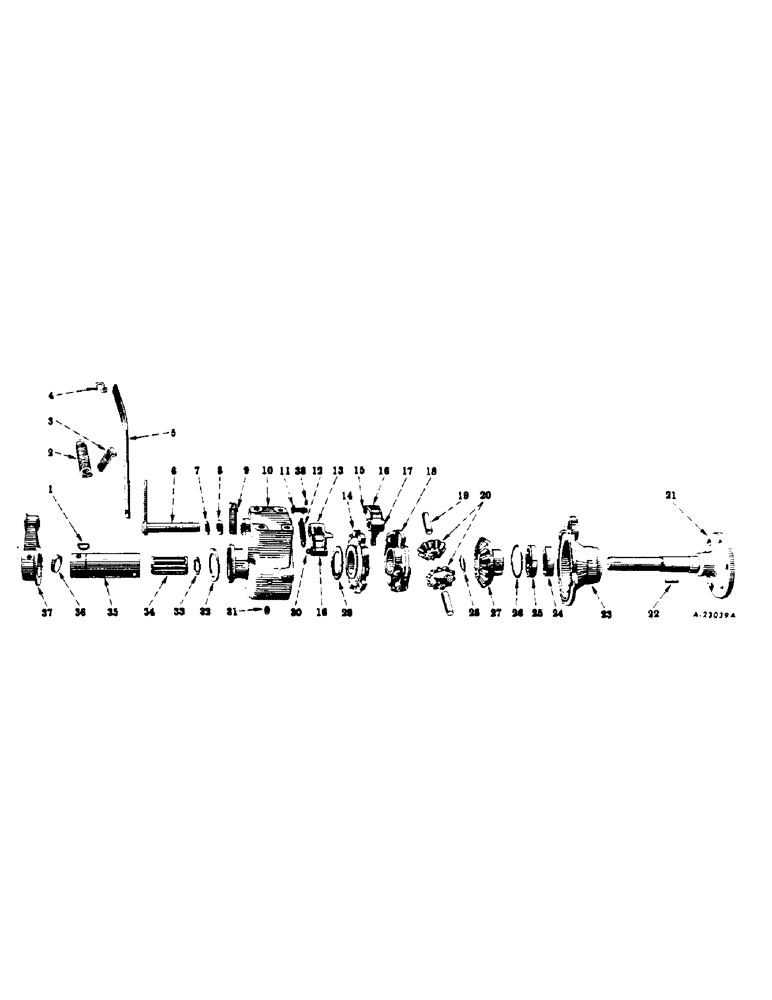

Запчасти Case IH 70 (E-25) - BEVEL GEAR LIFT

1

113879

KEY

5/6 x 1-1/4, lift arm sleeve

1шт.

2

PO93

SPRING

trip lever

1шт.

3

PO27163

ANCHOR, trip lever spring

1шт.

5/16 x 3/4 MACH BOLT

1шт.

5/16 NUT

1шт.

5/16 LOCK WASHER

1шт.

4

512749R1

HOOK

trip rope

1шт.

5

PO27167

LEVER, trip

1шт.

3/8 x 1 MACH BOLT

2шт.

3/8 LOCK WASHER

2шт.

3/8 NUT

1шт.

6

PO27171

SHAFT, trip

1шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

7

21868V

WASHER

29/32 x 1-1/2 x 16 ga

1шт.

8

10167VA

WASHER, 7/8 x 1-1/2 x 1-1/4

1шт.

9

PO27162

ANCHOR, trip lever spring

1шт.

10

512861R2

HOUSING, lift

1шт.

5/8 x 1-1/4 MACH BOLT

4шт.

5/8 LOCK WASHER

4шт.

11

PO27154

ANCHOR W/NUT, driving arm spring

1шт.

3/8 NUT

1шт.

3/8 LOCK WASHER

1шт.

12

PO27851

VALVE SPRING

SPRING, driving arm

1шт.

13

PO3047

ARM, driving, order arm assy, driving, 515736R91

1шт.

13

515736R91

ARM ASSY, driving, composed of, (1) arm PO3047, (1) pin PO27155, (1) roller PO27156A

1шт.

14

512859R2

GEAR, scalloped

1шт.

15

PO27157

PIN, trip arm roller

1шт.

16

PO27156A

ROLLER, driving arm and trip arm

1шт.

17

PO3045

ARM, trip, order arm assy, 515755R91

1шт.

17

515755R91

ARM

ASSY, trip, composed of, (1) arm PO3045, (1) pin PO27157, (1) roller PO27156A

1шт.

18

590517R1

PLATE, clutch

1шт.

590317R1

2-7/16 x 3-1/2 x 18 GA WASHER, between clutch plate and scalloped gear

1шт.

19

512866R2

PIN, bevel pinion gear

1шт.

3/16 x 1-1/4 RD-HD RIVET

2шт.

20

PO3043A

GEAR, bevel pinion

1шт.

21

515739R2

SHAFT, land wheel

1шт.

1/2 x 1-1/2 CRG BOLT W/NUT, FOR 4 FURROW

6шт.

1/2 x 1 CAP SCREW, FOR 4/3 FURROW

6шт.

1/2 LOCK WASHER

6шт.

22

117984

BUCKET TOOTH KEY

KEY, 5/16 x 1-3/8 land wheel shaft

1шт.

23

512858R1

COVER, lift housing

1шт.

3/8 x 1 CAP SCREW

3шт.

3/8 x 1-1/4 CAP SCREW

1шт.

3/8 LOCK WASHER

4шт.

24

61894C1

SEAL, housing cover oil, replaces, 512888R91

1шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

26

512889R1

RING

SNAP RING, housing cover

1шт.

27

512860R2

GEAR, drive bevel

1шт.

28

359141R1

RING, SNAP

SNAP RING, land wheel shaft

1шт.

29

PO27915

WASHER, 2-13/32 x 2-13/16 x 18 ga wear

1шт.

30

PO27155

PIN, driving arm

1шт.

31

9617020

PLUG,1/4" - 18 x 0.48"

1/4 sq-hd pipe

1шт.

32

512887R91

SEAL, lift housing oil

1шт.

33

PO27165

WASHER, 1-9/32 x 1-23/32 x 1/8 retaining

1шт.

34

H49406

BEARING, land wheel shaft roller

1шт.

35

512867R11

SLEEVE W/OIL PLUG, lift arm

1шт.

36

512869R1

PLUG

oil

1шт.

37

512862R1

ARM, lift, for 3 and 4/3 furrow, hole spacing 5-3/4

1шт.

3/16 x 3/4 SELF-OPENING COT PIN

1шт.

512868R1

1/2 x 3-5/8 DLD-STD-HD PT PIN

1шт.

38

516646R1

GASKET, spring anchor

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub, in lift arm

1шт.
