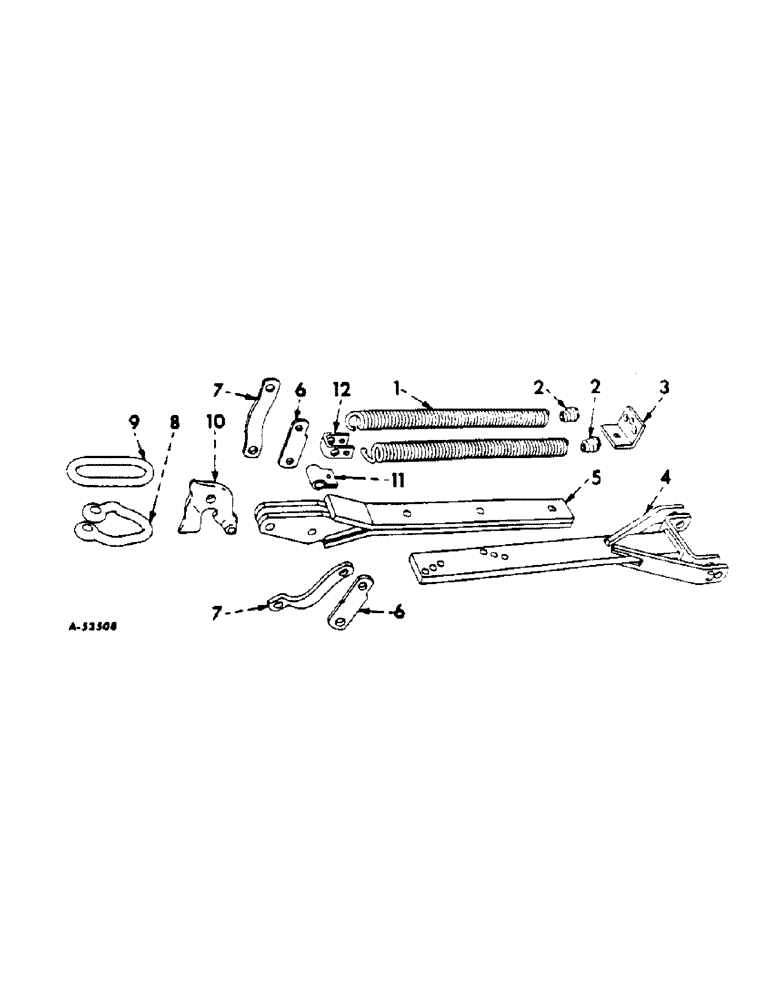

Запчасти Case IH 70 (E-23) - SPRING RELEASE HITCH

1

PO179

SPRING, trip

1шт.

2

520201R1

PLUG, spring

2шт.

520950R1

5/8 x 2-1/2 MACH BOLT

2шт.

3

519013R2

BRACKET, spring

1шт.

5/8 x 2-1/2 NO. 3 PLOW BOLT

1шт.

5/8 LOCK WASHER

1шт.

4

525326R11

BAR, short hitch pull, 31-1/2 overall

1шт.

4

525321R11

BAR, long hitch pull, 56-1/2 overall

1шт.

5

519014R91

BAR, pull

1шт.

5/8 x 3 MACH BOLT

1шт.

5/8 x 3-1/2 MACH BOLT

1шт.

5/8 LOCK WASHER

2шт.

6

520900R1

LINK, short toggle

2шт.

SA4851

AXLE PIN

5/8 x 3-3/8 DLD-STD-HD PIN

2шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

2шт.

21/32 x 1 x 11 GA WASHER

2шт.

7

PO16457

LINK, long toggle

2шт.

SA4851

AXLE PIN

5/8 x 3-3/8 DLD-STD-HD PIN

2шт.

SA4852

5/8 x 4-1/8 DLD-STD-HD PIN

2шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

4шт.

8

PO26667A

CLEVIS

twisted

1шт.

231-14012

LOCK NUT,3/4"-10, GB

3/4 STOP NUT

1шт.

3/4 x 4 CAP SCREW

1шт.

9

PO20183

CLEVIS, tractor

1шт.

10

PO16459A

HOOK, draft

1шт.

SA3760

3/4 x 2-5/8 DLD-STD-HD PIN

1шт.

5/16 x 1-1/4 SELF-OPENING COT PIN

1шт.

11

SA4864

ANCHOR, single spring front

1шт.

12

SA4857

ANCHOR, double spring front

1шт.
