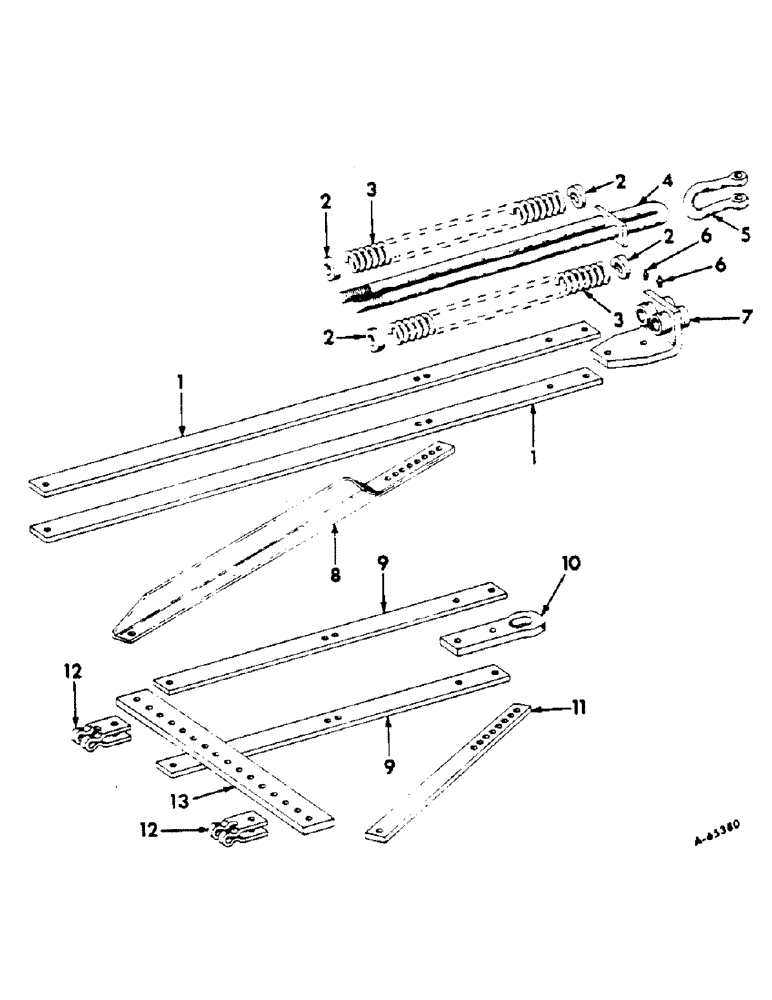

Запчасти Case IH 70 (E-22) - CROSS BAR HITCH

1

464779R1

DRAWBAR, hitch, 62 in. long

2шт.

231-14012

LOCK NUT,3/4"-10, GB

3/4 STOP NUT

1шт.

3/4 x 2-3/4 CAP SCREW

1шт.

2

PO2932

RETAINER

spring, cushion spring hitch

4шт.

3

PO25835

SPRING

cushion, cushion spring hitch

2шт.

4

464782R11

ROD, guide, cushion spring hitch

1шт.

1-1/2 NUT

1шт.

5

PO13563

CLEVIS COUPLING

CLEVIS, hitch

1шт.

231-14012

LOCK NUT,3/4"-10, GB

3/4 STOP NUT

1шт.

3/4 x 4 CAP SCREW

1шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

7

464784R11

BRACKET, hitch attaching, cushion, spring hitch

1шт.

5/8 NUT

2шт.

5/8 x 2-1/2 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

8

464781R1

BAR, diagonal, 50.5 in. long

1шт.

9

464778R1

DRAWBAR, hitch, 38 in. long

2шт.

10

464780R1

EXTENSION, pullbar, rigid hitch

1шт.

5/8 NUT

2шт.

5/8 x 2-1/2 CAP SCREW

1шт.

5/8 x 3 CAP SCREW

1шт.

5/8 LOCK WASHER

2шт.

11

464776R1

BAR, diagonal, 30.5 in. long

1шт.

5/8 NUT

1шт.

3/4 NUT

1шт.

5/8 x 2-1/2 CAP SCREW

1шт.

3/4 x 2-1/4 CAP SCREW

1шт.

5/8 LOCK WASHER

1шт.

3/4 LOCK WASHER

1шт.

12

464777R1

CLEVIS, hitch bar

2шт.

231-14012

LOCK NUT,3/4"-10, GB

3/4 STOP NUT

2шт.

724775R1

HEADED PIN,3/4" x 3 1/4"

3/4 x 3-1/4 DLD-STD-HD PIN

2шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

2шт.

3/4 x 2-1/2 CAP SCREW

2шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 GA WASHER

4шт.

13

464775R1

CROSSBAR

1шт.
