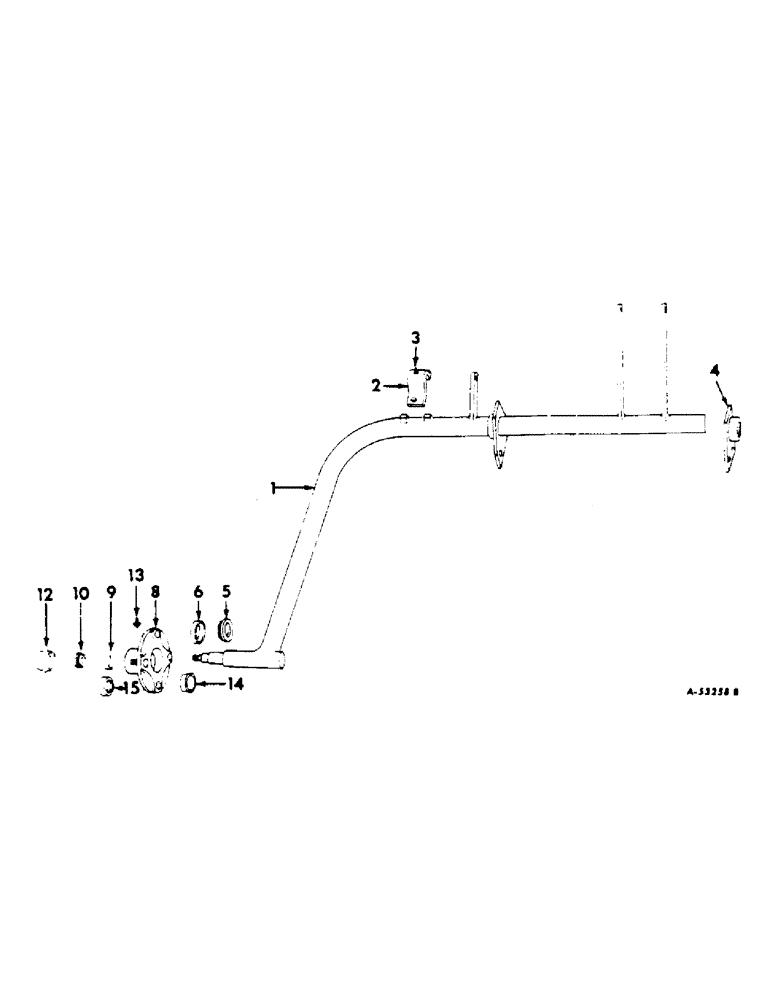

Запчасти Case IH 70 (E-13) - FURROW AXLE

1

526236R92

AXLE, 14 in. front furrow, Serial Range: 1958-1961

1шт.

1

526237R92

AXLE, 16 in. front furrow, Serial Range: 1958-1961

1шт.

1

467485R92

AXLE, 14 in. front furrow, 1961 & up

1шт.

1

467486R92

AXLE, 16 in. front furrow, 1961 & up

1шт.

.

5/8 x 2-1/4 MACH BOLT

2шт.

.

69442D

NUT

3/4 HEX NUT

1шт.

.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

.

472634R1

WASHER

25/32 x 1-3/4 x 11 GA WASHER

1шт.

2

525158R1

CAP, axle bearing

1шт.

.

5/8 x 1-1/2 MACH BOLT

2шт.

.

5/8 LOCK WASHER

2шт.

3

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

1шт.

4

525156R1

BEARING, furrow axle

1шт.

.

5/8 x 2-1/4 MACH BOLT

2шт.

.

5/8 LOCK WASHER

2шт.

5

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, furrow wheel hub inner cone, 1958 to 1962

1шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, furrow wheel inner cone, 1963 & up

1шт.

6

651817R1

BEARING CUP

BEARING, furrow wheel hub inner cup

1шт.

7

(Not used this application)

1шт.

8

461892R31

HUB W/BOLTS AND CUPS, Serial Range: 1958-1962

1шт.

.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2 x 1-5/8, SPECIAL, BOLT

4шт.

.

453770R1

WHEEL NUT

1/2 UNF CONICAL NUT

4шт.

8

472220R11

HUB

W/SET SCREW, 1963 & up

1шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 x 15/16 CONICAL-HD BOLT

4шт.

9

651814R1

BEARING CUP

BEARING, furrow wheel hub outer cup

1шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, furrow wheel hub outer cone

1шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

11

(Not used this application)

1шт.

12

651194R1

CAP

furrow wheel

1шт.

13

1101746R91

FITTING, 1/4 str lub, 1963 & up

1шт.

14

472222R1

SLEEVE

oil seal wear, 1963 & up

1шт.

15

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil, 1963 & up

1шт.
