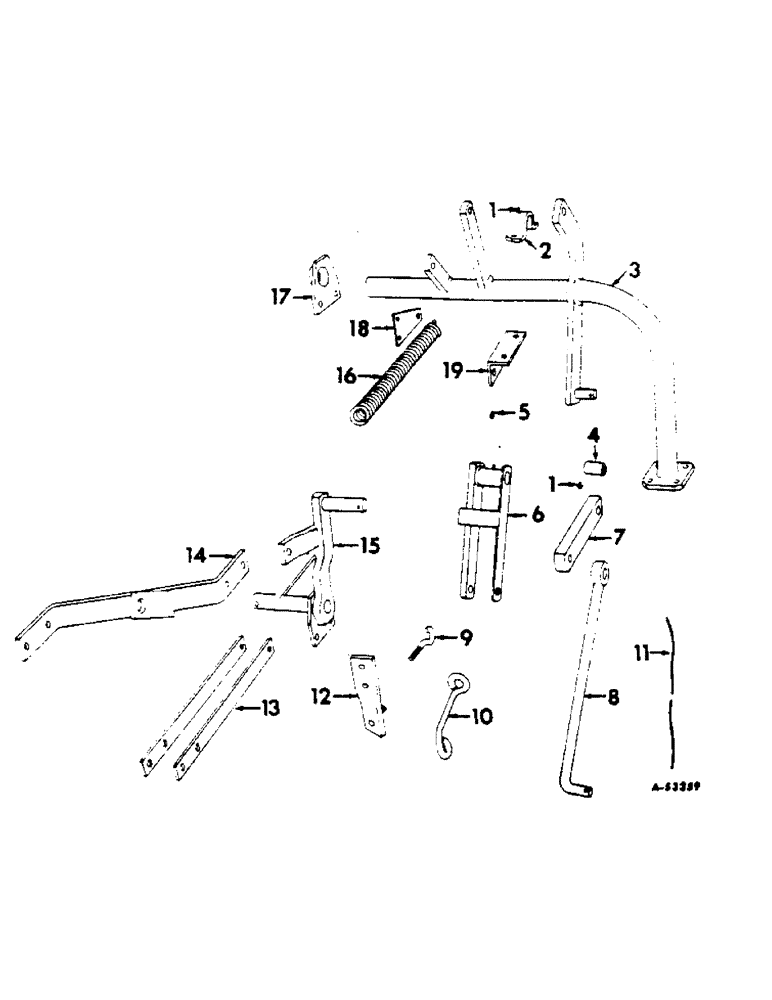

Запчасти Case IH 70 (E-12) - LAND AXLE AND PITMAN LINK
№
Артикул
Название
Примечание
Количество
1
125617
LUBE NIPPLE,3/16" x .61 lg, Drive
FITTING, 3/16 drive type str lub
2шт.
2
525158R1
CAP, axle bearing
2шт.
3
525244R11
AXLE, 14 in. land, Serial Range: 1958-1961
1шт.
3
525245R11
AXLE, 16 in. land, Serial Range: 1958-1961
1шт.
3
469851R11
AXLE, 14 in. land, 1962 & up
1шт.
3
469852R11
AXLE, 16 in. land, 1962 & up
1шт.
1/4 x 1-3/4 SELF-OPENING COT PIN
1шт.
Q3483
WASHER
1-9/32 x 2 x 11 GA WASHER
1шт.
4
518780R1
BUSHING, axle link stud
1шт.
5
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4 str lub
1шт.
6
525235R11
LINK, swinging
1шт.
7
518714R1
LINK, axle lifting
1шт.
8
525248R1
LINK, pitman, Serial Range: 1958-1961
1шт.
8
825185R1
LINK, pitman, 1962 & up
1шт.
1/4 x 1-3/4 COT PIN
2шт.
1 x 3-3/4 HD PIN
1шт.
Q3481
WASHER
1-1/32 x 1-1/2 x 16 GA WASHER
1шт.
9
S7363
EYEBOLT, raising spring
1шт.
1/2 NUT
2шт.
10
518652R1
GUIDE, trip rope
1шт.
5/8 NUT
1шт.
5/8 x 4-1/4 CAP SCREW
1шт.
5/8 LOCK WASHER
1шт.
21/32 x 1-1/2 x 11 GA WASHER
1шт.
11
ROPE, trip, 3/8 x 12-1/2 ft sisal, purchase locally
1шт.
12
525172R11
ANCHOR ASSY, helper spring
1шт.
5/8 x 2-1/4 MACH BOLT
1шт.
5/8 NUT
1шт.
5/8 LOCK WASHER
1шт.
13
525237R1
LINK, depth adjusting
2шт.
3/16 x 1 SELF-OPENING COT PIN
2шт.
5/8 x 1-5/8 HD PIN
2шт.
5/8 x 2-1/4 HD PIN
2шт.
14
525257R11
BRACE ASSY, 14 in. frame, between 2nd & 3rd rail
1шт.
14
525258R11
BRACE ASSY, 16 in. frame, between 2nd & 3rd rail
1шт.
5/8 x 2-3/4 MACH BOLT
4шт.
5/8 NUT
1шт.
5/8 LOCK WASHER
4шт.
15
525260R91
BELLCRANK ASSY, depth adjusting
1шт.
5/8 x 2-1/2 MACH BOLT
1шт.
5/8 NUT
1шт.
5/16 x 2 SELF-OPENING COT PIN
1шт.
5/16 x 2-1/4 SELF-OPENING COT PIN
1шт.
5/8 LOCK WASHER
1шт.
Q2483
1-9/32 x 2 x 11 GA WASHER
1шт.
126A
WASHER
1-17/32 x 2 x 11 GA WASHER
1шт.
16
PO127
SPRING, raising
2шт.
17
525155R1
BEARING, land axle
1шт.
5/8 x 2-1/2 MACH BOLT
1шт.
18
525166R1
CLIP, helper spring
2шт.
3/16 x 1 SELF-OPENING COT PIN
2шт.
7/16 x 1-1/4 HD PIN
2шт.
19
525207R1
BRACKET, axle bearing
1шт.
5/8 x 2-3/4 MACH BOLT
2шт.
5/8 LOCK WASHER
2шт.
S7394
HOOK, trip rope
1шт.
Выбрано товаров: 56
