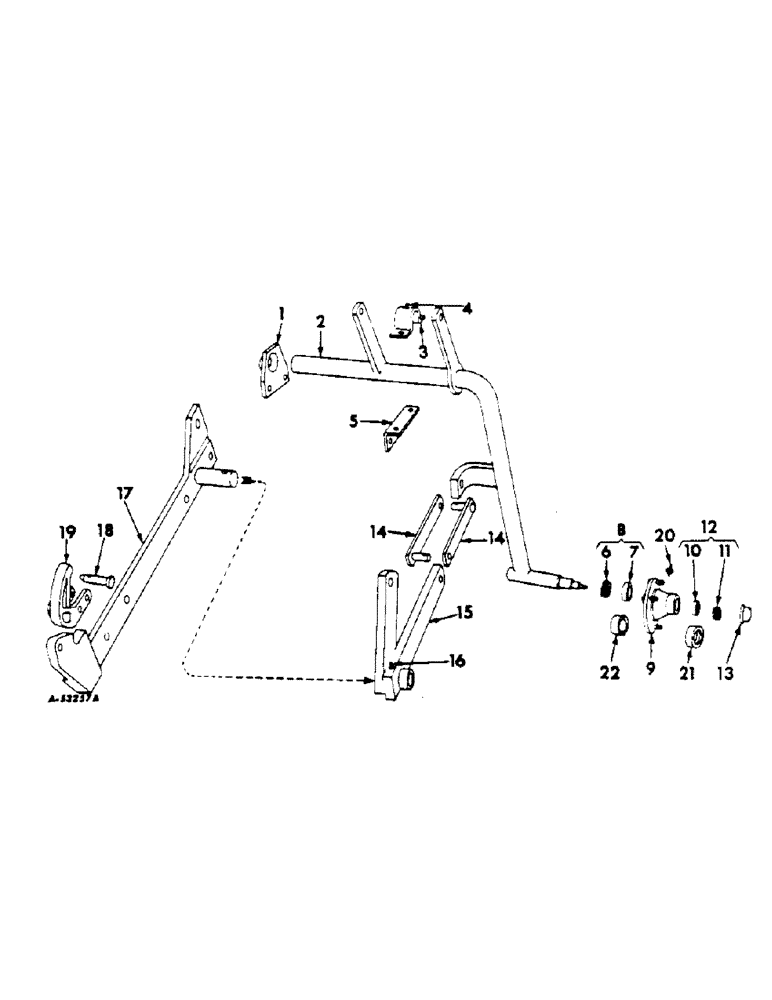

Запчасти Case IH 70 (E-11) - LAND AXLE AND CYLINDER SUPPORT

1

525155R1

BEARING, land axle

1шт.

.

5/8 x 1-1/2 HEX-HD MACH BOLT

2шт.

.

5/8 LOCK WASHER

2шт.

.

5/8 NUT

2шт.

2

525233R12

AXLE, 14 in. land, Serial Range: 1958-1961

1шт.

2

525234R12

AXLE, 16 in. land, Serial Range: 1958-1961

1шт.

2

467483R92

AXLE, 14 in. land, 1961 & up

1шт.

2

467484R92

AXLE, 16 in. land, 1961 & up

1шт.

.

69442D

NUT

3/4 HEX, SLT NUT

1шт.

.

1/8 x 1-1/4 COT PIN

1шт.

.

472634R1

WASHER

25/32 x 1-3/4 x 11 GA WASHER

1шт.

3

525158R1

CAP, axle bearing

2шт.

.

5/8 x 1-3/4 HEX-HD MACH BOLT

2шт.

.

5/8 LOCK WASHER

2шт.

.

5/8 NUT

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

1шт.

5

525207R1

BRACKET, axle bearing

1шт.

.

5/8 x 2-1/4 HEX-HD MACH BOLT

2шт.

.

5/8 LOCK WASHER

2шт.

.

5/8 NUT

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, land wheel hub inner cone, 1963 & up

1шт.

7

651817R1

BEARING CUP

BEARING, land wheel hub inner cup

1шт.

8

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, land wheel hub inner, 1958 to 1962

1шт.

9

461892R31

HUB W/BOLTS AND CUPS, land wheel, Serial Range: 1958-1962

1шт.

.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2 x 1-5/8, SPECIAL BOLT

4шт.

.

453770R1

WHEEL NUT

1/2 CONICAL NUT

4шт.

9

472220R11

HUB

W/SET SCREW, 1963 &up

1шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 x 15/16 CONICAL-HD BOLT

4шт.

10

651814R1

BEARING CUP

BEARING, land wheel hub outer cup

1шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, land wheel hub outer cone

1шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

12

651816R91

BEARING ASSY,7.5" ID x 17.82" OD x 6"

BEARING ASSY, land wheel hub outer, order, 651814R1 and 651815R91

1шт.

13

651194R1

CAP

land wheel hub

1шт.

14

525228R11

LINK, Pitman

2шт.

.

1/4 x 1-1/4 SELF-OPENING COT PIN

4шт.

15

525230R11

BELLCRANK, cylinder

1шт.

16

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

1шт.

17

525261R21

SUPPORT, cylinder

1шт.

.

5/8 x 2-1/2 HEX-HD MACH BOLT

2шт.

.

5/16 x 2-1/2 SELF-OPENING COT PIN

1шт.

.

5/8 LOCK WASHER

2шт.

.

1-17/32 x 2-1/4 x 11 GA WASHER

1шт.

18

512683R1

PIN

5/8 x 2-5/8 transport, 1958

1шт.

18

520277R1

PIN

5/8 x 2-13/16 transport, 1959 & up

1шт.

.

520175R1

CLIP

PIN, quick-attachable cot

1шт.

19

526263R1

RETAINER

cylinder bracket pin

1шт.

19

523736R1

RETAINER

cylinder bracket pin, order retainer, 526263R1, and pin, 520277R1

1шт.

.

D3375

PIN

1/2 x 2-1/8 DLD-STD-HD PIN

1шт.

.

3/16 x 1 SELF-OPENING COT PIN

1шт.

20

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 drive type str lub

1шт.

21

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil, 1963 & up

1шт.

22

472222R1

SLEEVE

oil seal wear, 1963 & up

1шт.
