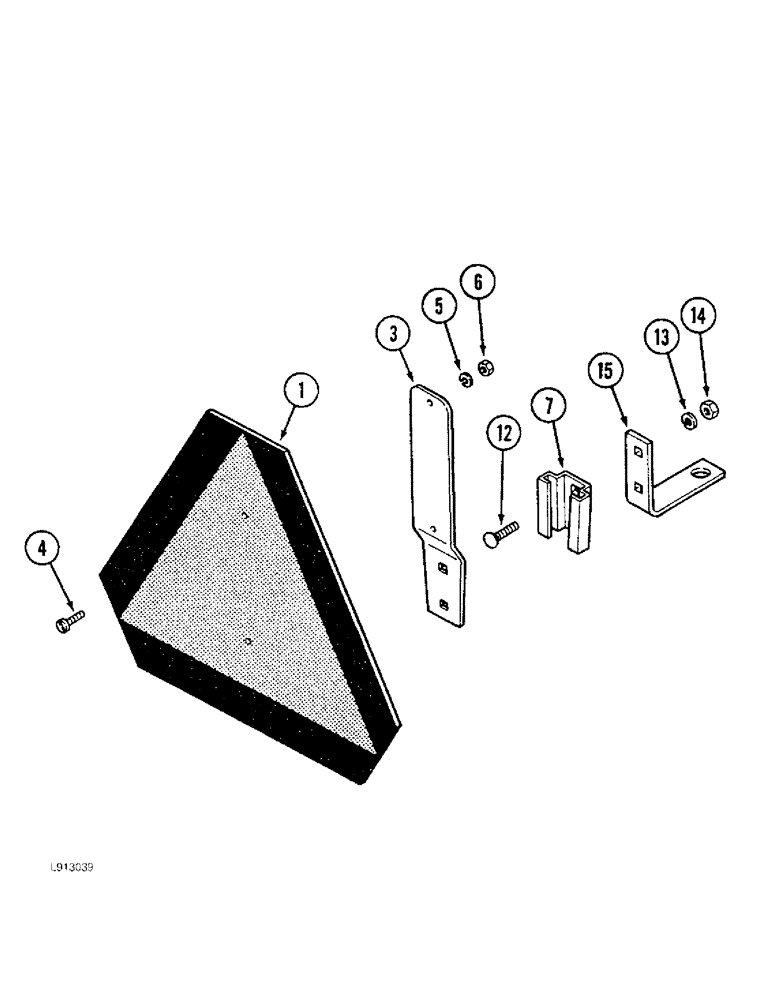

Запчасти Case IH 6650 (9-36) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

A59450

WARNING SIGN

EMBLEM ASSEMBLY - slow moving vehicle

1шт.

1

NSS

NOT SOLD SEPARAT

EMBLEM - slow moving vehicle

1шт.

311858A1

DECAL

SMV EMBLEM

1шт.

3

A59451

BRACKET

- emblem mounting

1шт.

4

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

5

495-81099

WASHER,0.2" ID x 0.5" OD x 0.06" Thk

- flat, 13/64 x 1/2 x 3/64 inch

2шт.

6

225-14110

NUT,#10-24

2шт.

7

A59457

BRACKET

- mounting

1шт.

12

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

2шт.

15

811324C1

SUPPORT

BRACKET - L-shaped

1шт.
