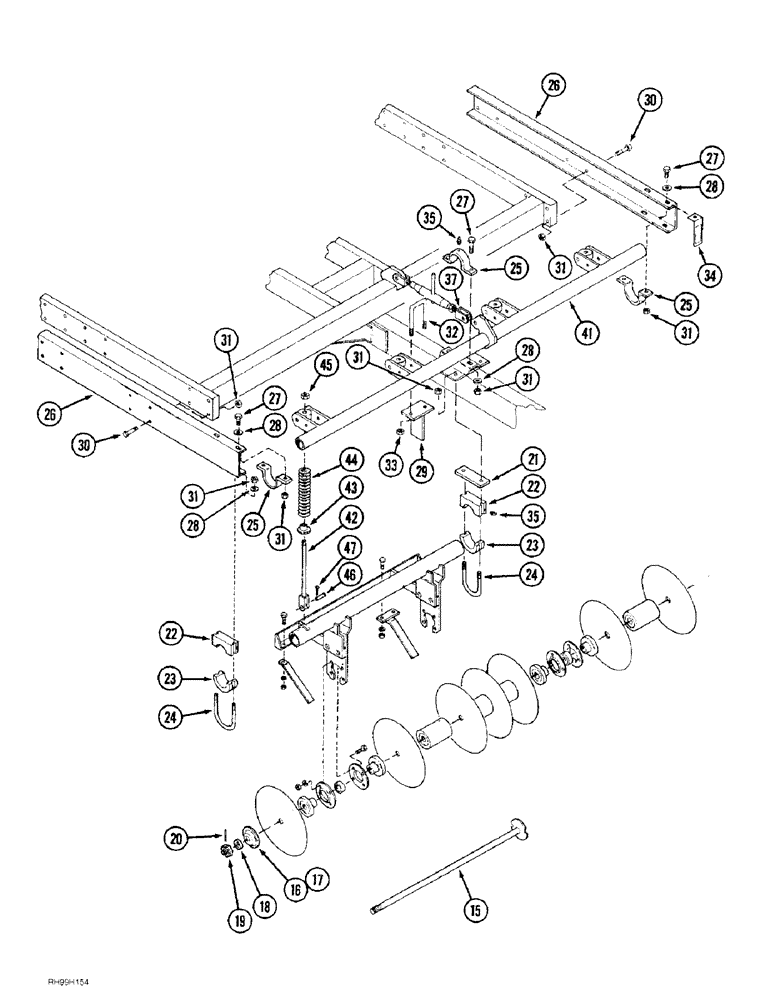

Запчасти Case IH 6650 (9-26) - DISC GROUP AND ROCKSHAFT, PRIOR TO P.I.N. CCG0003914 (09) - CHASSIS/ATTACHMENTS

15

1263536C5

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

- arbor, 1228 mm (48-11/32 inch) long

2шт.

15

1263613C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled

- arbor, 1619 mm (63-3/4 inch) long

2шт.

15

1263614C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled

- arbor, 2008 mm (79-1/16 inch) long

2шт.

15

1986247C3

SPECIAL BOLT,1 1/2" - 6 x 94.88"

BOLT - arbor, 2392 mm (94-3/16 inch) long

2шт.

16

139773C1

WASHER

WASHER - end, Belleville, 43 (1-11/16) ID x 112 mm (4-13/32 inch) OD, if used

2шт.

16

1344908C1

WASHER

- bumper, 40 (1-37/64) ID x 187 mm (7-3/8 inch) OD, if used

2шт.

17

1256982C1

WASHER

WASHER - flat, 1-9/16 x 6-27/32 x 19/64 inch, end

2шт.

18

1284383C1

WASHER

- arbor bolt

2шт.

19

425-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex, slotted, 1-1/2 inch NC

2шт.

20

438-12432

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

2шт.

21

1995983C1

BRACKET

- bearing retainer

2шт.

22

1995984C1

BEARING HALF

BEARING - upper

4шт.

23

1995985C1

BEARING HALF

BEARING - lower

4шт.

24

1995986C1

U-BOLT,3/4" - 10 x 7", Carbon Steel

- bearing retainer, 3/4 NC x 4-1/2 inch

4шт.

25

1995987C1

STRAP

- retainer

3шт.

26

1995988C1

CHANNEL

- disc mounting

2шт.

27

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

6шт.

28

495-11081

WASHER,3/4", SAE

10шт.

29

1995989C1

SCRAPER

- center

1шт.

30

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

16шт.

31

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

30шт.

32

1995990C1

U-BOLT,5/8" - 11 x 8-1/4"

- 5/8 NC x 8-1/4 inch

1шт.

33

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

2шт.

34

1995991C1

COVER

- with amber reflector, see page 9-39

1шт.

35

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

4шт.

37

REF

INSTRUCTION

TURNBUCKLE - implement jack, see page 9-35

1шт.

41

1995992C1

SHAFT

ROCKSHAFT ASSEMBLY - disc group, with swivels, 8 foot 9 inch frame

1шт.

41

1995993C1

SHAFT

ROCKSHAFT ASSEMBLY - disc group, with swivels, 11 foot 3 inch frame

1шт.

41

1995994C1

SHAFT

ROCKSHAFT ASSEMBLY - disc group, with swivels, 13 foot 9 inch frame

1шт.

41

1995995C1

SHAFT

ROCKSHAFT ASSEMBLY - disc group, with swivels, 16 foot 3 inch frame

1шт.

41a

235190A1

PIVOT

SWIVEL - (8, 11 and 13 foot frames), not shown

4шт.

41a

235190A1

PIVOT

SWIVEL - (16 foot frames), not shown

6шт.

42

1995996C1

ROD

- pressure (8, 11 and 13 foot frames)

4шт.

42

1995996C1

ROD

- pressure (16 foot frame)

6шт.

43

1995997C1

GUIDE

- pressure spring (8, 11 and 13 foot frames)

4шт.

43

1995997C1

GUIDE

- pressure spring (16 foot frame)

6шт.

44

1995998C1

SPRING

- pressure (8, 11 and 13 foot frames)

4шт.

44

1995998C1

SPRING

- pressure (16 foot frame)

6шт.

45

231-41114

LOCK NUT,7/8"-9, GB

NUT - hex, self-locking, 7/8 inch NC (8, 11 and 13 foot frames)

4шт.

45

231-41114

LOCK NUT,7/8"-9, GB

NUT - hex, self-locking, 7/8 inch NC (16 foot frames)

6шт.

46

21805R1

PIN

- clevis, 5/8 x 2-1/8 inch (8, 11 and 13 foot frames)

4шт.

46

21805R1

PIN

- clevis, 5/8 x 2-1/8 inch (16 foot frame)

6шт.

47

1980543C1

HAIR PIN COTTER

PIN - cotter, hair, 5/32 inch diameter (8, 11 and 13 foot frames)

4шт.

47

1980543C1

HAIR PIN COTTER

PIN - cotter, hair, 5/32 inch diameter (16 foot frames)

6шт.
