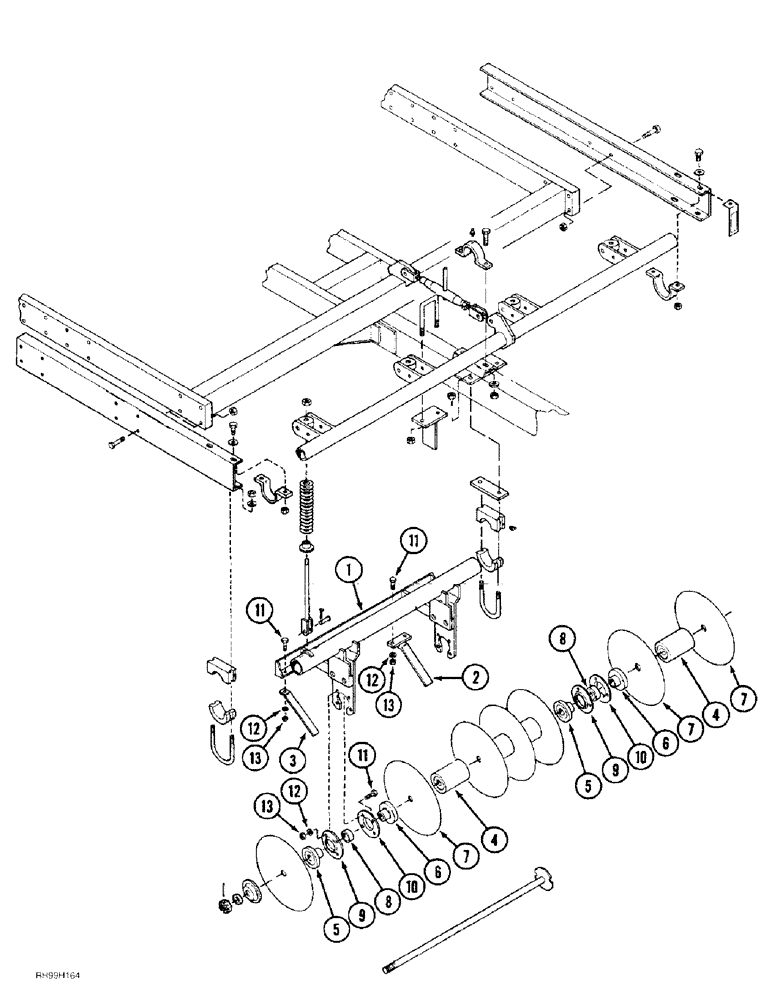

Запчасти Case IH 6650 (9-22) - DISC GROUP AND ROCKSHAFT, PRIOR TO P.I.N. CCG0003914 (09) - CHASSIS/ATTACHMENTS

1

1995963C1

FRAME

- slicer, right-hand (7 shanks) no longer available, order 1995963C2 frame, see page 9-29

1шт.

1

1995964C1

FRAME

- slicer, left-hand (7 shanks) no longer available, order 1995964C2 frame, see page 9-29

1шт.

1

1995965C1

FRAME

- slicer, right-hand (9 shanks), no longer available, order 1995965C2 frame, see page 9-29

1шт.

1

1995966C1

FRAME

- slicer, left-hand (9 shanks), no longer available, order 1995966C2 frame, see page 9-29

1шт.

1

1995967C1

FRAME

- slicer, right-hand (11 shanks), no longer available, order 1995967C2 frame, see page 9-29

1шт.

1

1995968C1

FRAME

- slicer, left-hand (11 shanks) no longer available, order 1995968C2 frame, see page 9-29

1шт.

1

1995969C1

FRAME

- slicer, right-hand (13 shanks), no longer available, order 1995969C2 frame, see page 9-29

1шт.

1

1995970C1

FRAME

- slicer, left-hand (13 shanks), no longer available, order 1995970C2 frame, see page 9-29

1шт.

2

1995971C1

GUARD

- trash (7, 9, and 11 shanks)

4шт.

2

1995971C1

GUARD

- trash (13 shanks)

6шт.

3

1995972C1

GUARD

- trash, narrow (7 shanks)

8шт.

3

1995972C1

GUARD

- trash, narrow (9 shanks)

12шт.

3

1995972C1

GUARD

- trash, narrow (11 shanks)

16шт.

3

1995972C1

GUARD

- trash, narrow (13 shanks)

18шт.

4

1995973C1

SPOOL

- disc spacing (7 shanks)

8шт.

4

1995973C1

SPOOL

- disc spacing (9 shanks)

12шт.

4

1995973C1

SPOOL

- disc spacing (11 shanks)

16шт.

4

1995973C1

SPOOL

- disc spacing (13 shanks)

18шт.

5

1995974C1

SPOOL

BEARING - spool, long, 84 mm (3-19/64 inch) long (7, 9 and 11 shanks)

4шт.

5

1995974C1

SPOOL

BEARING - spool, long, 84 mm (3-19/64 inch) long (13 shanks)

6шт.

6

1995975C1

SPOOL

BEARING - spool, short, 72 mm (2-13/16 inch) long (7, 9 and 11 shanks)

4шт.

6

1995975C1

SPOOL

BEARING - spool, short, 72 mm (2-13/16 inch) long (13 shanks)

6шт.

7

28597R1

DISC

COULTER FLAT 20"

14шт.

7

28597R1

DISC

COULTER FLAT 20"

18шт.

7

28597R1

DISC

COULTER FLAT 20"

22шт.

7

28597R1

DISC

COULTER FLAT 20"

26шт.

8

T57851

BALL BEARING,38.1mm ID x 85mm OD x 30.18mm W

BEARING - ball (7, 9 and 11 shanks)

4шт.

8

T57851

BALL BEARING,38.1mm ID x 85mm OD x 30.18mm W

BEARING - ball (13 shanks)

6шт.

9

1995977C1

FLANGE

- bearing, with grease fitting (7, 9 and 11 shanks)

2шт.

9

1995977C1

FLANGE

- bearing, with grease fitting (13 shanks)

3шт.

10

1995978C1

FLANGED BEARING

FLANGE - bearing (7, 9 and 11 shanks)

2шт.

10

1995978C1

FLANGED BEARING

FLANGE - bearing (13 shanks)

3шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(7 shanks) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

32шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(9 shanks) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

36шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(11 shanks) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

40шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(13 shanks) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

54шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (7 shanks) 1/2"

32шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (9 shanks) 1/2"

36шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (11 shanks) 1/2"

40шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (13 shanks) 1/2"

54шт.

13

329-108

NUT,1/2"-13, G8

(7 shanks) 1/2"-13, G8

32шт.

13

329-108

NUT,1/2"-13, G8

(9 shanks) 1/2"-13, G8

36шт.

13

329-108

NUT,1/2"-13, G8

(11 shanks) 1/2"-13, G8

40шт.

13

329-108

NUT,1/2"-13, G8

(13 shanks) 1/2"-13, G8

54шт.
