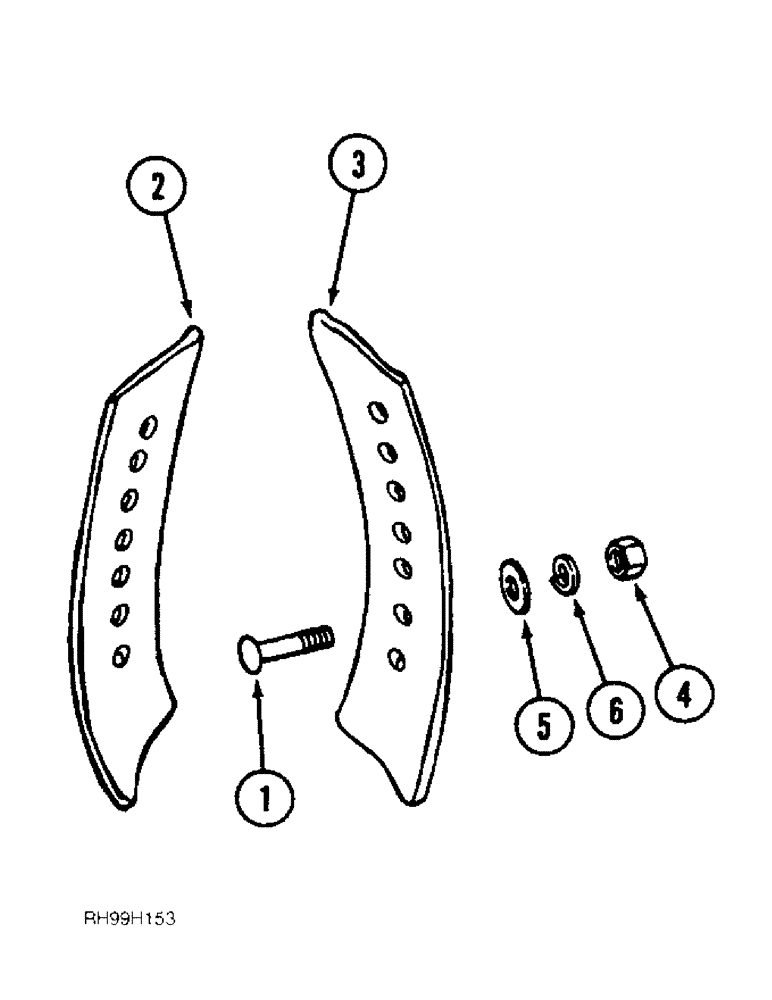

Запчасти Case IH 6650 (9-20) - SHOVEL, 7 SHANKS (09) - CHASSIS/ATTACHMENTS

7 SHANKS

1шт.

1

419-3848

PLOW BOLT,#3, 1/2" - 13 x 3", Gr 5

BOLT - plow, 1/2 NC x 3 inch

14шт.

2

812384C3

SHOVEL

- twisted, left throw

3шт.

3

812385C3

SHOVEL

- twisted, right throw

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

14шт.

5

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

7шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

14шт.

9 SHANKS

1шт.

1

419-3848

PLOW BOLT,#3, 1/2" - 13 x 3", Gr 5

BOLT - plow, 1/2 NC x 3 inch, 9 shanks

18шт.

2

812384C3

SHOVEL

- twisted, left throw, 9 shanks

5шт.

3

812385C3

SHOVEL

- twisted, right throw, 9 shanks

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 9 shanks 1/2"-13, G5

18шт.

5

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch, 9 shanks

9шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (9 shanks) 1/2"

18шт.

11 SHANKS

1шт.

1

419-3848

PLOW BOLT,#3, 1/2" - 13 x 3", Gr 5

BOLT - plow, 1/2 NC x 3 inch, 11 shanks

22шт.

2

812384C3

SHOVEL

- twisted, left throw, 11 shanks

5шт.

3

812385C3

SHOVEL

- twisted, right throw, 11 shanks

6шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 11 shanks 1/2"-13, G5

22шт.

5

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch, 11 shanks

11шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (11 shanks) 1/2"

22шт.

13 SHANKS

1шт.

1

419-3848

PLOW BOLT,#3, 1/2" - 13 x 3", Gr 5

BOLT - plow, 1/2 NC x 3 inch, 13 shanks

26шт.

2

812384C3

SHOVEL

- twisted, left throw, 13 shanks

6шт.

3

812385C3

SHOVEL

- twisted, right throw, 13 shanks

7шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 13 shanks 1/2"-13, G5

26шт.

5

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch, 13 shanks

13шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (13 shanks) 1/2"

26шт.
