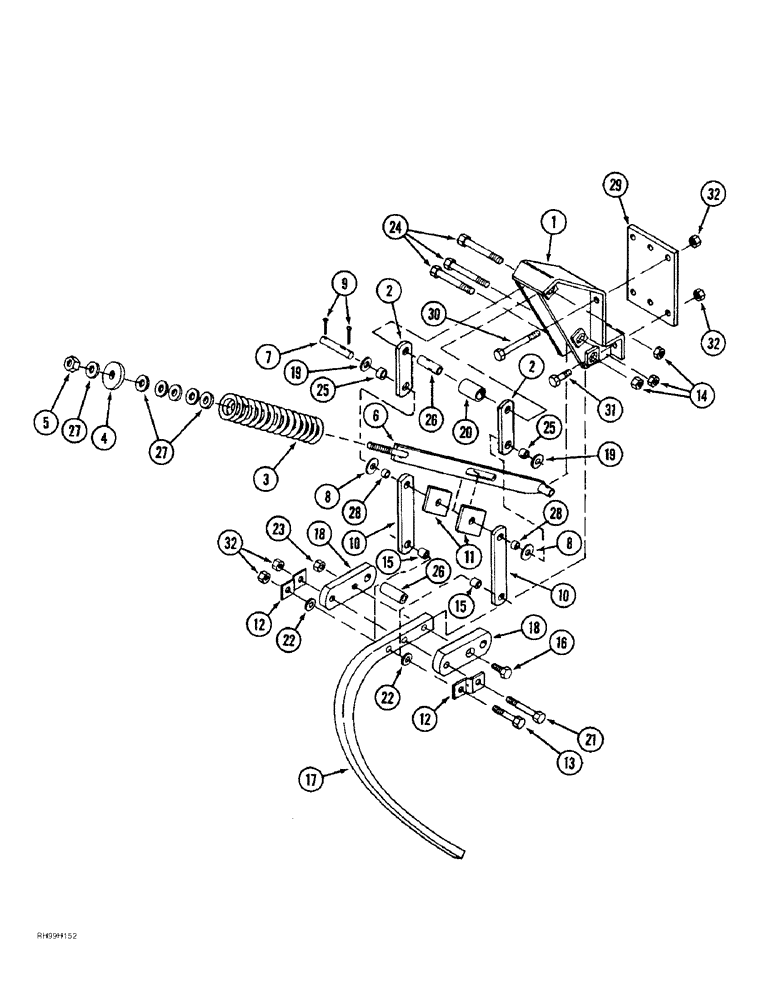

Запчасти Case IH 6650 (9-16) - SHANK, AUTOMATIC TRIP (09) - CHASSIS/ATTACHMENTS

1998487C1

ATTACHMENT - automatic reset shank assembly, complete, order from Machinery Price List

1шт.

1

1995999C1

MOUNTING PARTS

BRACKET - shank mounting

1шт.

2

1546900C1

BRACKET

LINK - shank mounting bracket

2шт.

3

1546901C1

SPRING

- pressure

1шт.

4

1546902C1

WASHER

- flat, 29/32 x 4-1/2 x 3/8 inch

1шт.

5

25-1614

NUT,7/8"-9, G5, Hvy

- hex, 7/8 inch NC

1шт.

6

1546903C1

ROD

- pressure

1шт.

7

1546904C1

PIN

- pressure rod

1шт.

8

495-81076

WASHER,26.19mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-1/32 x 2 x 1/16 inch, replaces 21885R1 washer

2шт.

9

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

10

1546905C1

BRACKET

- pressure rod

2шт.

11

1546906C1

PLATE

- pressure rod bracket

2шт.

12

1546907C1

STRIP

RETAINER - shank holder bracket

2шт.

13

326-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

1шт.

14

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

3шт.

15

1546908C1

BUSHING,16.28mm ID x 31.75mm OD x 18.26mm L

- pressure rod bracket, 21/32 x 1-1/4 x 23/32 inch

2шт.

16

1546909C1

BOLT,Hex, 5/8" - 18 x 2 3/4"

- hex, shank holder bracket, 5/8 NF x 2-3/4 inch

1шт.

17

1546910C1

SHANK

- leaf

1шт.

18

1546911C1

BRACKET

- shank holder

2шт.

19

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

2шт.

20

1546912C1

SPACER

- shank mounting bracket link

1шт.

21

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

1шт.

22

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

23

1546913C1

NUT

- hex lock special, 5/8 inch

1шт.

24

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

3шт.

25

97772C1

BUSHING

- mast

2шт.

26

1546915C1

BUSHING,19.05mm ID x 31.88mm OD x 92.08mm L

- 3/4 ID x 1-1/4 OD x 3-5/8 inch

2шт.

27

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch

6шт.

28

1546916C1

BUSHING,25.4mm ID x 31.75mm OD x 15.88mm L

- tension, pressure rod bracket, 1 ID x 1-1/4 OD x 5/8 inch, upper

2шт.

29

1546917C1

PLATE

- shank mounting bracket

1шт.

30

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

3шт.

31

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

32

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

8шт.
