(9-14) - AXLE ASSEMBLY WALKING BEAM, 13 FOOT 9 INCH FRAME, 16 FOOT 3 INCH FRAME

Запчасти Case IH 6650 (9-14) - AXLE ASSEMBLY WALKING BEAM, 13 FOOT 9 INCH FRAME, 16 FOOT 3 INCH FRAME (09) - CHASSIS/ATTACHMENTS

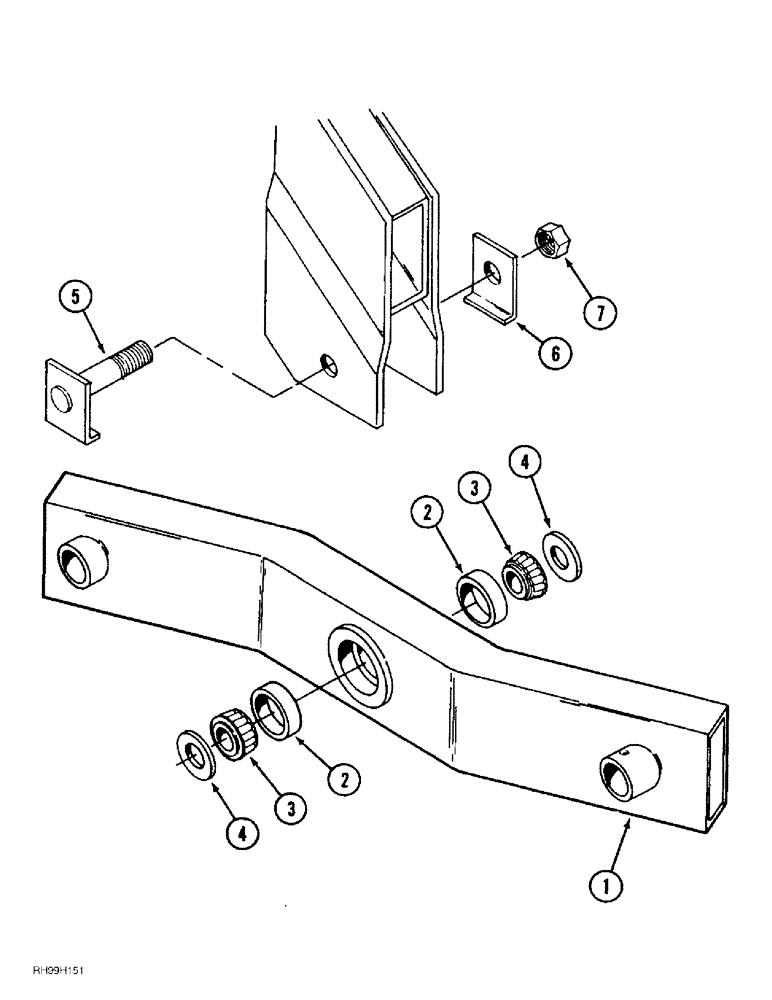

Схема запчастей Case IH 6650 - (9-14) - AXLE ASSEMBLY WALKING BEAM, 13 FOOT 9 INCH FRAME, 16 FOOT 3 INCH FRAME (09) - CHASSIS/ATTACHMENTS
7
3
2
6
5
4
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1995960C1

AXLE

- walking beam

2шт.

2

453012R1

BEARING CUP

CUP - tapered roller bearing, outer

4шт.

3

455256R91

ROLLER BEARING,1.5" ID x 2.717" OD x 1.0313"

CONE - bearing, inner

4шт.

4

G13800

SEAL

SEAL - oil

4шт.

5

1995961C1

BOLT

- axle

2шт.

6

1995962C1

RETAINER

- axle bolt

2шт.

7

231-41124

LOCK NUT,1 1/2"-6, GB

NUT - hex, self-locking, 1-1/2 inch NC, replaces 19-5641 nut

2шт.
