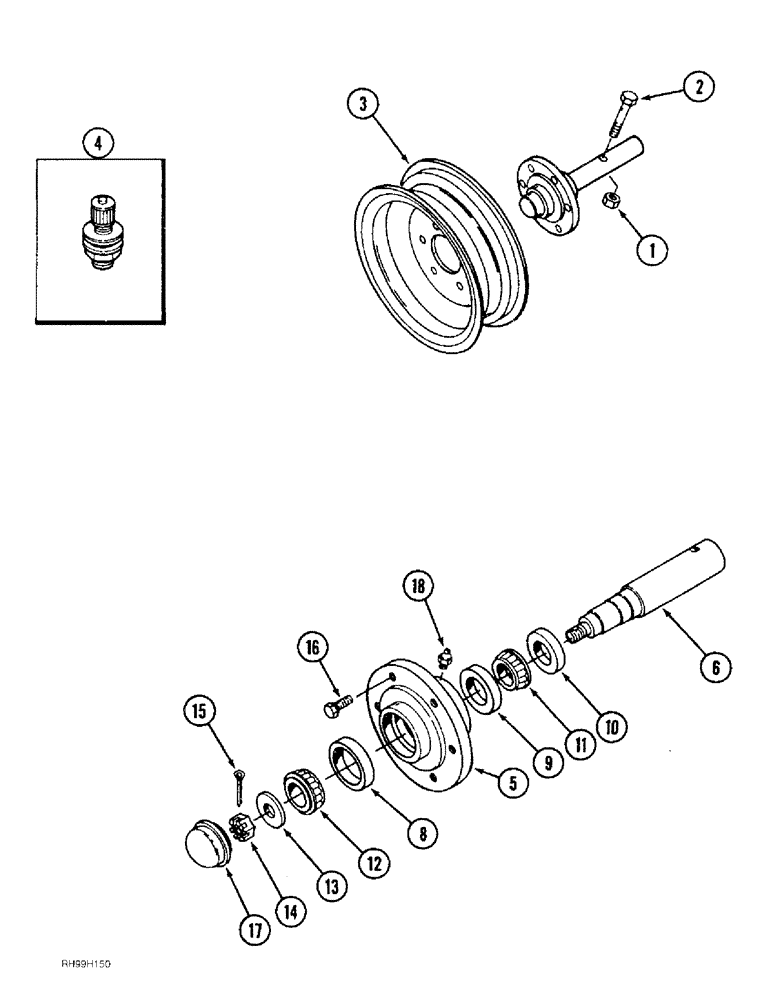

Запчасти Case IH 6650 (9-12) - WHEELS AND SPINDLES (09) - CHASSIS/ATTACHMENTS

1

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

2

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

2шт.

3

A57879

RIM

WHEEL - 15 x 8 inch, if used

2шт.

3

224270A1

RIM

WHEEL - with valve protector, 15 x 8, if used

2шт.

4

810769C1

VALVE

- inflation, steel

2шт.

5

1995948C1

HUB

ASSEMBLY - with bearings (Includes Ref 8, 9 and 18)

2шт.

6

1995947C1

SPINDLE

- wheel, 13 foot 9 inch and 16 foot 3 inch frames

4шт.

6

1546923C1

SPINDLE

- wheel, 8 foot 9 inch and 11 foot 3 inch frames

2шт.

8

651817R1

BEARING CUP

CUP - tapered roller bearing, replaces B12408 cup

2шт.

9

61801C1

BEARING CUP,63mm OD x 13.5mm W

CUP - tapered roller bearing, 2-31/64 inch OD

2шт.

10

1995949C1

SEAL

- wheel bearing

2шт.

11

61802C91

ROLLER BEARING,38mm ID x 17mm Thk

CONE - tapered roller bearing, 1-15/32 inch ID

2шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing

2шт.

13

495-31094

WASHER,0.94" ID x 2" OD x 0.17" Thk

- flat, 15/32 x 2 x 5/32 inch

2шт.

14

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8 inch NF

2шт.

15

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

16

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- hex, 1/2 NF x 1 inch

12шт.

17

518842R1

CAP

- hub, replaces T23707 cap

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.
