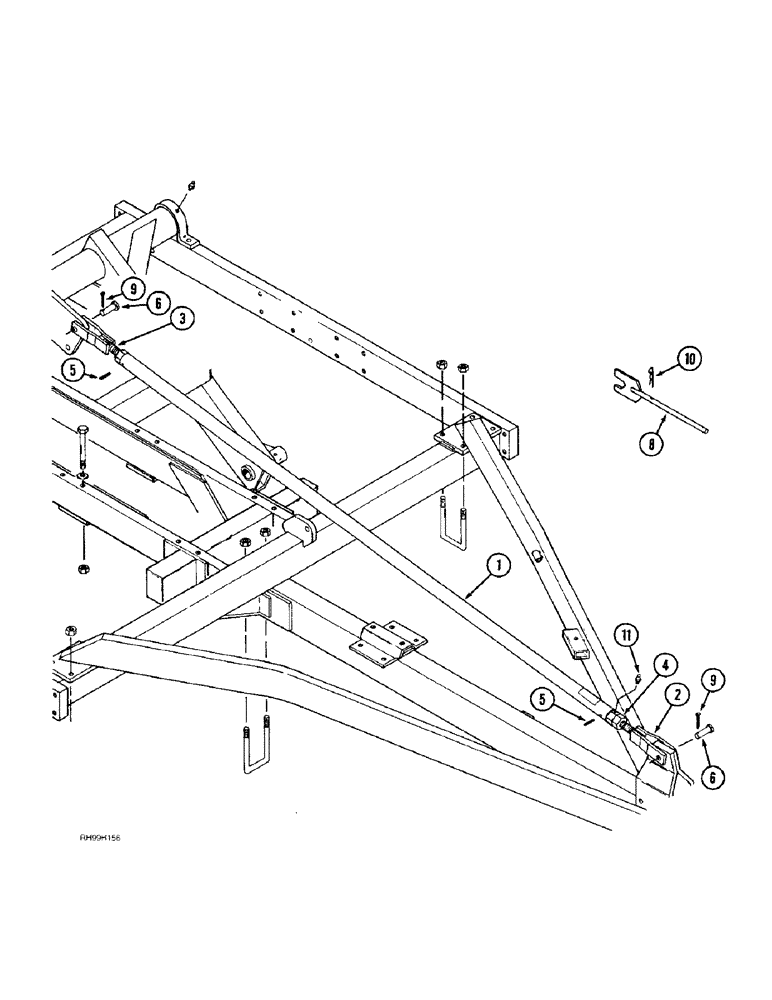

Запчасти Case IH 6650 (9-08) - DEPTH CONTROL LINKAGE (09) - CHASSIS/ATTACHMENTS

1

1995950C1

TURNBUCKLE

- depth control linkage

1шт.

2

1995951C1

STUD

- turnbuckle, right-hand

1шт.

3

1995952C1

STUD

- turnbuckle, left-hand

1шт.

4

60149C2

LOCK NUT

- hex, special, 1-1/4 inch NC

1шт.

5

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

replaces 26612R1 pin 1/4" x 1 1/2", Coiled

2шт.

6

127-216

CLEVIS PIN,1" x 3 1/4'"

PIN, CLEVIS, 1" x 3 1/4", Replaces 19-6092

2шт.

8

1995953C1

SPECIAL WRENCH

WRENCH - linkage adjusting

1шт.

9

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

10

1980543C1

HAIR PIN COTTER

PIN - cotter, hair, 5/32 inch diameter

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

12

198809A1

DECAL

- turnbuckle adjustment, not shown, see page 9-39

1шт.
