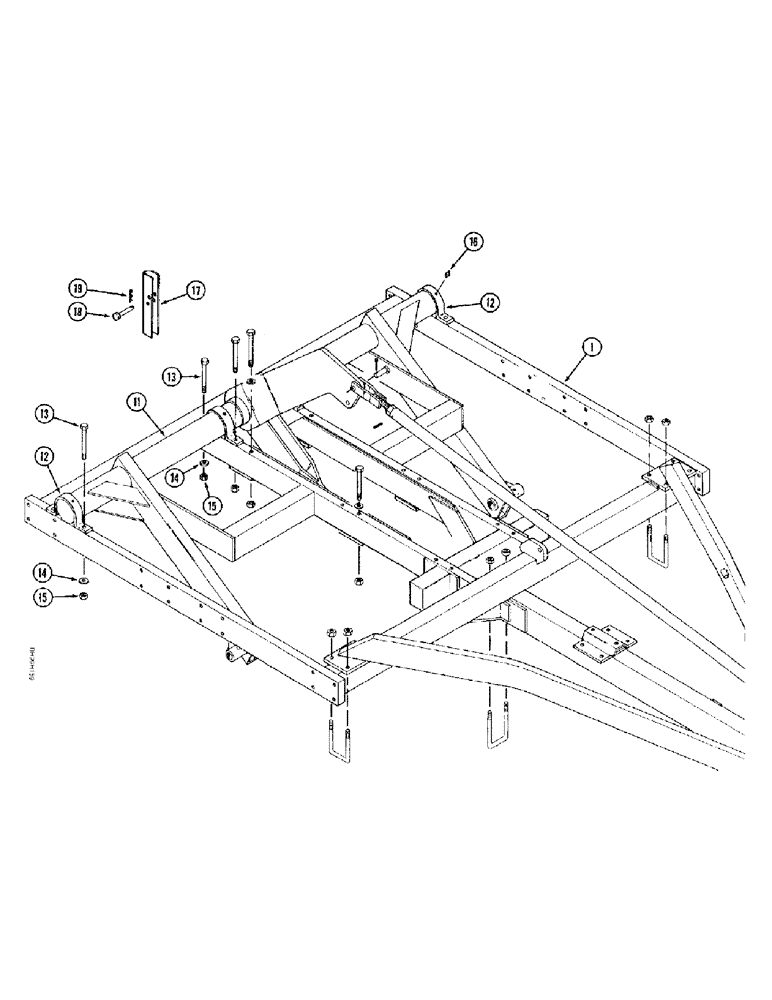

Запчасти Case IH 6650 (9-02) - MAIN FRAME, 8 FOOT 9 INCH WITH 7 SHANKS, 11 FOOT 3 INCH WITH 9 SHANKS (09) - CHASSIS/ATTACHMENTS

1

1995933C1

FRAME

ASSEMBLY - main, includes red reflectors, see page 9-39, 8 foot 9 inch, 7 shanks

1шт.

1

1995934C1

FRAME

ASSEMBLY - main, includes red reflectors, see page 9-39, 11 foot 3 inch, 9 shanks

1шт.

ref

Part No.

English

1шт.

11

1995954C1

ROCKSHAFT

- axle, 8 foot 9 inch frame

1шт.

11

1995955C1

ROCKSHAFT

- axle, 11 foot 3 inch frame

1шт.

12

1995958C1

STRAP

- rockshaft, 8 foot 9 inch

4шт.

12

1995958C1

STRAP

- rockshaft, 11 foot 3 inch

6шт.

13

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch, 8 foot 9 inch frame

6шт.

13

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch, 11 foot 3 inch frame

10шт.

14

495-11081

WASHER,3/4", SAE

8 foot 9 inch frame 3/4", SAE

6шт.

14

495-11081

WASHER,3/4", SAE

11 foot 9 inch frame 3/4", SAE

10шт.

15

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC, 8 foot 9 inch frame

6шт.

15

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC, 11 foot 3 inch frame

10шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, 8 foot 9 inch frame 1/4"-28 NPT x .54" lg

4шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, 11 foot 3 inch frame 1/4"-28 NPT x .54" lg

6шт.

17

1995959C1

BRACKET

- storage, 499 mm (19-5/8 inch) long

1шт.

18

22896R1

HEADED PIN,5/8" x 3"

PIN, HEADED, 5/8" x 3"

1шт.

19

1980543C1

HAIR PIN COTTER

PIN - cotter, hair, 5/32 inch diameter

1шт.
