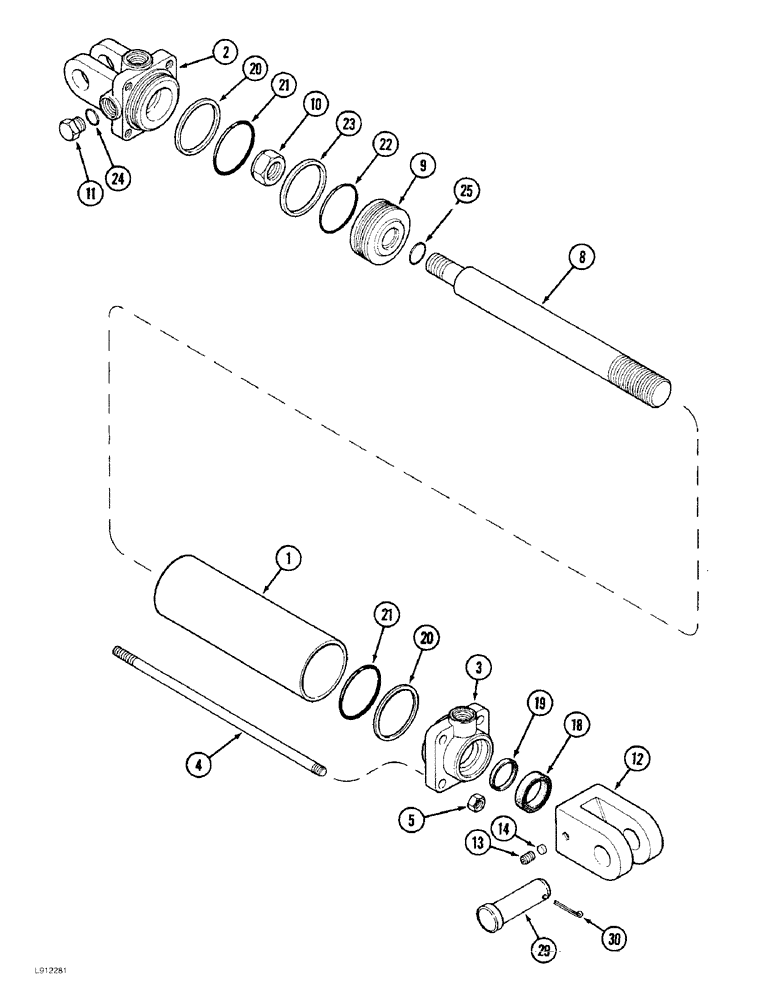

Запчасти Case IH 6650 (8-6) - HYDRAULIC CYLINDER, 3 X 8 INCH (08) - HYDRAULICS

1272146C91

CYLINDER

1шт.

1

NSS

NOT SOLD SEPARAT

1шт.

2

1272761C1

HEAD

- cylinder, rear

1шт.

3

1272762C1

HEAD

GLAND - cylinder, front

1шт.

4

1272747C1

TIE-ROD,7/16" - 14 x 12.25mm

1шт.

5

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

8

145543C1

ROD

- piston

1шт.

9

145225C2

PISTON

- cylinder

1шт.

10

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

11

214389

PLUG,3/4" - 16 ORB

1шт.

12

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

13

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

3/8 x 3/8

1шт.

14

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

18

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

20

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 2-3/4 ID x 1/8 inch

2шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 2-9/16 ID x 3/32 inch

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

29

427-16325

CLEVIS PIN,25.4mm OD x 82.55mm L

1шт.

30

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

79976C2

SEAL KIT

1шт.
