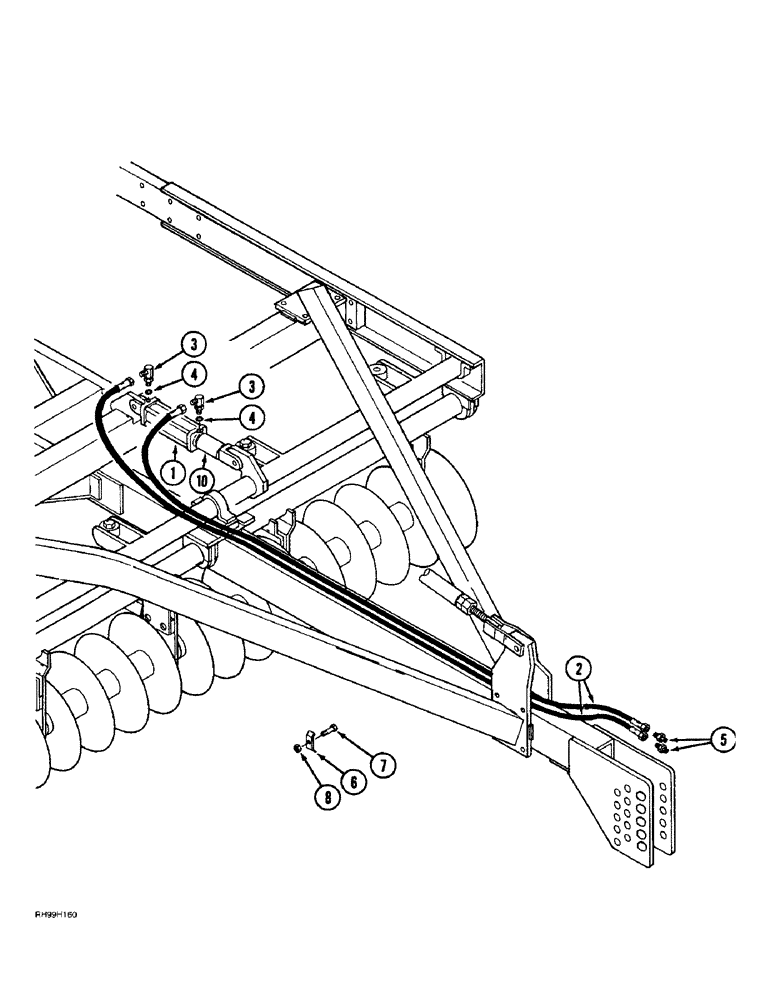

Запчасти Case IH 6650 (8-4) - HYDRAULIC CYLINDER DISC GROUP (08) - HYDRAULICS

1

1272146C91

CYLINDER

ASSEMBLY - hydraulic, 76 (3) ID x 203 mm (8 inch) stroke, disc group adjusting, parts list page 8-7

1шт.

2

1978106C1

HOSE

- 6096 mm (240 inch) long

2шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

6

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

2шт.

7

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

8

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

1шт.

10

145254C1

COLLAR ASSY.

COLLAR - cylinder stroke control

1шт.
