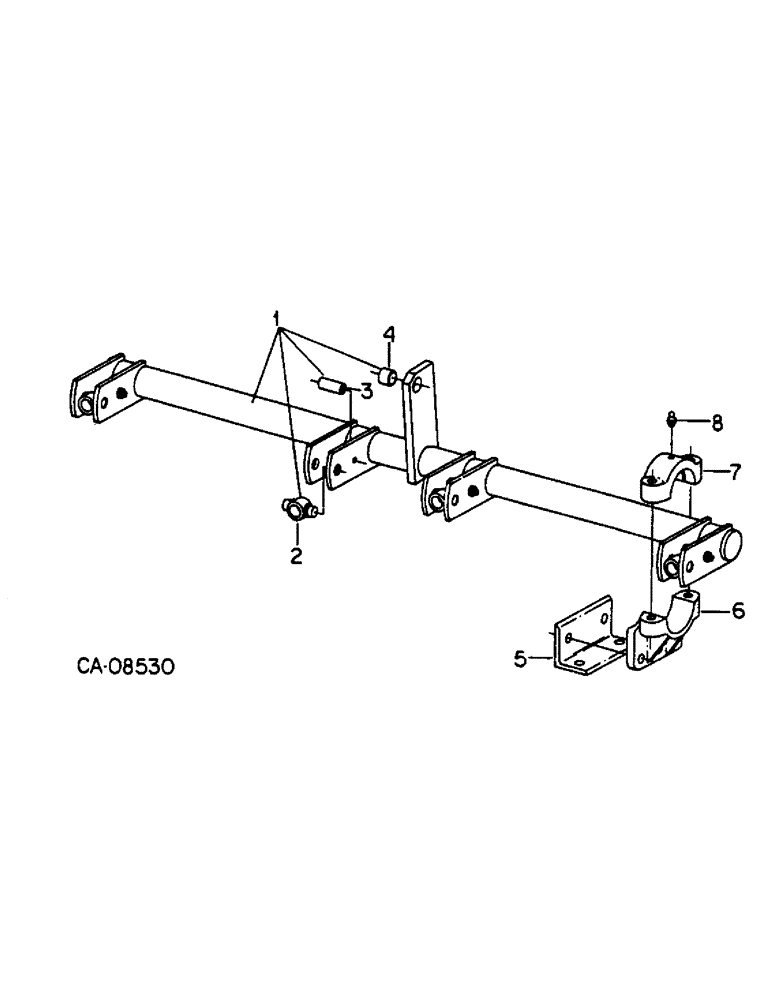

Запчасти Case IH 6500 (B-08) - ROCKSHAFT, DISK GANG DEPTH CONTROL

1

1256926C91

ROCKSHAFT

ASSY, disk gang, 11 foot

1шт.

1

1256923C91

ROCKSHAFT

ASSY, disk gang, 14 foot, consists of ref no. 2, 3 & 4

1шт.

2

468532R2

PIVOT

TRUNNION, lift rod

4шт.

Ref 2 - 458532R2 Trunnion - if dealer is looking for a

1шт.

"larger" trunnion - order 2700064-02...per quality comments...28OCT96...glc

1шт.

3

810804C2

SPACER

lift bar

4шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 type 5

4шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 lock

4шт.

4

112885C1

BUSHING,31.75mm ID x 38.1mm OD x 25.4mm L

1шт.

5

1256965C1

ANGLE

bearing support

2шт.

6

608312R2

BRACKET

rockshaft

4шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

5/8 x 3-1/2 type 5, bracket to center angles

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5, bracket to support angle

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

6шт.

7

1256960C1

BEARING CAP,78 mm ID x 44.5 mm

rockshaft bearing

4шт.

24879R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25528R1

NUT,5/8"-11, G8

5/8 PHC type 8

8шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 UNF lub

4шт.
