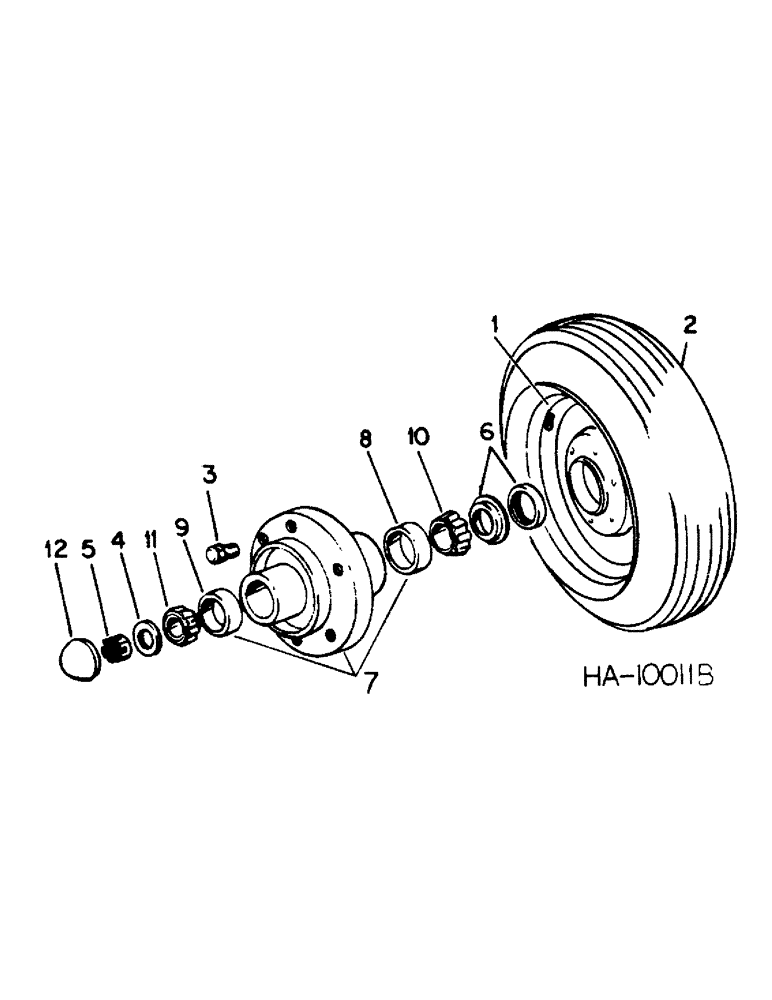

Запчасти Case IH 6500 (B-06) - WHEEL AND HUB

1

1277504C1

RIM

WHEEL, 15 x 10 lb

2шт.

2

TIRE, 11L-15 8 ply rated tubeless

2шт.

810769R1

VALVE ASSY, steel tubeless

2шт.

3

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel 1/2-20 x 7/8

12шт.

4

619373R1

WASHER

.906 x 2.000 x .164 pln

2шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex. jam

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

6

606556R91

OIL SEAL

SEAL W/SLEEVE

2шт.

7

606468R11

HUB

W/ Bearing cups

2шт.

8

663558R1

BEARING CUP

CUP, wheel hub inner bearing

2шт.

9

651817R1

BEARING CUP

CUP, wheel hub outer bearing

2шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

2шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hyb outer bearing

2шт.

12

663906R1

CAP

wheel hub

2шт.

811382C1

PACKAGE

tire valve guard

1шт.
