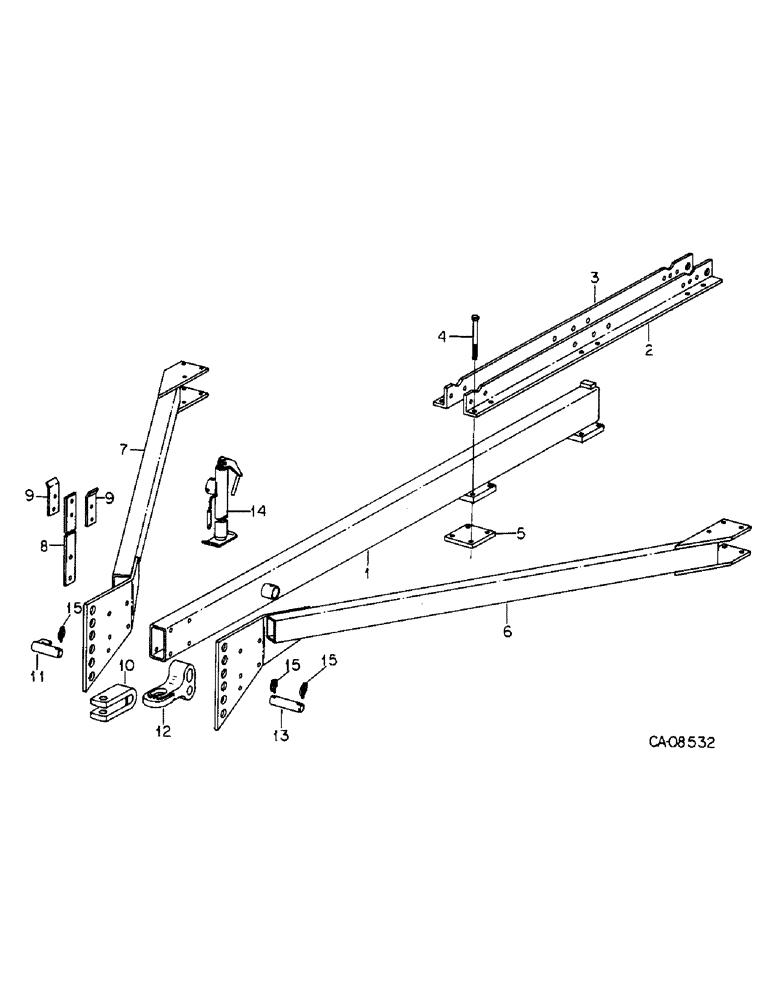

Запчасти Case IH 6500 (B-04) - HITCH

1

812313C1

TUBE,2878.4 mm Length

ASSY, hitch

1шт.

2

1256958C1

ANGLE

hitch attaching LH

1шт.

3

1256959C1

ANGLE

hitch attaching RH

1шт.

4

28118R1

BOLT,Hex, 5/8" - 11 x 12", Gr 5

5/8-11 x 12 hex-hd type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

812309C1

BAR

hitch angle rear support

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 x 6 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

1256985C1

BEAM

ASSY, hitch brace LH

1шт.

7

1265986C1

BEAM ASSY, hitch brace RH

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 x 6 hex-hd

6шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

3/4-10 x 1-3/4 hex-hd, Course Threads

4шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

BOLT, 3/4 x 5-1/2 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

6шт.

280954

NUT,3/4"-10, G5

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

21753R1

WASHER

.781 x 1.500 x .054

4шт.

8

810881C2

STRAP

BAR, hose support

1шт.

9

58644C1

HOLDER

BAR

2шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

2шт.

478848R1

NUT, 1/2-13 hex lock

2шт.

10

597324R1

CLEVIS

ASSY, hitch, regular

1шт.

11

1256992C1

PIN ASSY.

PIN ASSY, hitch clevis

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

12

810442C2

TOW BAR

TONGUE ASSY, heavy duty rigid hitch

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

13

1256991C1

PIN

tongue

2шт.

14

810363C91

JACK ASSY.

JACK ASSY, hitch

1шт.

15

392181R91

PIN

click

3шт.
